Ecus POWER_AVR SVR TRI 3/3 User Manual

Voltage regulator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User
Manuel
POWER_AVR

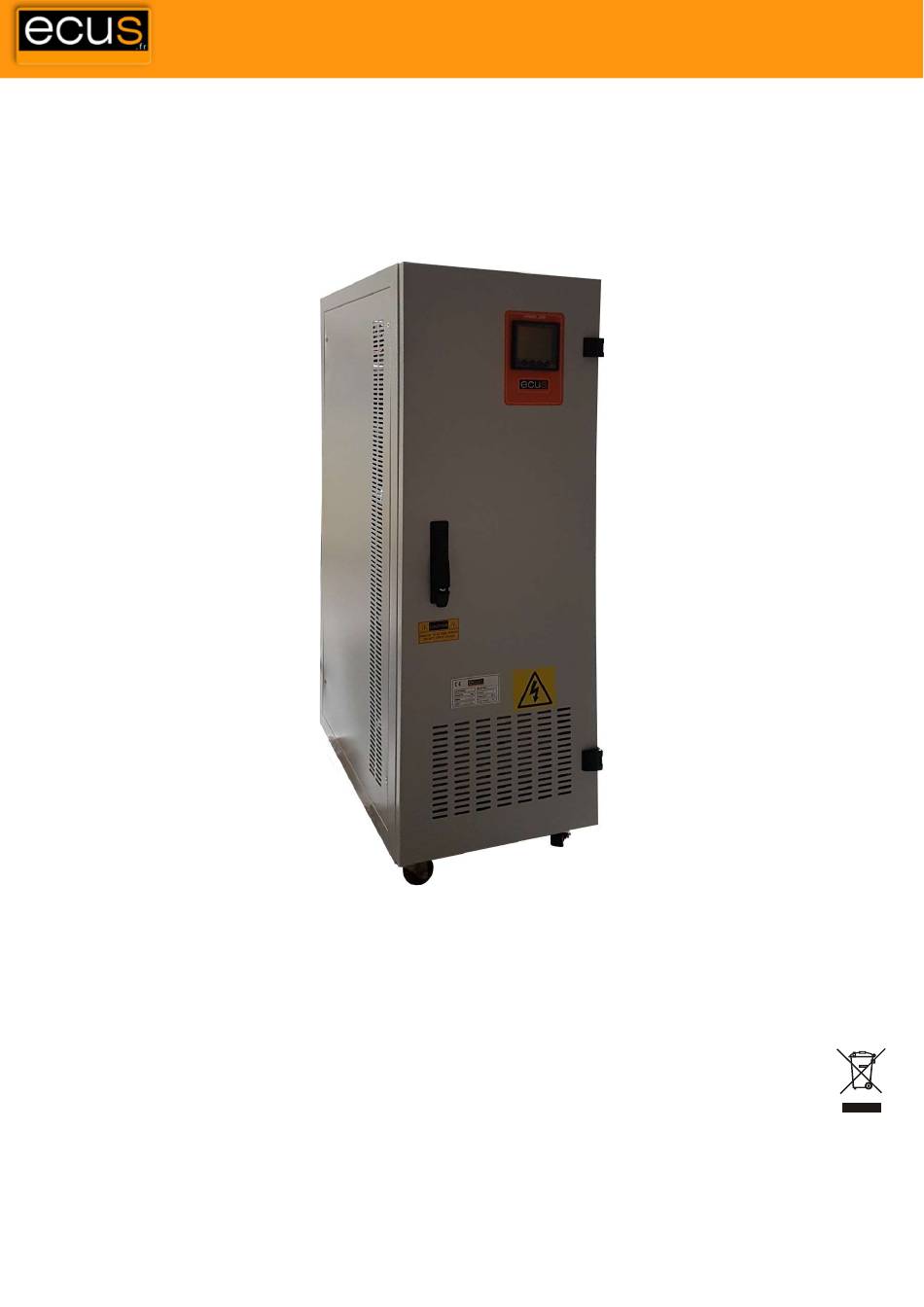

POWER_AVR SVR TRI 3/3 (three Phase)
6 to 150 KVA
To contact the technical service:
E-mail: ecus@ecus.fr
Phone: 0892049596
Download the latest version: http://www.ecus.fr/spec/ Manual_POWER_AVR-SVR-TRI-EN-6to150KVA.pdf
Hotline: Call your seller to find out how to benefit from this service
V1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWER_AVR SVR TRI 3/3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ecus POWER_AVR SVR TRI 3/3

  • Page 1 User Manuel POWER_AVR POWER_AVR SVR TRI 3/3 (three Phase) 6 to 150 KVA To contact the technical service: E-mail: ecus@ecus.fr Phone: 0892049596 Download the latest version: http://www.ecus.fr/spec/ Manual_POWER_AVR-SVR-TRI-EN-6to150KVA.pdf Hotline: Call your seller to find out how to benefit from this service...
  • Page 2 POWER_AVR STR Triphasé...
  • Page 3 User Manual IMPORTANT NOTICES! Dear user; This manual contains information about features of Voltage Regulator (AVR), installation, operation and the loads connected to the AVR, safety information, use of the AVR, operation principles, settings and measurements (calibrations), detection and troubleshooting. Read the instructions carefully before the installation.

  • Page 4: Meanings Of Symbols Used In The Manual

    POWER_AVR STR Triphasé MEANINGS OF SYMBOLS USED IN THE MANUAL This symbol points out where to pay attention mostly. This symbol shows instructions that may pose a life threatening hazard, such as an electric shock if not followed. This symbol indicates instructions that may cause injury to the user and / or damage to the AVR if not followed.

  • Page 5: Meanings Of Symbols On Avr

    User Manual MEANINGS OF SYMBOLS ON AVR PE: Protective Earth Electroshock Hazard (Black/Yellow) Includes warning instructions Recycle Heavy load...

  • Page 6: Table Of Contents

    POWER_AVR STR Triphasé Contents MEANINGS OF SYMBOLS USED IN THE MANUAL ......................4 MEANINGS OF SYMBOLS ON AVR............................ 5 1.SAFETY INSTRUCTIONS ..............................8 2.GENERAL INSTRUCTIONS .............................. 9 2.1.Safe Handling................................9 2.2.Location ................................10 2.3.Storage .................................. 11 3.UNPACKING AND ASSEMBLY ............................11 3.1.Unpacking ................................
  • Page 7 User Manual 5.11 .Current Settings : ..............................30 5.12 .Frequency Settings : .............................. 34 5.13 .RS485 Settings : ..............................36 5.14 .General Settings : ..............................36 5.15 .About : ................................... 37 5.16 .Enter Menu with Password : ..........................38 5.17 .Schanging Password : ............................38 5.17 .Password Enable / Disable : ..........................

  • Page 8: Safety Instructions

    POWER_AVR STR Triphasé 1.SAFETY INSTRUCTIONS Use the AVR where thereis restricted access. When AVR Line (Manual Bypass) is selected, device is deactivated and the load is Human Safety sourced from the mains and the output is energized. AVR must be connected to earth appropriately. The AVR should only be turned on by authorized service personnel.

  • Page 9: General Instructions

    User Manual 2.GENERAL INSTRUCTIONS 2.1.Safe Handling Be careful when handling loads. Do not carry heavy loads without help. Move wheeled devices on smooth and unobstructed surfaces. Do not use ramps that are more inclined at 10 ° angle. Follow the recommendations below for load weights. ...

  • Page 10: Location

    POWER_AVR STR Triphasé 2.2.Location This product complies with the restricted access and safety requirements specified in TS EN 60335-1 and TS EN 60335-1 / A11 safety standards. Users must meet the following requirements. İmage-1 Non-Suitable Operating Enviroments for AVR Harmful smoke, dust, abrasive dust. Moisture, steam, rainy/bad weather conditions Explosive powders and mixtures Excessive temperature changes...

  • Page 11: Storage

    User Manual 2.3.Storage  AVR can be stored at a temperature of -25 ° C to +60 ° C, far away from heaters and in a dry environment.  The relative humidity at ambient must be between 20%-95%.  Check the AVR power compliance of total load to be connected to AVR and line. ...

  • Page 12: Unpacking

    POWER_AVR STR Triphasé 3.1.Unpacking İmage-2 The cardboard box is removed from the top as held by the handles. 3.2.Assembly Procedures The installation complies with national installation regulations. • TS HD 384.4.42 S1: Electrical installation at the premises Part 4: Protection for safety Group 42: Protection against thermal effects •...

  • Page 13: Kva -150 Kva(1 Phase Input/1Phase Output)Front Panel View

    User Manual 3.3. 3 KVA -150 KVA(1 Phase Input/1Phase Output)Front Panel View İmage-3 Image-1 MCB(Miniature Circuit Breaker) Monitoring Fuses Thermostat Adjust Cam Switch(Line-Regulator)

  • Page 14: Kva - 150 Kva(3Phase Input/ 3 Phase Output) Rear Panel View

    POWER_AVR STR Triphasé 3.4. 3 KVA - 150 KVA(3Phase Input/ 3 Phase Output) Rear Panel View Image-4 Image-4 Input / Output / Neutral Connection Smart Fan...

  • Page 15: Kva -150 Kva (3 Phase Input/3 Phase Output) Connection Of Terminals

    User Manual 3.5. 3 KVA -150 KVA (3 Phase Input/3 Phase Output) Connection of Terminals Feedback Risk Firstly, separate the AVR from the circuit. Measure all terminals including the earth connection (PE) and check if there is dangerous voltage. Check the AVR’s input, output fuses and Mains Automatic Fuses are in the OFF position before connections of output.

  • Page 16: Earth Connection

    POWER_AVR STR Triphasé 3.5.1. Earth Connection For safety, the ground connection of the device must be done. Perform PE ground connections before connecting any other cable. AVR’s PE (Earth) must be connected to high quality Earth line (low resistance)The connection of the load must be done through the output Earthing screw.

  • Page 17: Avr (Automatic Voltage Regulator) Operations

    User Manual 4.AVR (AUTOMATIC VOLTAGE REGULATOR) OPERATIONS The AVR (Automatic Voltage Regulator) connected between the mains and the device protects the device / devices from line breakdowns, especially line outages. AVR Block Diagram Image-6 In case of drops or rises on main input voltage,the electronic control circuit senses the variation precisely and drives the servo motor quickly.

  • Page 18: Device Specifications And Basic Information

    POWER_AVR STR Triphasé 4.1. Device Specifications and Basic Information 4.1.1. Power Range 3 – 150 kVA three phase production. 4.1.2. Working Voltage Range Standart: %-25,%+15 Optional: %±20 %±40 380/400/415 V Three Phase ±30 % -35,%+15 %-30,%+20 %-35,%+15 4.1.3. Correction Speed 90 V/sec.

  • Page 19: Advantages Of Avr

    User Manual 4.2. Advantages of AVR  High quality and Long Life Solution  Safe and tested system  Silent Operation and High Efficiency  No Distortion at output  Stable and uninterruptible supply  Wide correction bandwidth, high accuracy 4.3 Application Fields ...

  • Page 20: Input/Output Display

    POWER_AVR STR Triphasé 5. .INPUT/OUTPUT DISPLAY The input / output display on the front panel shows the voltage value at the input and the voltage at the output of the device.(Image-7) Image-7 Image-7 It shows phase number belong to measurement values Showing values are minimum of measurement values Showing values are maximum of measurement values Showing values are average of measurement values...

  • Page 21: Connection Form

    User Manual 5.1 .Connection Form image-8 5.2 .Using The Buttons State of Measurement; Back to home screen. State of Menu; Exit menu. State of changing parameter; Not save chance and back to menu state. State of Error; Manual reset State of Measurement; Entry Menu. State of Menu; Entry state of changing parameter .

  • Page 22: Error Codes

    POWER_AVR STR Triphasé 5.3 .Error Codes : If device in any case of error cut off, relay will be open, backlight of display will be flashing and bottom right-hand corner of display will display ERR Code. 5.4 .Start-up of Device : Read the warnings before the device is energized.
  • Page 23 User Manual Figure-5: It shows the phase-neutral maximum voltage values. The figure-6 is displayed when you pressthe Down button Figure-6: It shows the phase-neutral mean voltage values. The figure-7 is displayed when you press the Down button. Figure-7: It shows the phase- phase voltage values. The figure-8 is displayed when you press the Down button.

  • Page 24: To Advance In Display Inventory

    POWER_AVR STR Triphasé Figure-19: It shows the mean apparent power values of each phase. The figure-20 is displayed when you press the Down button. Figure-20: It shows the apparent power demand values of each phase. The figure-21 is displayed when you press the Down button.

  • Page 25: Phase Sequence Protection Enable / Disable

    User Manual Step 1: Press Menu button and enter password to enter program list. The Voltage SET is displayed when you enter password and press the Menu Button.Press “Up”button until you see the General SET Step 2: Pr.54 is displayed when you press the “SET” button and press “Up” button. You will see Pr.57. It is using for setting demand Time.It is deleted from screen when you press the “SET”...

  • Page 26: Voltage Settings

    POWER_AVR STR Triphasé Figure-28: It uses for frequency settings. The figure-29 is displayed when you press the UP button. Figure-29: It uses for RS-485 settings. The figure-30 is displayed when you press the UP button. Figure-30: It uses for general settings. The figure-31 is displayed when you press the UP button.
  • Page 27 User Manual Pr.1 : High Voltage Protection Value: Determines the maximum operating voltage value of load. Default: 250V, Min: 1V, Max: 300V...
  • Page 28 POWER_AVR STR Triphasé Pr.2: High Voltage Protection Delay Time: Determines delay open time. Delay time for activating the output. If any voltage exceeds high voltage protect value, Relay output switches open at the end of delay time. Default: 3sec, Min: 1sec, Max: 10000sec. Pr.3: High Voltage Protection Reset Time: Determines delay close time.
  • Page 29 User Manual Default: Enable, Min: Disable, Max: Enable Pr.11: Voltage Asymmetry Protection Value : Determines the controlled voltage asymmetry. Asymmetry Ratio Adjusment: Device calculates a value by dividing difference between highest and lowest phase value to highest phase value. Asymmetry Ratio = [(Highest Voltage – Lowest Voltage) / Highest Voltage ] x 100 Default: %20, Min: %5, Max: %30 Pr.12: Voltage Asymmetry Protection Delay time: Determines delay open time.

  • Page 30: Current Settings

    POWER_AVR STR Triphasé 5.11 .Current Settings :...
  • Page 31 User Manual...
  • Page 32 POWER_AVR STR Triphasé Pr.20: High Current Protection Value: Determines the maximum operating current value of load. Default: 3.0A, Min: 0.1A, Max: 5.0A Pr.21: High Current Protection Delay Time: Determines delay open time. Delay time for activating the output. If any current exceeds high current protect value, Relay output switches open at the end of delay time.
  • Page 33 User Manual Pr.30: Current Asymmetry Protection Value: Determines the controlled current asymmetry. Asymmetry Ratio Adjusment: Device calculates a value by dividing difference between highest and lowest phase value to highest phase value. Default: %30, Min: %5, Max: %50 Pr.31: Current Asymmetry Protection Delay Time : Determines delay open time. Delay time for activating the output.

  • Page 34: Frequency Settings

    POWER_AVR STR Triphasé Pr.40: Demurrage Protection Factor: Demurrage current is 3-5 times more than normal operation current consumption. Ex: High current set value is :5A, demurrage protection factor is :1.5. Max Demurrage current is 5x1.5=7.5 A so device will let motor use 35A for start up. Default: 3.0, Min: 1.0, Max: 10.0.
  • Page 35 User Manual Pr.42: High Frequency Protection Delay Time: Determines delay open time. Delay time for activating the output. If any frequency exceeds high frequency protect value, Relay output switches open at the end of delay time. Default: 3sec, Min: 1sec, Max: 10000sec. Pr.43: High Frequency Protection Reset Time: Determines delay close time.

  • Page 36: Rs485 Settings

    POWER_AVR STR Triphasé 5.13 .RS485 Settings : Press Menu button and enter password to enter program list. The figure-26(Voltage SET) is displayed when you enter password and press the Menu button. The figure-27(Current SET) is displayed when you press the up button. The figure-28(Frequency SET) is displayed when you press the up button . (RS485 SET) is displayed when you press the up button.

  • Page 37: About

    User Manual Pr.54: Password Change: This menu is used for changing the user password. Default: 0000, Min: 0000, Max: 9999 Pr.55: Password Protection Enable/Disable: This menu is used for activating the user password. After the user password is activated for entering to the menus; if the Menu button is pressed, while the instant values are observed, user password is required.

  • Page 38: Enter Menu With Password

    POWER_AVR STR Triphasé The figure-30(General SET) is displayed when you press the up button. The figure-31(About) is displayed when you press the up button. You enter “About” when you press Menu button. If you enter “About” menu, the figure - 91(Pr.61) displayed. When you press the up button to see the other parameter on the display, the next data is displayed.

  • Page 39: Password Enable / Disable

    User Manual 5.17 .Password Enable / Disable : Step 1: Press Menu button and enter password to enter program list. The Voltage SET is displayed when you enter password and press the Menu button.Press “Up”button until you see the General SET Step 2: Pr.54 is displayed when you press the “SET”...

  • Page 40: High Current Protection Value Change

    POWER_AVR STR Triphasé 5.20 .High Current Protection Value Change : Step 1: Press Menu button and enter password to enter program list. The Voltage SET is displayed when you enter password and press the Menu button. Press “Up”button until you see the Current SET Step 2: Pr.20 is displayed when you press the “SET”...

  • Page 41: Quick Setup

    User Manual 5.23 .Quick Setup : This section describes some of the most commonly used parameters. You can adjust your system by apply them. These parameters are High/Low Voltage Protection value and hysteresis, Voltage Asymmetry protection value, High/Low Current Protection value and hysteresis, Current transformer ratio, demurrage factor and time.
  • Page 42 POWER_AVR STR Triphasé Current SET menu is include set of high/low current protection,current transforme ratio and demurrage setings. Pr36 It is using for setting current transformer ratio. You can increase/decrease value to use Up/Down Button. You can use “SET” button to save.

  • Page 43: Avr Internal Structure

    User Manual 6.1. AVR Internal Structure Image -10 Resim-10 Current Transformer Surge Arrester(Optional) Input Terminal Neutral Output Connection Contactor Variac Transformer Booster Transformer Selectable Switch(By Pass) Miniature Circuit Breaker(MCB) Limit Switch DC Motor...

  • Page 44: Control Board And Assembly

    POWER_AVR STR Triphasé 6.2. Control Board and Assembly Image-11 Image-11 Motor Limit Switch(Common Pin) Limit Switch-1 Limit Switch-2 Output Voltage Accuracy Setting Output Voltage Setting Circuit Transformer Connection Pins...
  • Page 45 User Manual Image-12 Image-13...

  • Page 46: Possible Malfunctions And Troubleshootings

    POWER_AVR STR Triphasé 6.3. Possible Malfunctions and Troubleshootings Malfunction Possible Causes Troubleshooting If voltmeter Voltmeter If voltmeter is digital, please check the socket. retrieves Malfunctioned İf it is analogue, please replace with new one incorrectly Control Board Check the neutral connections. If problem Malfunctioned continues, please contact with technical service...

  • Page 47: Technical Specifications

    User Manual 7. TECHNICAL SPECIFICATIONS MODEL 33003 33006 33010 33015 33022 3303 33045 33060 33075 3310 33120 33150 Power(KVA) 10,5 22,5 Input of Regulator Input Voltage -25/+15% Standart(Other input bandwith are optional) Correction Range Working Frequency 47…65 Hz Line Input Protection Low Voltage and Over Voltage Protection Output of Regulator Output Voltage...

  • Page 48: Warranty

    POWER_AVR STR Triphasé 8. WARRANTY 8.1. Warranty Conditions 1.AVR’s warranty period is 2 years from the date of delivery of product against defects in components, workmanship and production, if the product is used in the compliance with shown in the user manual. 2.

  • Page 49: Device And Manufacturer's Information

    User Manual 8.3. Device and Manufacturer’s Information Manufacturer Name: Address: Tel / Fax e-mail Sign&Stamp Device Type Regulator Brand Model Label and Serial No Delivery Time/Place Warranty Min. Repair Period Seller Company Name Address Tel/Fax Invoice Date&No Sign&Stamp...

  • Page 51: Three Phase Electrical Connection Diagram

    User Manuel Three Phase Electrical Connection Diagram...
  • Page 52 POWER_AVR STR Triphasé...

  • Page 53: Notes

    User Manuel NOTES...

  • Page 55: Product Label

    User Manuel Product Label Image-9 Image-9 Logo Ecus No of Phases(1Ph/3Ph) Power(KVA) Input Working Range(V) Output (V) Serial No Current(A) Frequency(Hz) Date of Production...

  • Page 57: Product Dimensions

    User Manuel Product Dimensions All measures are in mm Güç(KVA) 1170 1170 10,5 1170 1170 22,5 1170 1170 1170 1400 1400 1400 1650 1650...
