Summary of Contents for King Industrial MA-1020

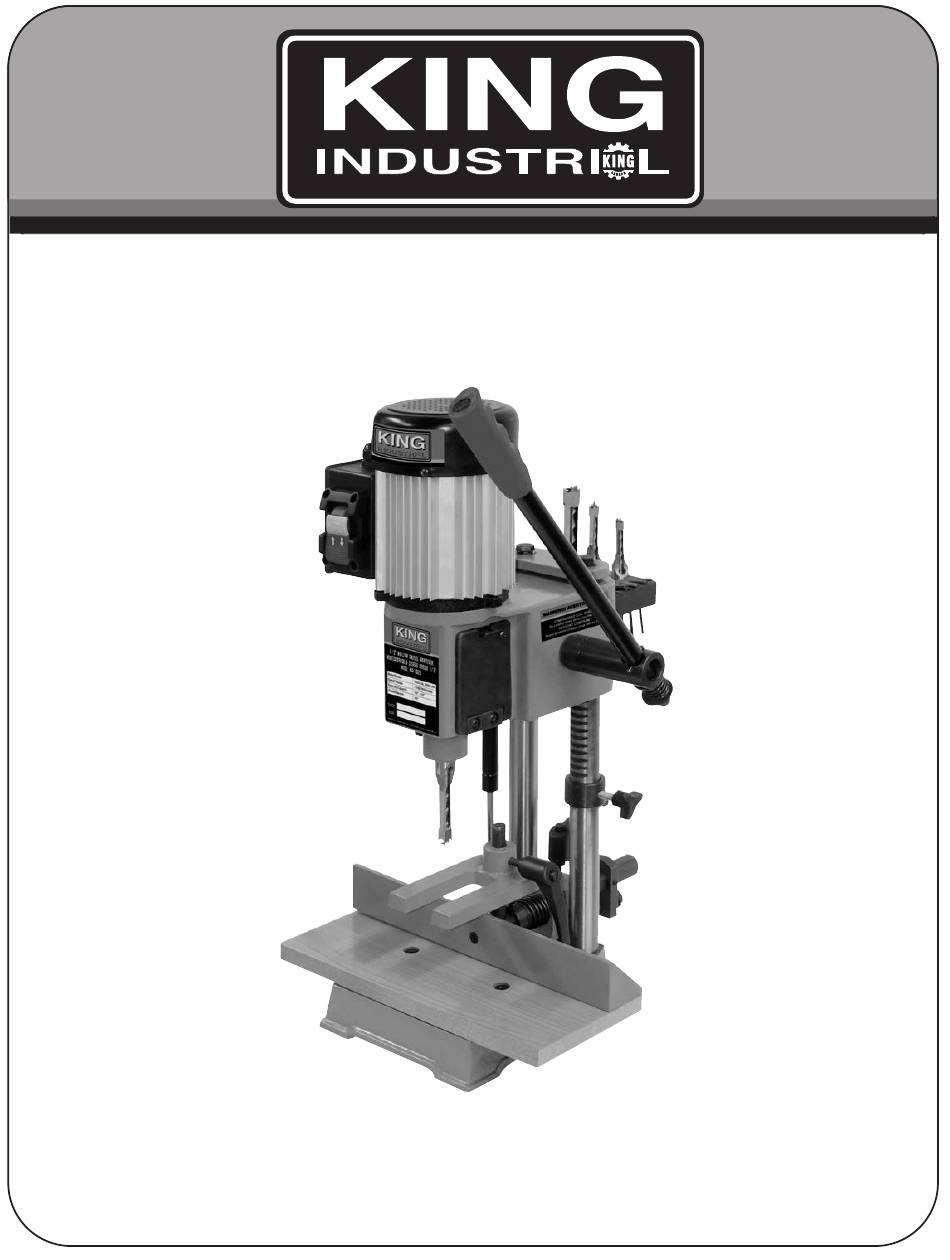

- Page 1 1/2” HOLLOW CHISEL MORTISER WITH 4 pC. CHISEL SET 09/2014 INSTRUCTION MANUAL MODEL: MA-1020 COPYRIGHT © 2014 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Warranty Information
WARRANTY INFORMATION 2-YEAR kINg CANADA TOOLS LIMITED WARRANTY OFFERS A 2-YEAR LIMITED WARRANTY FOR THIS HOLLOW CHISEL MORTISER FOR COMMERCIAL USE. pROOF OF pURCHASE Please keep your dated proof of purchase for warranty and servicing purposes. REpLACEMENT pARTS Replacement parts for this product are available at our authorized King Canada service centers across Canada. LIMITED TOOL WARRANTY King Canada makes every effort to ensure that this product meets high quality and durability standards. - Page 3 gENERAL & SpECIFIC SAFETY RULES 1. kNOW YOUR TOOL footwear is recommended. Wear protective hair covering to contain Read and understand the owners manual and labels affixed to the long hair. Roll up long sleeves above the elbows. 12. ALWAYS WEAR SAFETY gLASSES. tool.
-
Page 4: Electrical Information
ELECTRICAL INFORMATION WARNINg! ALL ELECTRICAL CONNECTIONS MUST BE DONE BY A QUALIFIED ELECTRICIAN. FAILURE TO COMPLY MAY RESULT IN SE- RIOUS INJURY! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE MACHINE DISCONNECTED FROM THE POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! pOWER SUppLY pROpERLY gROUNDED OUTLET WARNINg: YOUR MORTISER MUST BE CONNECTED TO A 110V-120V,... - Page 5 16-Chuck key. stop which limits the downward travel of the head. 8-Chuck Cover. Open this cover or the other one on the opposite side to gain access to the chuck. MODEL MA-1020 1/4” - 1/2” Chisel capacity Chuck capacity 1/2”...
- Page 6 ASSEMbLY UNpACkINg AND CLEANINg Carefully unpack the machine and all loose items from the shipping carton. Remove the protective coating from all unpainted surfaces. This coating may be removed with a soft cloth moistened with kerosene. Do not use gasoline, lacquer thinner or acetone for this purpose.
-
Page 7: Assembly And Operation
ASSEMbLY & OpERATION ASSEMbLY Chisel & hex. key holder assembly Assemble the chisel & hex. key holder (A) Fig.8 to the rear of the head using two screws (B). Store your chisels and hex. keys in this holder when they are not in use. Chisel and bit Installation WARNINg: Make sure switch is in the OFF position and power cord is unplugged be- fore performing checks, adjustments, or setup procedures. -
Page 8: Operation And Maintenance
OpERATION & MAINTENANCE OpERATION Raising and Lowering the Head The head (A) Fig.11 is raised and lowered by means of the lever (B). For maximum leverage during the mortising operation the lever can be repositioned by pulling out the hub (C) of the lever assembly and repositioning the hub on the pinion shaft (D). Depth Stop A depth stop (E) Fig.11 is provided to limit the depth of the chisel (F).
