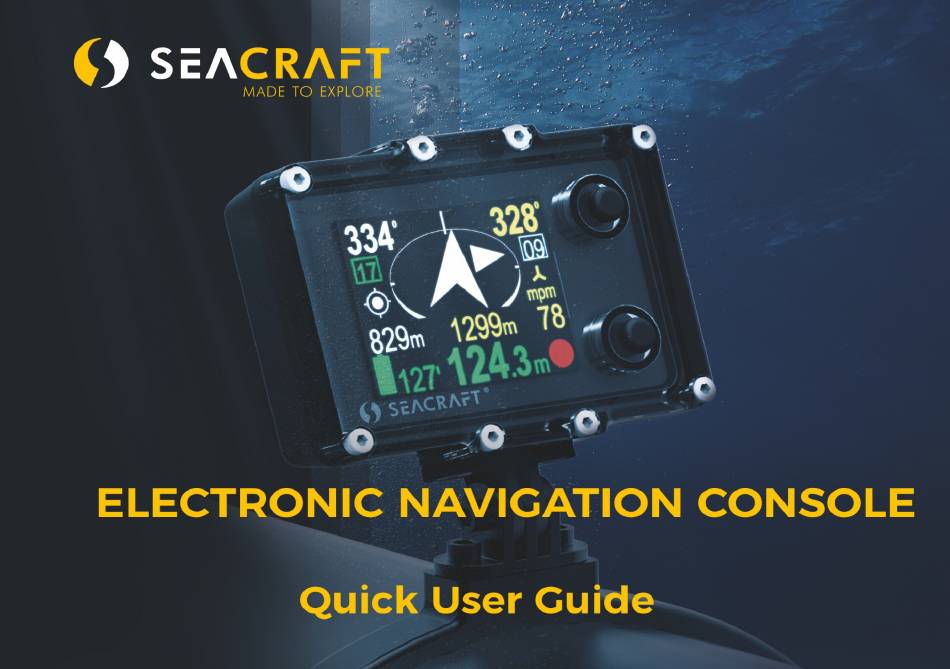

Marine Tech Seacraft ENC II Quick User Manual

Electronic navigation console
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Seacraft ENC II and is the answer not in the manual?

Questions and answers

Summary of Contents for Marine Tech Seacraft ENC II

  • Page 2 It is the user‘s responsibility to determine whether there have been any such updates or amendments. Marine Tech nor any of their directors, officers, employees or agents shall be liable in contract, tort or in any other manner whatsoever to any person for any loss, damage, injury, liability, cost or expense of any nature, including without limitation incidental, special, direct or consequential damages arising out of or in connection with the use of the manual.
  • Page 3 This manual is no substitute for a proper training in how to dive and navigate under water, with or without use of ENC2. Should you have any questions or comments regarding this manual, please contact: Manufacturer: MARINE TECH SA ul. Żwirki i Wigury 1 7 38-400 Krosno , Poland Email: info@seacraft.eu Web: www.seacraft.eu...

  • Page 4: Table Of Contents

    Table of Contents Technical specifications ......................6 P recautions ..........................7 M echanical construction ......................8 C ontrol ............................. 9 M ain screen layout ........................11 6. Additional inform ation screen (next to main) ..............16 D estination parameters – setting and chang ing ............20 M EN U screen ........................
  • Page 5 20 . U nits ............................39 C ompass ..........................4 0 C lear data ..........................4 4 F actory reset ........................4 4 24 . Exit ............................4 4 G uidelines for attaching the EN C to D P Vs ..............4 5 Troubleshooting ........................4 7 B efore each dive …...

  • Page 6: Technical Specifications

    1 . Technical specifications Model Power source ENC II Built-in Li-ion 3,7V battery Type ENC v.2 Battery capacity Maximum depth Typical working time 300 m 20-35 h Tested depth 350 m Average charge time < 2 h Depth of start and stop of Optional: 0.5, 1 or 1 .6m Working temperature +1 0 …...

  • Page 7: Precautions

    2. Precautions This manual is suitable for the navigation device with software version 1 .5.04 to 1 .5.09. the Software version number is shown under MENU, when the battery voltage is displayed (OFF option selected). WARNING ! This device may have some bugs in the software, which we did not find yet. You should never risk your life using this device as sole advisor.

  • Page 8: Mechanical Construction

    3. Mechanical construction Fig. 1 . Description of elements. 1 . Universal mounting – top side 2. Ambient light sensor (do not cover) 3. Additional LED diode (red color) 4. Screen / display 5. Top button (NEXT) 6. Bottom button (SET, REC, HOLD) 7.

  • Page 9: Control

    4. Control Button functions (depending on actual screen content): Top button (5) – NEXT screen, NEXT item, CANCEL change, BACK Bottom button (6) – SET, change value, enter changing item, switch REC/HOLD Note On most screens, a small graphical hint is displayed in top and bottom right corner of the display. This hint is connected with the actual button function.
  • Page 10 First steps - switching on and off: Switching on the device – press both buttons at the same time. The device will also switch on when immersed in water min. 0.3 m (1 ft) deep. Switching off the device – You have to stop recording first. Then go to MENU (from main screen –press the top button 3 times, then press the bottom button once).

  • Page 11: Main Screen Layout

    5. Main screen layout After power on, the device display will show this content:...
  • Page 12 Screen elements: 1 . Course to planned destination. If no destination is Present marker number. For using markers, please see programmed, this field is blank. next chapter. 2. Present memory slot number. If you start recording, Destination direction arrow. The tip of the arrow is always the dive data will be saved in the device memory with pointing to the planned destination.
  • Page 13 Battery indicator Icon Charge on % Time left Icon Charge in % Time left 85-1 00 20-25h 28-45 5-1 0h 68-84 1 7-20h 1 2-27 1 -5h 46-67 1 0-1 7h 1 -1 1 <1 h Caution: The value ‘Time left’ is approximate!
  • Page 14 Navigation arrow colors: White – Normal operation with or without programmed destination Green – Destination is set and distance to it is less than 1 0 meters Orange – The diver is returning to the start point (distance >1 0 meters) GPS indicator: Icon Meaning...
  • Page 15 Depth indicator colors: Color Meaning More info Vertical speed (up or down) is less No special actions required from diver. than 9m/min (29.5 ft/min) Vertical speed (up or down) is equal There is a noticeable depth change. or greater than 9m/min (29.5 ft/min) The user should be aware, that ascending or Vertical speed (up or down) is equal descending at this speed may have negative health...

  • Page 16: Additional Information Screen (Next To Main)

    6. Additional information screen (next to main) After pressing the top button on the main navigation screen, the display content changes like shown above. On the left side of the screen, all present information are shown. On the right side there is a list with all available options.
  • Page 17 Buttons role: Top button – Select the NEXT item. After 3 press, you will return to the main navigation screen. Bottom button – ENTER to activate the selected item. Note: If the destination parameters are cleared (not set), this screen looks like this:...
  • Page 18 If the RETURN item is selected, the screen looks like this: 1 - The course you need to follow in order to return to the 5 - Top button role – go to next (lower) start point item 2 - The time required to return to the start point (approx.) 6 - Currently selected item 3 - The distance from current location to the start point 7 - Bottom button role –...
  • Page 19 If the MENU item is selected, the screen looks like this: 1 - Internal date (DD.MM.YY) 2 - Internal time (hh:mm), in 24-hour system 3 - Water temperature 4 - Operation hint – when you press the lower button, other functions will be shown. 5 - Stopwatch The description regarding the right display side is the same as on previous picture.

  • Page 20: Destination Parameters - Setting And Changing

    7. Destination parameters – setting and changing When you activate the DESTIN(ation) option on the additional information screen (see fig. 1 on p. 6), the device will show the current destination parameters (if set) or it will suggest new ones, as shown in the following picture: 1 - Current route number in memory / total routes in memory 2 - Azimuth –...
  • Page 21 If you press the lower button (ENTER) when azimuth is selected, the display will change like this: You may now rotate the device, in order to set the desired heading. Then simply press the lower button (ENTER), if the value is appropriate. You may also press the upper button now. This will allow you to set the desired azimuth manually digit by digit (use the lower button to change the value).
  • Page 22 Next, set the distance – you may do it when the second line is highlighted: Distance value is changed also digit by digit. Pressing the top button switches to the next position, the bottom button changes the value 0 > 1 > 2 > … > 9 > 0. Note: The minimal allowed distance is 1 0m (or 0.01 mile).
  • Page 23 When both parameters (azimuth and distance) are set, pressing the top button will bring up the command line. You may choose from two commands, using the top button: NAVIGATE – Apply values and switch to main screen (with destination) CLEAR DESTIN(ation) – Clear all values and switch to main screen (without destination) Note: - The DESTINATION, once set, is held in memory until cleared or changed (power off will not clear it).

  • Page 24: Menu Screen

    8. MENU screen If you press the lower button (ENTER) when the MENU item is highlighted on the additional information screen (see fig. 1 on p. 6), you may choose between 4 commands: OFF – Allows you to switch off the device. The left part of the screen shows information about the present battery charge.
  • Page 25 GRAPH – Allows you to show the position and depth graphs on the device screen. More info about graphs can be found in chapter 9 and 1 0. On the left side of the screen, the device shows 2 numbers: Current routes in memory / maximum routes in memory.
  • Page 26 SETUP – This allows you to show and change all internal configuration parameters. More about this function can be found in chapter 1 2. On the left side on the screen, the most important settings are shown in short form (to avoid unnecessary activation of the configuration just to check it).

  • Page 27: Depth Profile Graph

    9. Depth profile graph If you press the lower button (ENTER), when the GRAPH item on the MENU screen is highlighted, you will be redirected to the simple graph browser. The first available graph is called ‘depth profile’ and contains a representation of dive depth vs time, as shown below: 1 - Top button role (now –...

  • Page 28: Swim Route G Raph

    1 0. Swim route graph This screen presents the changes in the diver location projected on a flat surface (like on a map). The route start point is always positioned in the screen center. The route end point will be shown as a green dot, but only on the present route. Near the right edge of the screen, you will find some information elements: 1 - Top button role (now –...

  • Page 29: Tim Er / Stopwatch

    1 1 . TIMER / stopwatch If you press the lower button (ENTER) when the TIMER item on the MENU screen is highlighted, you will be redirected to the TIMER/STOPWATCH control screen: 1 - EXIT – current selected command; if you press lower button (ENTER), you will return to main navigation screen 2 - Timer START –...

  • Page 30: D Evice Config Uration (Setu P )

    1 2. Device configuration (SETUP) If you press the lower button (ENTER) when the SETUP item on the MENU screen is highlighted, you will be redirected to the SETUP menu. Device settings are organized in 2 screens. The selected function is highlighted. The top button (NEXT) will switch the selected function to the next one (below).

  • Page 31: P Ressure/Salinity

    1 4. Pressure/salinity Shows the current pressure in milibar (green color). 1 PSI ≈ 68,95 milibar. When no pressure is shown, the pressure sensor is defective. The lower line shows the pressure correction (white color) – this value will be added to the raw value of the measured pressure.

  • Page 32: L Og /Speed

    1 5. Log/speed This navigation console can work with an external sensor (speed sensor) or without it (inertial mode). This option can be used to switch between these two modes. The field ‘Calc. distance from’ may switch between ‘External log’ and ‘Const. speed’. The first value needs an external speed sensor (log) to be connected.
  • Page 33 If you want to recalibrate the sensor, set the chosen distance in meters (reference distance) by pressing the lower button and changing the value digit by digit. Then, you will be guided to the next item, which shows how many pulses fall in a distance of 1 00m.

  • Page 34: L Og /Speed Calibration

    When ‘Calc. distance from’’ is set to ‘Const. speed’’, a constant average speed is chosen to calculate the position (on the main screen, no log symbol is visible). The option ‘Calibrate’ will allow you to set a constant average speed used to calculate the current position, the return time and the target time.
  • Page 35 When the external sensor is used and connected to the device (Calc. distance from = External log), the calibration is used to get the best possible distance measurements. The sensor principle of operation is based on pulse counting. The sensor calibration factor equals the number of pulses which the speed sensor will produce while swimming a 1 00m distance.

  • Page 36: G P S

    1 7. GPS This menu option is for information purposes only. When selected, the navigation screen will show the GPS status information as described below: Valid: Y/N – Displays, if GPS information is available now Sat.cnt: 0…1 5 – Number of satellites used to calculate the position Latt.

  • Page 37: Time/Date

    After power on, first GPS readings should be available after 20-60 seconds. The GPS antenna is located between the buttons, so you should not cover this point with any objects. You may tilt the navigation console as far as possible (screen upwards) for a while, to achieve better/quicker GPS readings, but this is not necessary in most cases.

  • Page 38: O Ther Setting S

    1 9. Other settings Miscellaneous other settings are available as a separate screen: Backlight – [1 ,2,3,4,5,auto] – Changes the display backlight intensity. Value 1 means the constant lowest brightness (about 20%), value 5 means the constant maximum brightness, value ‘auto’ means that the backlight will be auto adjusted using the ambient light sensor.

  • Page 39: Units

    20. Units Allows you to choose the units of the values presented on the screen: Temperat.(ure) – Can be °C (Celsius) or °F (Fahrenheit) Depth – Can be meters or feet Speed – Can be m/min (meters per minute) or knots (nautical miles per hour) Distance –...

  • Page 40: Compass

    21 . Compass Allows to calibrate the magnetometer (compass sensor) and to set the magnetic declination and deviation. Calibration – This option is used for basic magnetometer calibration. You should use this function, when the compass direction shown on this device is improper. This is usually needed when the magnetic properties of the environment have changed.
  • Page 41 Caution: The new calibration can be worse than the existing. If you are not happy with the results, calibrate the compass again or restore the factory settings. After the basic calibration, you should set declination and deviation to 0 (zero), clear the precision calibration (see below), and set it again. Geometry –...
  • Page 42 Current – Raw heading from magnetometer, without correction. Stored – Stored value for this step. The lower button will store the Current value as Stored, each time you press it. The upper button will guide you to the next step. On the last screen you can check, if this calibration improved the heading display. This screen is named ‘Accuracy test’...
  • Page 43 If the corrected values are better than the measured values, press the lower button (ENTER) to store the results. If you press the upper button, no changes will be stored. Caution: Beware of placing another compass near this device when performing this calibration, because it might affect the measurement and affects the calibration procedure.

  • Page 44: Clear Data

    22. Clear data Clears all records from the internal memory. The user will be asked, if he really wants to perform this operation. It is recommended to power off and on the device after using this feature. 23. Factory reset After using this option, all settings will be restored to factory values, and all other data will be lost.

  • Page 45: G Uidelines For Attaching The En C To D P

    25. Guidelines for attaching the ENC to DPVs When using the navigation console with any DPV, you should carefully choose the mounting point for the device. An unfavorable placement may cause magnetic interferences from your vehicle elements (battery, engine) to the ENC compass sensor.
  • Page 46 LIMITATIONS: ENC device should be placed at least 0,2m (7,9”) from any element containing ferromagnetic material (engine, battery), permanent magnets (engine, vehicle handles, speed sensor) or electrical wires connecting the battery with the motor. If this rule is violated, compass indications may be incorrect. Compass indications may be less stable when ENC tilt exceeds 35°...

  • Page 47: Troubleshooting

    26. Troubleshooting Symptom Cause Solution Start charging battery for at least 30 minutes before attempt to switch on Excessive battery discharge. the device. After few minutes, the Device cannot be switched on. red led the will start blinking. Display is blank and no other reactions is observed.
  • Page 48 The device is not switching on Wash the device using a mild stream Pressure sensor gap filled with dirt or automatically when immersed in of warm fresh water, until the mud. water. problem is gone. Disconnect the sensor plug, wash Sensor connector misfit, broken or and/or clean the connector, connect rusted.

  • Page 49: Before Each Dive

    27. Before each dive … Make sure that battery is charged enough. Power on device and check all important settings. In order to connect the log to the device, check the state of the plug and socket, clean any impurities, check the o- rings, apply a delicate layer of silicone grease and gently but firmly tighten.
  • Page 52 MARINE TECH SA 38-400 Krosno, ul. Żwirki i Wigury 1 7, POLAND info@seacraft.eu www.seacraft.eu...
