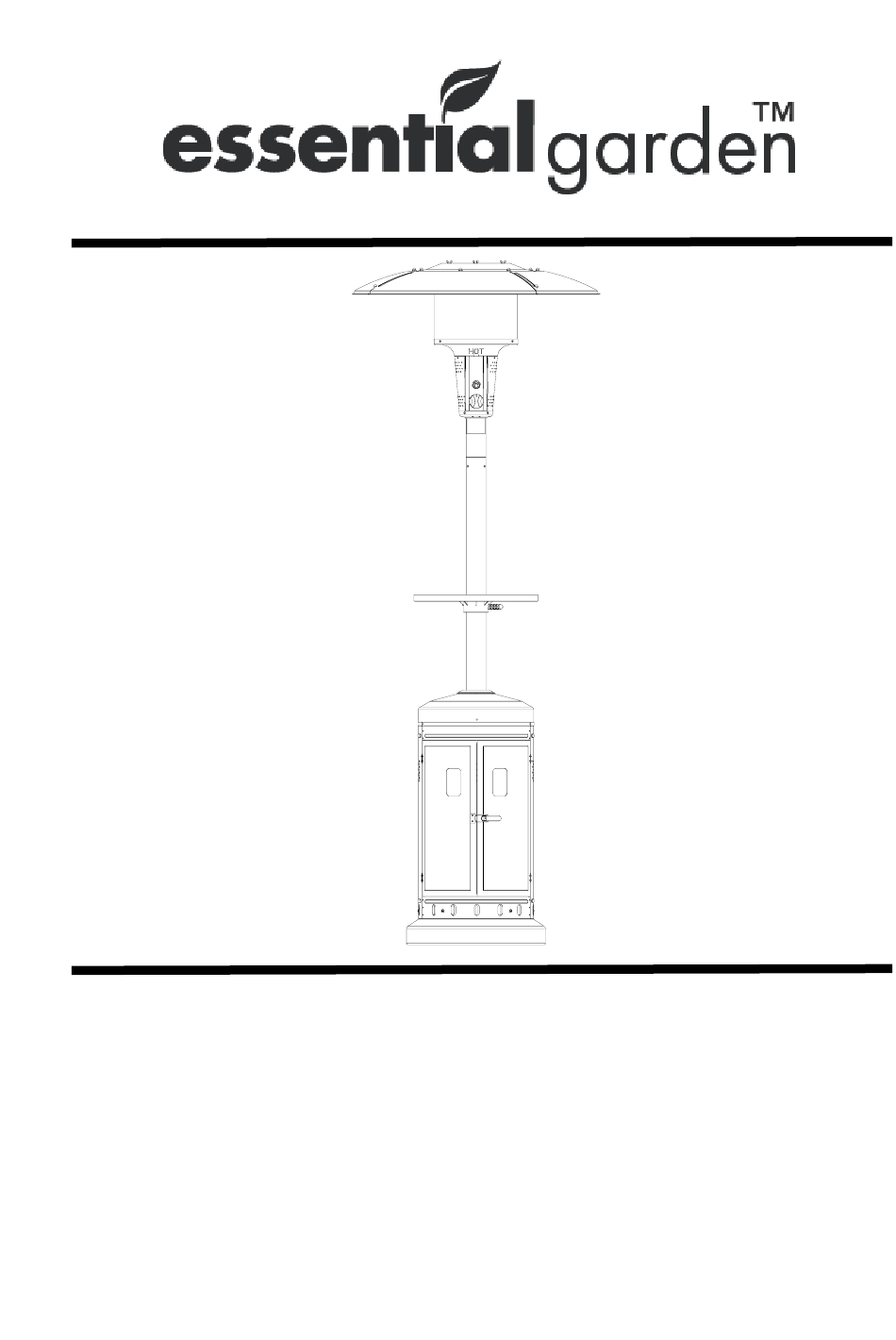

- Page 1 USE AND CARE GUIDE ESSENTIAL GARDEN PATIO HEATER Product Code: 640-08477458-7 UPC Code: 6937419204603 Date of Purchase: _____/ _____/ _____...
- Page 2 WARNING WARNING For outdoor use only. 1. Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury ,or death. 2. Read the installation, operation, and DANGER maintenance instructions thoroughly before If you smell gas: installing or servicing this equipment. 1.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Product Specifications………………………………………………………………..3 Safety Information……………………………………………………………….…...4 Package Contents……………………………………………………………..….…..7 Replacement parts list………………………………………………………………..8 Hardware Contents………………………………………………………….….…..9 Preparation………………………………………………………………….…..9 Assembly Instructions……………………………………………………………..9 Operating Instructions…………….………………………………………..…….….15 Care and Maintenance …………………………………………………..……….…16 Troubleshooting………………………………………………………..……………..18 Warranty………………………………………………………………..……….…….18 PRODUCT SPECIFICATIONS Certification Height Overall 86.60 inches Reflector Diameter 31.50 inches Rated Heat Input 40,000 BTU/HR Fuel Propane-LP Gas Supply... -
Page 4: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. If you have any questions regarding the product, please call customer service at: 1-855-CHANT-US (1-855-242-6887) from 8:00 am to 5:00 pm Eastern time, Monday to Friday. 1. - Page 5 SAFETY INFORMATION Installation and repair should be done by qualified service person, the heater should be inspected before use and at least annually by a qualified service person. More frequent cleaning may be required as necessary. It is imperative that the control compartment, burners and circulating air passageways of the heater to kept clean.
- Page 6 SAFETY INFORMATION Place the dust cap tightly on the cylinder valve outlet whenever the cylinder is not in use. Install only the type of dust cap on the cylinder valve that is provided with the cylinder valve. Other types of caps or plugs may result in a propane leak. Inspect the visible portion of the hose before each use of the appliance.
-
Page 7: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Top Dome Pole Assembly KD Dome Cylinder Assembly Burner Assembly Wheel Assembly Table Assembly Base Table Support Assembly Deck Ring... -
Page 8: Replacement Parts List
REPLACEMENT PARTS LIST PART PART NO. DESCRIPTION CH182001 Top Dome CH182002 KD Dome CH182003 Burner Assembly Burner Chamber CH182004 Assembly CH182005 Knob CH182006 Igniter CH182007 Thermocouple CH182008 Ignition Pin CH182009 Tilt Switch CH182010 Table Assembly Table Support CH182011 Assembly CH182012 Deck Ring CH182013 Pole Assembly... -
Page 9: Hardware Contents
HARDWARE CONTENTS AA. M8*15 mm BB. M5*8 mm CC.M8 Nut DD. AAA EE. M6*10 FF. M5*8 mm Bolt Black Bolt QTY: 2 pcs Battery mm Bolt Silver Bolt QTY: 2 pcs QTY: 8 pcs QTY: 1pc QTY: 4 pcs QTY: 12 pcs GG. - Page 10 Fig.2 2, Turn the base (J) right-side up, then attach cylinder assembly (H) using M5 x 8 mm black bolts (BB) Door though preassembled L-pins. Note: The door on the cylinder assembly (H) should be on the opposite side of the wheel assembly (I).
- Page 11 Fig. 5 5. Unlock the handle on table support assembly (E), then insert table assembly onto pole (G). Once the desired height is achieved, turn the handle clockwise to re-lock table support (E). Fig. 6 6. Insert reflector spacers (II) into the top of burnerassembly (C).
- Page 12 Fig.7 7. Thread the regulator assembly preassembled to burner assembly (C) through the pole assembly (G). Once the burner assembly (C) rests on pole assembly (G), secure with M5 x 8 mm black bolts (BB). Fig.8 8. Attach KD domes (B) using M5 nuts (GG), M5 washers (HH) and M5 x 8 mm silver bolts (FF).
- Page 13 Fig.9 9. Attach dome assembly to burner assembly (C) by securing wing nuts (JJ) to reflector spacers (II) Fig.10 10. Connect the preassembled regulator assembly from burner assembly (C) to a 20-lb. LP-gas cylinder (sold separately). Line up threads on cylinder fitting with those on regulator and rotate clockwise until tight.
- Page 14 Fig.11 11. Attach strap inside of cylinder assembly (H) to secure cylinder. Then close door on cylinder assembly (H) to complete installation. Fig.12 12. To install the battery Size “AAA” (DD), unscrew the igniter cap preassembled to Battery burner assembly (C). Insert battery (DD) into the igniter, ensuring the positive "+"...
-
Page 15: Operating Instructions
OPERATING INSTRUCTIONS Checking for Leaks Your patio heater has been checked at all factory connections for leakage. To check the connection at the gas hose/regulator/cylinder: a. Make leakage solution by mixing 1 part liquid dish soap and 3 part water. b. -
Page 16: Care And Maintenance
Fig.14 In any case of failure of normal ignition, please use the lighter (sold separately) to reach the burner for ignition through the hole on the Fig.16 bottom of burner diffuser. WARNING FOR YOUR SATETY: If at any time you are unable to light burner and smell gas, wait 5 minutes to allow gas to dissipate before attempting to light heater. - Page 17 1. The smell of gas in conjunction with extreme yellow tipping of burner flames. 2. Heater does not reach proper temperature. 3. Heater’s glow is excessively uneven. 4. Burner makes popping noises during use. Note: A slight pop is normal when burner is extinguished. i.
-
Page 18: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Corrective Action Burner won’t light 1. Gas pressure is low. 1. Turn tank valve “OFF” and replace 2. The orifice is blocked. the tank 3. Control knob is not in “PUSH” 2. Clear blockage. position. 3. Turn control knob to “PUSH” position.
