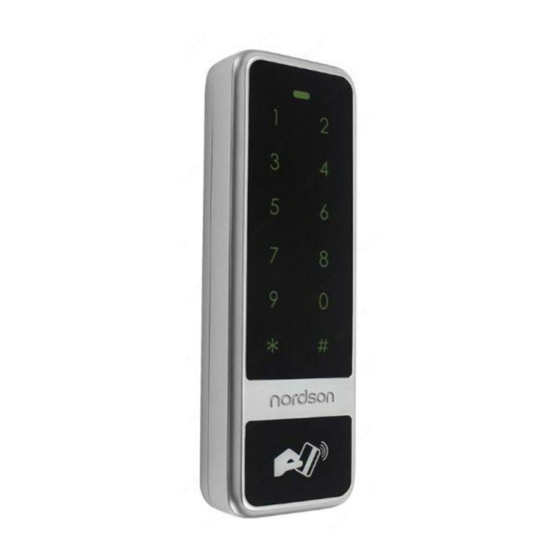

RFID Card Access Control
Operating Manual
Professional Card& Program Developers
And Manuf Acturse
Model: NT-T10,NT-T12
The rights change and upgrade definition and other product information,
(Please read operating maual carefully before use)
without advance notice are preserved by our company
please keep the operating manual carefully
Advertisement
Table of Contents
Summary of Contents for Nordson NT-T10
- Page 1 RFID Card Access Control Operating Manual Professional Card& Program Developers And Manuf Acturse Model: NT-T10,NT-T12 The rights change and upgrade definition and other product information, (Please read operating maual carefully before use) without advance notice are preserved by our company...
- Page 2 8000 user cards...
- Page 3 6. add password& card type user 2. System operation Press “*” + “ program code” + “#” + “3” + “ four 1. factory setting opening password：7890， digits user code” + “four digits user password” + “#” + programming code:123456 “swipe”...
- Page 4 12. set managed card( add and delete card) Press “*” + “program code” + “#” + “9” + 4. The data copying operation “swipe card” The TXD and RXD of main access control machine connect to the Note: swiping first one is to add card, second RXD and TXD of the same type of vice access control machine , TXD and RXD should be cross-linked,and then enter the copy time is to delete card.
- Page 5 7. Wiring diagram ommon power supply diagram 7.1 C +12V +12V 12V+ DC regulated power input Black 12V- DC regulated power input Power Yellow Relay normally open end(Connect positive electric lock) Grey Relay public end,connect GND +12V Purple Relay closed end(Connect positive electric lock) Brown Exit button one end(the other end connected gnd) Black...
- Page 6 power connecting diagram 7.2 Special 8. Cautions and failure analysis (1) Notes +12V +12V ◆ The user card that authorized by adding card or deleting card only can be deleted by swiping ◆ Tamper alarm is light sensor, the light changes strongly, PUSH hosts two minutes ,then the alarm returns to normal ◆...
