Siemon HD5 Series Instructions

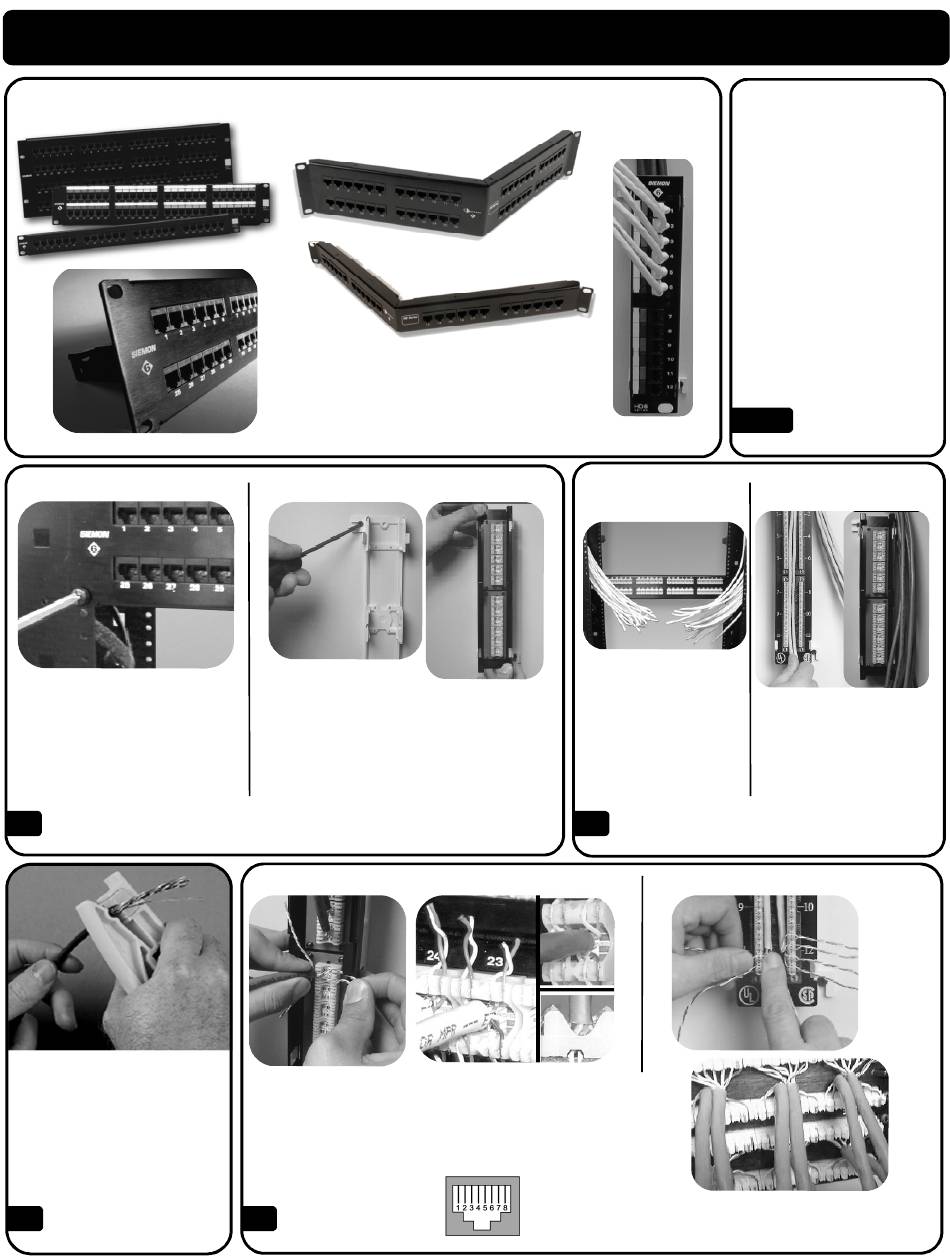

HD5 & HD6 Series Wall & Rack Mount Patch Panel Instructions
Rack Mount Style Panels
Using the #12-24 machine
screws and washers provided,
mount the panel to the desired
location on a 19" equipment
rack or equivalent.
1
Mount Panel
Strip a minimum of 50mm (2 in.)
of cable jacket using Siemon
TM
AllPrep tool (p/n: CPT-RGTP)
or equivalent.
Prep cable
3
19" Flat & Angled Rack Mount
Style Panels
Note: All panel styles have either S110 or S310
style termination posts. All are designed for use
with a standard 110 type punch-down tool
Vertical Wall Mount Style Panels
Mount S89D bracket with screws (not
included) suitable for mounting
surface being used.
Temporarily snap on vertical panel
with termination side out to allow for
easier cable termination.
Arrange pairs in accordance with the desired wire scheme as
detailed on the color coded sticker provided. Lace conductors
by pressing firmly into position from both sides of lacing post.
Tip: Begin lacing on side of panel where cables feed from to avoid
cable bundle interference.
4
Lace conductors
S310 style
See cross-reference to outlet pin #'s on bottom of back page.
Vertical Wall
Required Tools:
Mount Style
Panels
- Jacket stripper
- Phillips screw driver.
- Cable cutters
- 110 punch tool
Optional Tools:
- Multipair 110 punch
tool (for S110 style
terminations only).
Tools
Rack Mount
Route half of the
cables to each side of
panel.
2
Route Cables (For ease of installation)
S110 style
Wall Mount
Route cables such
that they feed into
center of connecting
blocks.
