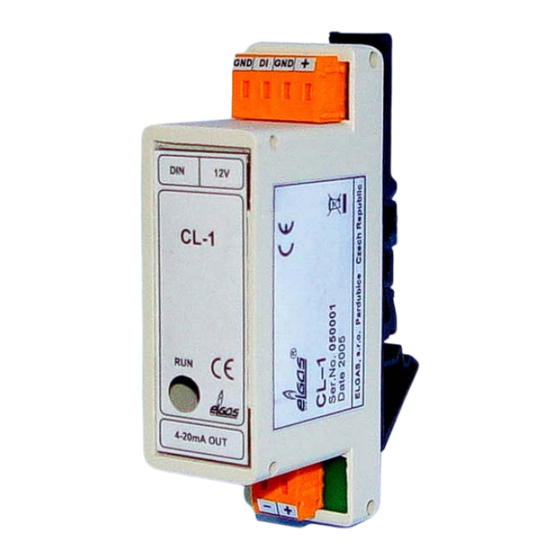

- Page 1 CL-1 Module of current loop Technical description Manual September 2006...
- Page 2 CL-1 ELGAS, s.r.o. Content Technical description ......................3 Indication of module state ....................3 Configuration of module ....................4 Technical data ........................4 Example of connection to digital output of corrector ..............6...
-
Page 3: Technical Description
This value will remain on the output till digital input will receive new data from corrector. Module CL-1 is delivered in plastic box for assembly on DIN rail 35 mm. CL-1 is determined for assembly into switchboard. -
Page 4: Technical Data
CL-1 ELGAS, s.r.o. 3 Configuration of module Setting of module can be performed through DIP switch, which is available after opening of the box. Box is assembled with two side parts. For opening of the box should be used suitable tool (for example screwdriver) and with its help can be separated both parts from each other. - Page 5 CL-1 ELGAS, s.r.o. Dimensions (w x h x d) 27 x 42 x 96 mm (height without holder) Clamps 1.5 mm for connection of cables Protection class IP20 -25 °C to +60 °C Ambient temperature -40 °C to +85 °C...
- Page 6 CL-1 ELGAS, s.r.o. Example of connection to digital output of corrector picture no. 1 ELCOR-2 „i“ (microELCOR-2) - connection through intrinsically safe separator picture no. 2 ELCOR-2 „i/n“ – direct connection...
- Page 7 CL-1 ELGAS, s.r.o. Module of current loop CL-1 Elaborated by: Collective of authors ELGAS, s. r. o. tel.: +420 466 414 500, 511 Ohrazenice 211 fax: +420 466 411 190 Issued by: 533 53 Pardubice http://www.elgas.cz Czech republic e-mail: sales@elgas.cz...
