Raytec Vario2 Lighthouse Kit VAR2-VLK Installation And Setup Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

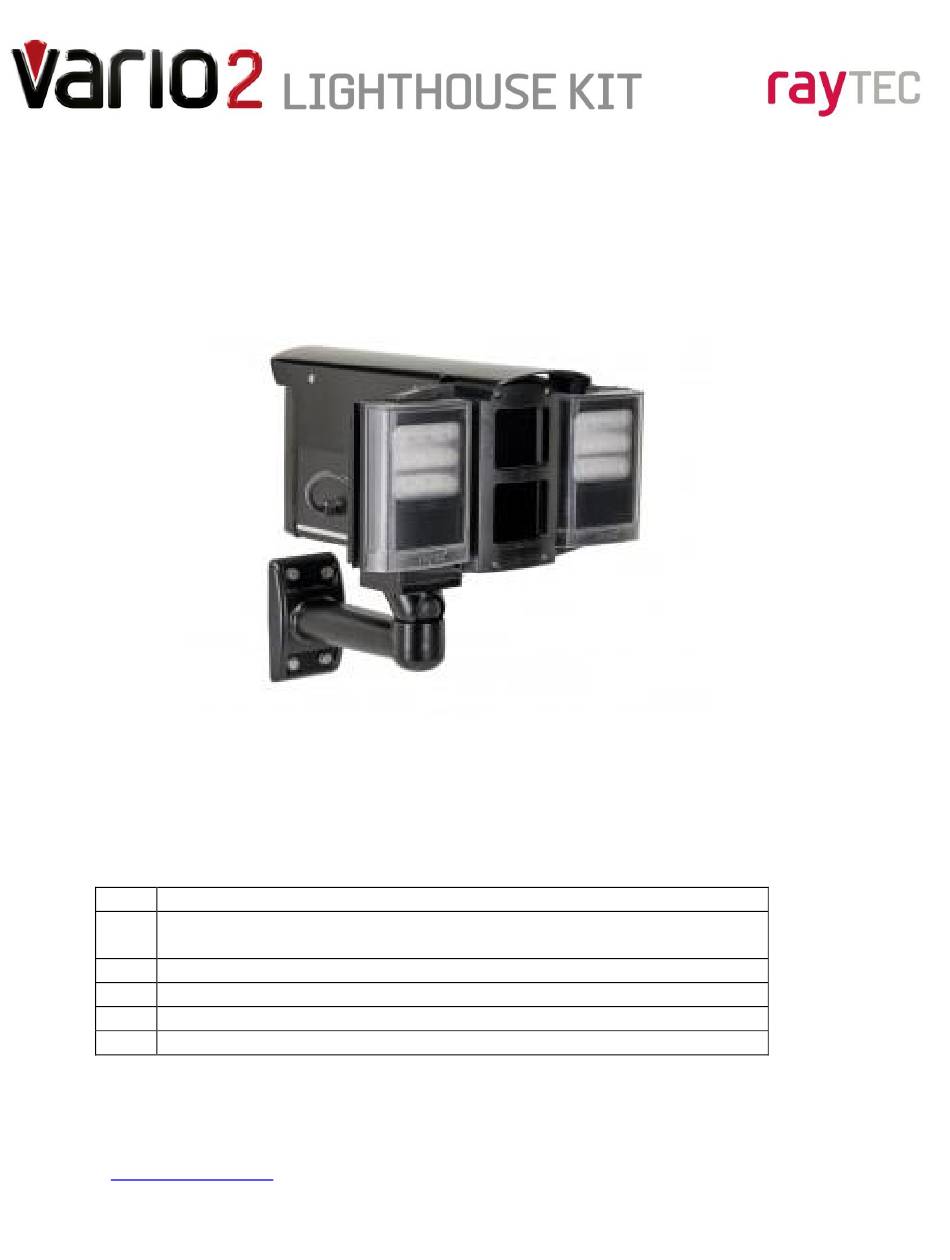

Installation and Setup Guide

1 Package Contents

Qty.
Description
1
Vario2 VLK fitted with 4m of 6 Core Power/Aux Cable and 4m of Cat5e cable
attached
1
WBOV Bracket Assembly
2
IR front windows
2
60 deg Diffusers
1
Instructions
1
www.rayteccctv.com
UK/Europe Tel: +44 (0) 1670 520055
Americas Tel: +1 613 270 9990
Toll Free: +1 888 505 8335

Advertisement

Table of Contents
loading

Summary of Contents for Raytec Vario2 Lighthouse Kit VAR2-VLK

  • Page 1: Package Contents

    Installation and Setup Guide 1 Package Contents Qty. Description Vario2 VLK fitted with 4m of 6 Core Power/Aux Cable and 4m of Cat5e cable attached WBOV Bracket Assembly IR front windows 60 deg Diffusers Instructions www.rayteccctv.com UK/Europe Tel: +44 (0) 1670 520055 Americas Tel: +1 613 270 9990 Toll Free: +1 888 505 8335...

  • Page 2: Table Of Contents

    2 Table of Contents Package Contents ....................... 1 Table of Contents........................ 2 Safety Information ......................3 Introduction ........................3 Easy Set up .......................... 5 Factory Default Settings ..................... 5 Installing Camera(s) ......................6 Camera Wiring Interfaces ....................8 7.1.1 Connections Diagram ......................8 System Configuration .......................

  • Page 3: Safety Information

    3 Safety Information Isolate supply Install in a well- Eye Safety : IR Variants (850nm and 940nm) before ventilated area Caution – IR emitted from this product EN62471 Risk Group 2. removing Do not stare at the lamp. Avoid exposure or use appropriate cover shielding / eye protection.
  • Page 4 An optional VARIO PSU is available to provide 24V AC/DC and the option for Cat5e termination. Vario2 is the next generation of Infra-Red and White-Light illuminators from Raytec. Using the latest PLATINUM Elite SMT LEDs, VARIO2 allows cameras to generate longer illumination distances using less power.

  • Page 5: Easy Set Up

    5 Easy Set up Adaptive 1. Fit cameras inside the VAR2-VLK. illumination (AI) 2. Configure the VAR2-VLK. 3. Mount VAR2-VLK to column or wall. (See accessories for suitable brackets). 4. Mount the PSU (optional extra). 5. Route Cables from Camera Housing to PSU and terminate. 6.

  • Page 6: Installing Camera(S)

    7 Installing Camera(s) Provision is made inside the body of the VAR2-VLK to locate two cameras. Two slider plates are provided to allow cameras to be located in the centre or top positions of the housing. To access, remove the rear cover of the housing using a 3mm Allen key. This gives access to both slider plates.
  • Page 7  For VAR2-VLK please use the VLK Long version dimensions where stated in the diagrams above Ensure the camera is secure before sliding the plate back into the housing. Check for clearance both at the front and at the rear of the camera adjust as required. www.rayteccctv.com UK/Europe Tel: +44 (0) 1670 520055 Americas Tel: +1 613 270 9990...

  • Page 8: Camera Wiring Interfaces

    7.1 Camera Wiring Interfaces The camera(s) now need to be connected to the VAR2-VLK electrically. There are several things to consider here and will determine what connections need to be made: -  How will the camera be powered? o 24V o PoE ...
  • Page 9 Camera Wiring Interface Plugs Supply +ve Supply –ve (Two sets Supplied) Not Used +ve Signal Ground Control Input Control Output Camera CAT5e Patch Cable (Optionally Supplied) www.rayteccctv.com UK/Europe Tel: +44 (0) 1670 520055 Americas Tel: +1 613 270 9990 Toll Free: +1 888 505 8335...

  • Page 10: System Configuration

    System Configuration The following information details the possible interconnections between lamps and cameras and the links made using the Configuration Mode DIP Switch. Links that are permanently hard wired are marked HW. Links that are made by turning ON (closing) switches 1 to 4 are identified by number. Configurations marked X are not valid.
  • Page 11 There are many possible custom configuration scenarios. The following schematic diagram illustrates the possible interconnections and the examples are intended as a guide only. Switch 1 Switch 2 Switch 3 Switch 4 Example 1 : (Default Setting) Both Lamps enabled by either Aux Telemetry, Cam1 O/P or Cam2 O/P : Short Circuit=ON Conditional on Photocell status –...
  • Page 12 Switch 1 Switch 2 Switch 3 Switch 4 Example 4 : (Hybrid Lamps) With Lamp1 = White Light, Lamp2=InfraRed Lamp2 (IR) is ON if photocell status is dark (or permanently ON if photocell is disabled) Lamp1 (WL) is enabled if Cam1 O/P detects motion or by PIR via Aux Telemetry. Turning ON of Lamp1 is conditional on its photocell, if it is enabled.
  • Page 13 With both Lamps = White Light, Cam1 = Thermal imaging, Cam2 = Colour IP type. If lamp photocells are disabled, both Lamps are turned ON via Cam1 O/P on motion detection. This action is detected by Cam2 I/P which can activate video capture streaming.

  • Page 14: Camera Housing Installation

    9 Camera Housing Installation 9.1 Wall / Pole Mounting The VAR2-VLK is supplied with a WBOV mounting bracket. This is designed to fit directly to a wall or to a pole (with optional Pole Mount Bracket – see list of approved accessories) and provides full x, y, z adjustment of the system.

  • Page 15: Cat5E Cable

    9.2.1.1 Power Cable A primary supply input of 24VDC or 24VAC is required to operate the unit. {An HV Input (110/230VAC) PSU unit is optionally available including simple Cat5e termination}. 9.2.1.2 Photocell Following Contact. Short circuit=dark, Open circuit=light. Note photocell sensitivity and operation settable via optional lamp remote control. 9.2.1.3 Telemetry control input.

  • Page 16: Mechanical Alignment

    10 Mechanical Alignment Adjust vertical and rotational angle using Point unit towards scene (Optional night time WBOV bracket attached to base set-up for optimum image performance) Rotational Adjustment Loosen Allen Screw to allow for adjustment, tighten once adjustment complete Tilt Adjustment Please Note: Always keep product in same orientation.

  • Page 17: Illuminator Modes And Feedback System

    11 Illuminator Modes and Feedback System 11.1 Programming Mode and Operating Mode On powering up the unit the two illuminators automatically enter Programming Mode. The Programming Mode automatically times out after 7 Days (or after 30 minutes if the manual buttons are pressed) or until the user actively changes to Operating Mode.

  • Page 18: Optional Lamp Remote Controller

    12 Optional Lamp Remote Controller The VAR2-VLK VARIO Remote Controller (VRC) is an optional accessory which operates on illuminator settings only; it cannot be used for settings on any other part of the VAR2-VLK unit. For control interfaces between illuminators lamps and cameras, see the sections 7 & 8. If you require the two lamps to be set up differently you will need to use the PIN function and control.

  • Page 19: Remote Control Operation For Pin Set And Manual Button Disable / Enable

    13 Remote Control Operation for PIN set and Manual Button Disable / Enable The illuminators have an additional security feature which allows you to protect the settings using a PIN. A benefit of this for the Vario2 VLK is that If each illuminator is set with a different PIN, the Illuminators can be adjusted separately from the ground.

  • Page 20: Extra Vrc Functionality

    13.1 Extra VRC Functionality : PIN Function The same PIN can be used simultaneously for both illuminators or each illuminator can have a separate PIN The PIN is set by using the Vario Remote Control (VRC). There are five buttons / characters on the remote that can be used for this purpose.

  • Page 21: Pin Function Detail

    13.2 PIN Function Detail : The PIN is set by using the Vario Remote Control (VRC). There are five buttons / characters on the remote that can be used for this purpose. They are Power 5, Power 1, Min Photocell (Smallest moon), Max Timer (Full Red Circle) & Timer Disable ( Timer Circle image with a line through) .

  • Page 22: Manual Control Buttons

    *Note - If you forget your pin and need to make adjustments to the illuminator(s) you need to do full Re-set. This requires power recycling whilst pressing the two manual control buttons at the same time. This will restore factory default settings AND remove the previously programmed PIN.
  • Page 23 Summary Table Action Required Step1 : Step 2 : Comment LHS Button RHS Button Power Adjust 1 x Push Solid Red Each Push Green flashes indicate cycles through level. High power (5 power levels flashes) to Low power (1 flash) Photocell Adjust 2 x Push Solid...

  • Page 24: Mode Selection By Using Lhs Button

    The number of button pushes indicated in the table is based on the user starting with the illuminator in either programming or operating mode. If the user has already started to program the units, then the number of button pushes on the left hand will take them to the next function as per the sequence in the table.

  • Page 25: Manual Setting / Level Indication Using Rhs Button

    14.2 Manual Setting / Level Indication using RHS Button : The RHS BUTTON will only have an effect if you have selected a mode using LHS Button – pressing RHS Button without previously pressing LHS Button will have no effect on the Illuminator operation –...

  • Page 26: Illuminator Security Modes Detail

    Photocell Level Mode (LHS LED : Solid GREEN) RHS LED: Low sensitivity: 1 Flash GREEN Medium Sensitivity: 2 Flashes GREEN High Sensitivity: 3 Flashes GREEN Disabled photocell: Solid RED Enable / Disable Status Indicator LEDs Mode (LHS LED: Solid AMBER) RHS LED: Enable LEDs: Solid GREEN Disable LEDS: Solid RED...

  • Page 27: Disabling The Manual Buttons

    Enable & Disable of Manual Control Buttons (LED A : Flashing AMBER) RHS LED: Enable Manual Button Control – Solid GREEN Disable Manual Button Control – Solid RED Note : If the illuminator is in Operating Mode and the buttons are currently disabled, you cannot re-enable.

  • Page 28: Power Up Functionality

    15 Power Up Functionality Power Up Functionality : After power is supplied to the unit : If no PIN is present the Illuminators will go into Programming Mode for 7 Days and then will default to Operating Mode During this time if the remote is used to change settings the illuminators will still default into Operating Mode after 7 Days from the power up (unless the remote disable button is used to change the illuminator to Operating Mode) During this time if the manual buttons are used in either Illuminator Settings...

  • Page 29: Illuminator Beam Angle Adjustment

    17 Illuminator Beam Angle Adjustment 17.1 Beam Angle of Illuminators – Changing the Lens Insert Each Illuminator is factory set and supplied with 35° ILS (Interchangeable lens System) . To alter the beam angle to 10°, simply remove the ILS as detailed below. ILS inserts for 60° are supplied with the unit.

  • Page 30: Optional Psu Installation

    18 Optional PSU Installation 18.1 PSU Mounting Ensure the power supply is mounted securely to a flat external surface in a well ventilated area Ensure the power supply enclosure is fully sealed and water tight before operation Mount PSU with glands pointing down and lid fitted as shown 18.2 Wiring Interfaces...

  • Page 31: Troubleshoot

    Match angle of illumination with angle of camera/lens – change angle if required  Check camera lens – fully open at night & set correctly Step 3: Call Raytec for further assistance Note down:  Model and serial number of illuminator ...

  • Page 32: Specifications

    20 Specifications Mechanical :- VAR2-VLK Unit :- Dimensions (LxWxH) 336 x 302 x 173mm (13.2 x 11.9 x 6.8”) Weight 4.6 kg (10.1 lbs) : including Wire and Bracket 4 x M5 Holes at 40 x 62mm ( 1.57 x 2.44”) Mount Optional PSU :- Dimensions (LxWxH)
  • Page 33 Available Variants : For any other variant requests please contact Raytec VAR2-VLK-W4-2 VAR2-VLK-I4-2 VAR2-VLK-I6-2 VAR2-VLK-I4-C-2 VAR2-VLK Contact Contact Contact Model Raytec Raytec Raytec Lamps 2xWL 2xIR (850) 2xIR (850) 2xIR-C (940) WL + IR4 WL + IR6 WL + IR4-C...

  • Page 34: Dimensions

    20.1 Dimensions www.rayteccctv.com UK/Europe Tel: +44 (0) 1670 520055 Americas Tel: +1 613 270 9990 Toll Free: +1 888 505 8335...
  • Page 35 Bracket – WVOB Wall fixing Template www.rayteccctv.com UK/Europe Tel: +44 (0) 1670 520055 Americas Tel: +1 613 270 9990 Toll Free: +1 888 505 8335...

  • Page 36: List Of Approved Accessories

    21 List of Approved Accessories Part Number/ Description Reference Vario Lamp Remote Controller VLK Patch IP Camera Cat5 Patch Cable (one per camera) VLK Plug Set Camera Wiring Interface 2way and 4way Plugs (one set per camera) Vario 100 PSU Power Supply Unit –...
