Summary of Contents for Norco BIS-6330A

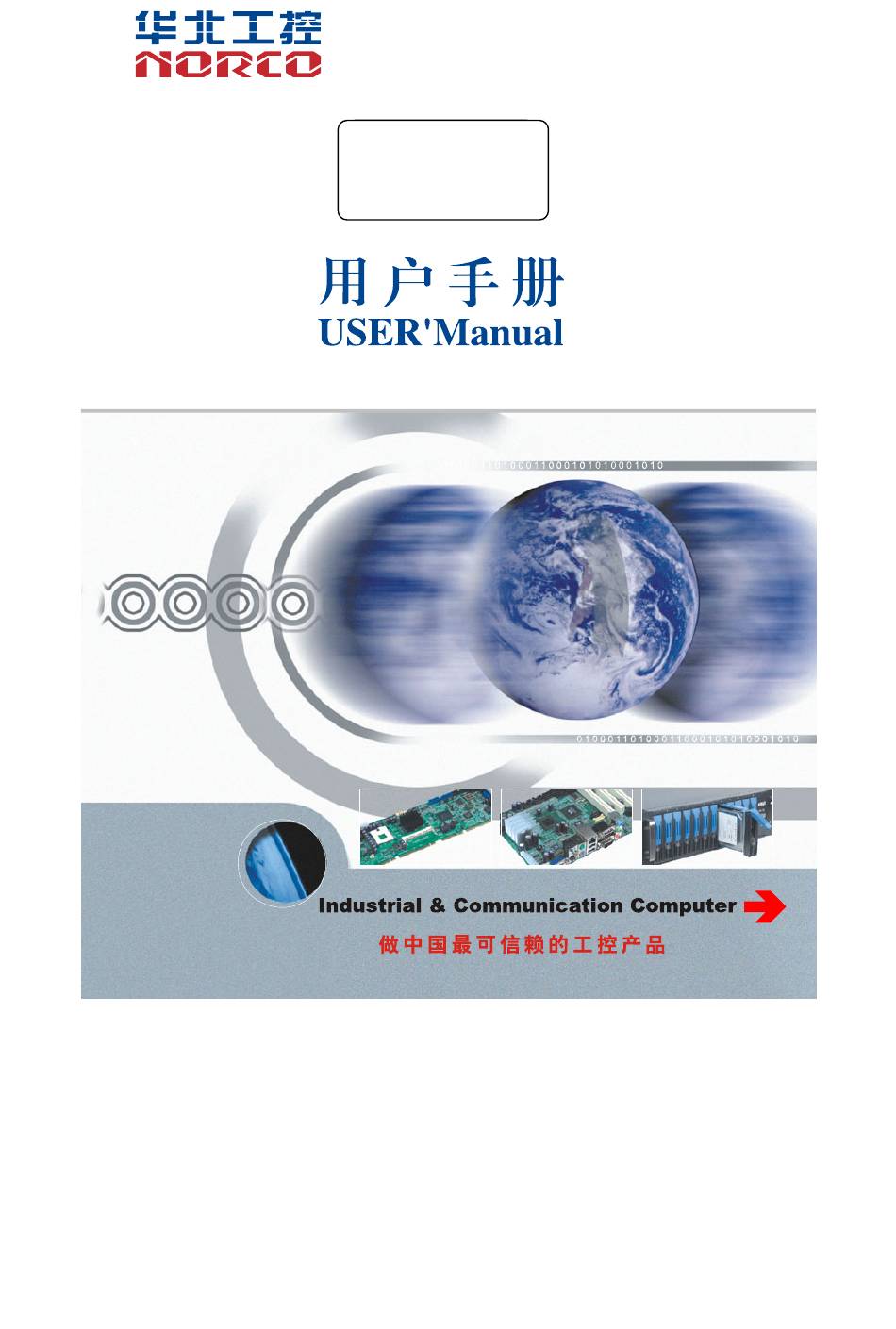

  • Page 1 BIS-6330A Digital Signage Player USER' Manual V1.0...
  • Page 2 BIS-6330A Digital Signage Player USER' Manual V1.0 Shenzhen HQ:0755-27331166 Beijing: 010-82671166 Shanghai: 021-61212081 Chengdu: 028-85259319 Shenyang: 024-23960846 Xi’an: 029-88338386 Nanjing: 025-58015489 Wuhan: 027-87858983 Tianjin: 022-23727100 Singapore: 65-68530809 For more product information, please visit www.norco.com.cn...
  • Page 3 Shenzhen NORCO Intelligent Technology Co.,Ltd. BIS-6330A Network Digital Signage Platform Shenzhen NORCO Intelligent Technology Co.,Ltd. Place/Date: HONG KONG/2011...
  • Page 4 Trade Name： Shenzhen NORCO Intelligent Technology Co.,Ltd. Model Name：BIS-6330A Responsible Party： Shenzhen NORCO Intelligent Technology Co., Ltd. Equipment Classification：FCC Class B Subassembly Type of Product：BIS-6330A Network Digital Signage Platform Manufacturer： Shenzhen NORCO Intelligent Technology Co.,Ltd. Date: 2011...
  • Page 5 Before ordering products, please learn about the product performance from the distributors to see if it is in line with your needs. NORCO is a registered trademark of Shenzhen NORCO Intelligent Technology CO.,LTD. The ownership of other trademarks involved in this manual is owned by its respective owners.
  • Page 6 Safety Instructions 1. Please read this manual carefully before using the product. 2.To prevent electronic shock hazard or any damage to the product, please ensure that all power cables for the devices are unplugged when adding or removing devices or reconfiguring the system. 3.

  • Page 7: Table Of Contents

    Table of Contents Chapter 1 Product Introduction ....................1 1.1 Overview ........................1 1.2 Specifications ........................ 1 Chapter 2 Product Features ....................... 4 2.1 External Interfaces Location ..................4 2.2 Front Panel I/O ......................4 2.2.1 Audio（Speak-out, Mic-in） ................4 2.2.2 LED ........................
  • Page 8 3.2.1 ACPI Configuration ................... 20 3.2.2 APM Configuration .................... 21 3.2.3 CPU Configuration .................... 22 3.2.4 SATA Configuration ................... 25 3.2.5 Intel(R) Rapid Start Technology ................ 26 3.2.6 USB Configuration .................... 27 3.2.7 Supper IO Configuration ................... 29 3.2.8 H/W Monitor ...................... 32 3.2.9 CPU PPM Configuration ...................
  • Page 9 Packing List Thanks for purchasing NORCO products. Please check the accessories as per the packing list when you open its package. If you find any defect components or anything damaged or lost, please contact your vendor ASAP. ■BIS-6330A 1 Unit ■Drivers and Utilities...

  • Page 10: Chapter 1 Product Introduction

    Chapter 1. Product Introduction...

  • Page 11: Overview

    Taking advantage of Intel’s new OPS standard, the BIS-6330A combines compact size and cutting-edge Technology to provide for greater scalability for digital signage applications. The BIS-6330A Intel 2nd/3rd Generation Core i3/i5 capable OPS module is built to last under dusty extreme temperature environments with a rugged fully-enclosed solid state design. In addition, the system pushes for eco-friendliness with low power consumption.
  • Page 12 BIS-6330A Digital Signage Player Display ●Display Interface: 2x HDMI, 1x Display Port ●HDMI: Maximum resolution:1920x1200@60Hz, one is extended via OPS and one on the rear panel. ●Display Port: Maximum resolution: 2560x1600@60HZ Ethernet ●LAN Controller: PCIe LAN chip: RTL8111E ●Rate: 10/100/1000MBps ●Support Wake-on-LAN（WOL）...
  • Page 13 BIS-6330A Digital Signage Player ●Standard OPS connector: including 1x HDMI, 1x Display Port, 1x COM, 2x USB2.0, 1x USB3.0. Power Supply ● Power supplied via OPS Interface ●Support 12V~19V power input Watchdog ●Trigger system reset when the timer overflows BIOS ●BIOS: 8MB SPI FLASH，AMI EFI BIOS...

  • Page 14: Chapter 2 Product Features

    Chapter 2. Product Features...

  • Page 15: External Interfaces Location

    OPS Slot 2.2 Front Panel I/O 2.2.1 Audio（Speak-out, Mic-in） BIS-6330A adopts ALC887 audio controller chip. The green one is Speak-out; the pink one is the Mic-in. 2.2.2 LED PWR_LED is on the upper layer. The LED beneath is the HDD_LED.

  • Page 16: Usb3.0（Usb1/2

    USB3_TX2_R_DP 2.2.4 Ethernet（LAN） BIS-6330A provides 1x RJ-45 Gigabit Ethernet LAN Port with its pins defined as below. LILED & ACTLED are the green LED and Yellow LED on both sides of the port, indicating the status of the LAN port.

  • Page 17: Inner Interfaces

    BIS-6330A Digital Signage Player and no analog to digital / digital to analog conversion before transferring signal, securing high quality signal transfer. HDMI supports 1x 1080P video signal and 1x 8CH audio signal. Signal Name Signal Name D2 Shield D1 Shield...
  • Page 18 BIS-6330A Digital Signage Player SATA1: Signal Name Signal Name +12V VCC3 +12V VCC3 +12V VCC3...
  • Page 19 BIS-6330A Digital Signage Player 2.3.2 Display Interface（HDMI1, Display Port） HDMI1 HDMI1: Signal Name Signal Name D2 Shield D1 Shield D0 Shield CK Shield CE Remote DDC CLK DDC DATA HP DET SHELL0 SHELL1 SHELL2 SHELL3 SHELL4...

  • Page 20: Jbat

    BIS-6330A Digital Signage Player SHELL5 SHELL6 SHELL7 SHELL8 SHELL9 SHELL10 SHELL11 HDMI2, Display Port is provided via OPS connector 2.3.3 JBAT JBAT: Signal Name BAT+...

  • Page 21: Fan Interface（Cpufan

    BIS-6330A Digital Signage Player 2.3.4 FAN Interface（CPUFAN） Board provides one 3Pin CPU FAN interface. Please pay attention to following two points when using this interface: （1）The electric current of the FAN should≤ 350 mA（4.2W, 12V）. （2）Please confirm the FAN cable matches the socket cable.

  • Page 22: Serial Port（Com1

    BIS-6330A Digital Signage Player 2.3.6 Serial Port（COM1） OPS connector provides one COM1 supporting RS232 transmission mode.

  • Page 23: Chapter 3 Installation Instructions

    Chapter 3. Installation Instructions...

  • Page 24: Jumper Setting

    BIS-6330A Digital Signage Player Chapter 3 Installation Instructions Before installing your computer accessories, please keep the following two points in mind: 1. Please make sure that your computer does not connect to power supply . 2. Please wear anti-static wristband/gloves when touching integrated circuit components (e.g.
  • Page 25 BIS-6330A Digital Signage Player JCC: Setting Clear CMOS(BIOS renew to initialization Nomal status(default) Please do not clear CMOS when system startup in case of damage to the motherboard.

  • Page 26: Pins For System Auto Boot Upon Restore Ac Power（Jat

    Auto boot 3.2 Install Memory BIS-6330A provides 1x 204Pin DDRIII SO-DIMM slot supporting DDRIII 1066/1333/1600 MHz RAM up to 4GB. Users can select 512MB to 4GB memory bank for this system. Please follow the steps below to install the memory module: 1.

  • Page 27: Install Hdd

    BIS-6330A Digital Signage Player connecting finger should be aligned with the socket bulging mark. 4. Finally press the memory bank into the slot softly until the memory bank fit into the slot. 3.3 Install HDD System provides 1x 2.5” SATA HDD. Please follow the steps below to install the HDD: 1．Power off...

  • Page 28: Chapter 4 Bios Setup

    Chapter 4. BIOS SETUP...

  • Page 29: Ami Bios Flash

    BIS-6330A Digital Signage Player Chapter 4 BIOS SETUP AMI BIOS Flash BIOS functions as a bridge connecting hardware and operating system. Hardware and software are upgrading all the time, so when your system goes wrong, for example, your system can not support the newest CPU, you need to upgrade BIOS to keep up with the latest technology.

  • Page 30: Main Menu

    BIS-6330A Digital Signage Player 3. Use the “←↑→↓”to choose the option which your want to modify, press <Enter> to the sub-menu. 4. Use the “←↑→↓”and <Enter> to modify the value; press”Enter” to modify BIOS options that you choose. 5. At any time, press<Esc> can go back to the father-menu.

  • Page 31: Advanced

    BIS-6330A Digital Signage Player Memory Information: Memory size and frequency : Southbridge Model Intel SB Name : Southbridge stepping information Stepping : ME Firmware version ME FW Version : ME Firmware SKU ME Firmware SKU System Date System Date Format: Month/ (Jan.-Dec.) Date/ (01-31) Year/ (up to 2099) Week/ (Mon.～Sun.)

  • Page 32: Apm Configuration

    BIS-6330A Digital Signage Player ACPI Settings Setup system in deepest sleep mode S1/ S3 APM Configuration Set RTC parameters CPU Configuration CPU parameters and options configuration SATA Configuration SATA Mode and Information Setting Intel(R) Rapid Start Technology Intel (R) Rapid Start Technology is developed by Intel Corporation and is newly added to Intel 7 series CPU.

  • Page 33: Supper Io Configuration

    BIS-6330A Digital Signage Player Super IO Configuration Super IO configuration, including COM port IRQ and Address H/W Monitor Hardware voltage monitoring Serial Port Console Redirection Serial Port Console Redirection setting CPU PPM Configuration CPU Power Management Configuration 3.2.1 ACPI Configuration...
  • Page 34 BIS-6330A Digital Signage Player S3 (STR): Power is only supplied to system memory. 3.2.2 APM Configuration RTC Power On Function Enable or disable the RTC Power On Function. RTC Power On Hour To setup RTC Power On Hour. RTC Power On Minute Setup RTC Power On Minute.
  • Page 35 BIS-6330A Digital Signage Player 3.2.3 CPU Configuration...
  • Page 36 BIS-6330A Digital Signage Player The read only options contain the detailed information of CPU, including CPU supplier, model, frequency, Level1 Cache, Level2 Cache, etc. Hyper-Threading Enable or disable CPU Hyper-Threading Technology. Active Processor Cores Activate Processor Cores (only when the processor has multiple cores) Limit CPUID Maximum Please set this item as [Enabled] if the system OS doesn’t support the extended CPUID...
  • Page 37 BIS-6330A Digital Signage Player without programmer intervention. When enabled through the BIOS, two 64-byte cache lines are fetched into a 128-byte sector, regardless of whether the additional cache line has been requested or not. In applications with relatively poor spatial locality, the cache miss ratio is higher.
  • Page 38 BIS-6330A Digital Signage Player 3.2.4 SATA Configuration Serial-ATA Controller(S) Enable or disable Serial-ATA controllers. Setting values include [Disabled], [Enhanced], [Compatible]. SATA Mode This option is used to configure SATA mode: [IDE] or [AHCI].
  • Page 39 BIS-6330A Digital Signage Player 3.2.5 Intel(R) Rapid Start Technology Intel(R) Rapid Start Technology Enable or disable Intel Rapid Start Technology. Entry on S3 RTC Wake Intel rapid start technology needs to wake from S3 to enter S4. Enable or disable Entry on S3 RTC Wake.
  • Page 40 BIS-6330A Digital Signage Player 3.2.6 USB Configuration Legacy USB Support Enable Legacy USB support. Set this option [Enabled] or [Auto] if you want system to support USB devices, such as U disk, USB keyboard, etc. in DOS. Otherwise, select this option as [Disabled].
  • Page 41 BIS-6330A Digital Signage Player Mode as [Enable] to prevent speed down of USB3.0 device. XP has no USB3.0 driver. WIN8 comes with USB3.0 driver. HS Port ## Switchable USB3.0 Port Switchable setting. [Enabled]: connect to USB3.0 Controller; [Disabled]: connect to USB2.0 Controller...
  • Page 42 BIS-6330A Digital Signage Player 3.2.7 Supper IO Configuration Serial Port 1/2 Configuration Set parameters for serial port 1/2. Watchdog Configuration Set watchdog function.
  • Page 43 BIS-6330A Digital Signage Player Serial Port Enable or disable the serial port. Device Setting（Read Only） Set serial port IRQ and Address. COM1 default 3F8/IRQ4; COM2 default 2F8/IRQ3. Change Setting Change the setting of serial port IRQ and Address. System default [Auto].
  • Page 44 BIS-6330A Digital Signage Player Watchdog Function Enable or disable watchdog function. System default [Disable]. Watchdog On Minute Watchdog Timer Countdown setting. System defaults [10sec].
  • Page 45 BIS-6330A Digital Signage Player 3.2.8 H/W Monitor Hardware Health Monitor SYSTIN temperature CPUIN temperature CPU Fan Speed CPUVCORE +3.3VIN +1.5VIN +5VIN...
  • Page 46 BIS-6330A Digital Signage Player Console Redirection...
  • Page 47 BIS-6330A Digital Signage Player Console Redirection： Console Redirection. Motherboard supports COM1/2 console redirection. System defaults [Disable]. To enable redirection function just need to enable COM1 or COM2 console redirection. There is no need to enable EMS redirection. General Options: 1. Console Redirection: Console Redirection Options 2.
  • Page 48 BIS-6330A Digital Signage Player Windows Emergency Management Services The Emergency Management Services (EMS), available in Windows Server 2003 and Windows Server 2008, provides “headless” support for today enterprise servers. It enables management services without the need for a keyboard, mouse, local monitor, and video adapter.
  • Page 49 BIS-6330A Digital Signage Player 3.2.9 CPU PPM Configuration EIST Enhanced Intel Speed Step Technology (EIST) is a power and thermal management technology developed by Intel. Enhanced Intel Speed Step Technology allows the system to dynamically adjust processor voltage and core frequency, which can result in decreased average power consumption and decreased average heat production.
  • Page 50 BIS-6330A Digital Signage Player halt state. When enabled, the CPU core frequency and voltage will be reduced during system halt state to decrease power consumption. The C3/C6/C7 state is a more enhanced power-saving state than C1. (Default: Enabled). Config TDP LOCK TDP “Thermal Design Power”: Use this feature to lock the Config TDP Control register.

  • Page 51: Chipset Menu

    BIS-6330A Digital Signage Player 3.3 Chipset Menu North Bridge North Bridge Parameters: including Video memory, display, LVDS and other options. South Bridge South Bridge Parameters: including Audio Card, Network Card, Restore AC Power Loss and other options.
  • Page 52 BIS-6330A Digital Signage Player 3.3.1 North Bridge VT-d Check to enable VT-d Function on MCH DVMT Pre-Allocated DVMT Pre-Allocated for inbuilt Graphic card. DVMT Total Gfx Mem DVMT Total Gfx Mem for inbuilt Graphic card. Primary IGFX Boot Display Select onboard Graphic Card Primary Boot Display (such as HDMI, DP, LVDS). System default [VBIOS] to auto detect the boot display device.
  • Page 53 BIS-6330A Digital Signage Player Active LFP Activate or disable LVDS display. LCD Panel Type Setup LVDS display resolution. Panel Color Depth Setup the LVDS 24-bit Color or 18-bit Color. Flat Panel Backlight Setup and adjust LVDS Flat panel backlight 3.3.2 South Bridge Audio Controller Enable or disable the onboard audio controller.

  • Page 54: Boot Menu

    BIS-6330A Digital Signage Player LAN Controller Enable or disable the onboard LAN Controller. Wake on LAN Enable or disable Wake-on-LAN function. Restore AC Power Loss This option is to setup the system status while connecting the power again after the AC Power Loss <Power Off>: System remains the status of power off.
  • Page 55 BIS-6330A Digital Signage Player Setup Prompt Timeout Number of seconds to wait for setup shortcut key. 60s is the max seconds of timeout. If don’t press Setup key within the preset time, system will contiune to start. Bootup Numlock State This function allows users to activate Numlock function when boot up.

  • Page 56: Security Menu

    BIS-6330A Digital Signage Player 3.5 Security Menu The password length: Min: 1 character, Maximum: 20 characters. Administrator Password To setup the password for administrator User Password To setup User’s Password. If you have set the password, system will display “Installed”; If not,...

  • Page 57: Save&Exit Menu

    BIS-6330A Digital Signage Player 3.6 Save & Exit Menu Load Defaults Restore/Load Default values for all BIOS setup options. Save Changes and Exit Press [Enter] to select this option and press [Enter] to confirm to save all BIOS changes and Exit.

  • Page 58: Appendix

    Appendix...

  • Page 59: Appendix 1: Watchdog Programming Guide

    BIS-6330A Digital Signage Player Appendix Appendix 1: Watchdog Programming Guide watchdog reference code（C） ----------------------------------------------------------------------------------------------------------------------------- Set the port to realize watchdog function through DEBUG order, so that it can carry out Watchdog Timer’s various functions. Port Instruction: void main() {int indexp = 0x2e,datap = 0x2f;...

  • Page 60: Appendix 2: Glossary

    BIS-6330A Digital Signage Player Appendix 2: Glossary ACPI Advanced Configuration and Power Management。ACPI specifications allow O/S to control most power of the computer and its add-ons BIOS Basic input/output system. It is a kind of software including all in/out control code interface in PC.
  • Page 61 BIS-6330A Digital Signage Player Dual-Inline-Memory-Modules. It is a small circuit board with memory chipset providing 64 bit memory bus width. DRAM Dynamic Random Access Memorizer. It is a normal type of memory often with a transistor and a capacitance to store 1 bit. With the development of the technology, more and more types of DRAM with different specifications exist in computer applications.
  • Page 62 BIS-6330A Digital Signage Player It is the Universal Serial Bus for short. A hardware interface adapts to low speed peripherals, and is always used to connect keyboard, mouse etc. One PC can connect maximum 127 USB devices, providing 12Mbit/s transmit bandwidth USB supports hot swap and multi- data stream, namely, you can plug USB devices while system is running, system can auto-detect and makes it work on.

  • Page 63: Appendix 3: Install Driver

    BIS-6330A Digital Signage Player Appendix 3: Install Driver Please install the driver as per the following steps: Insert the programmed disk into CD-ROM, so installation of the driver can be made either automatically or manually. Now manually installation instructions are given as below: 1) A variety of options are available regarding manually installation, which you can check from Device Manager.
