Summary of Contents for Pitsco Education Boom-I-Lever Adapter

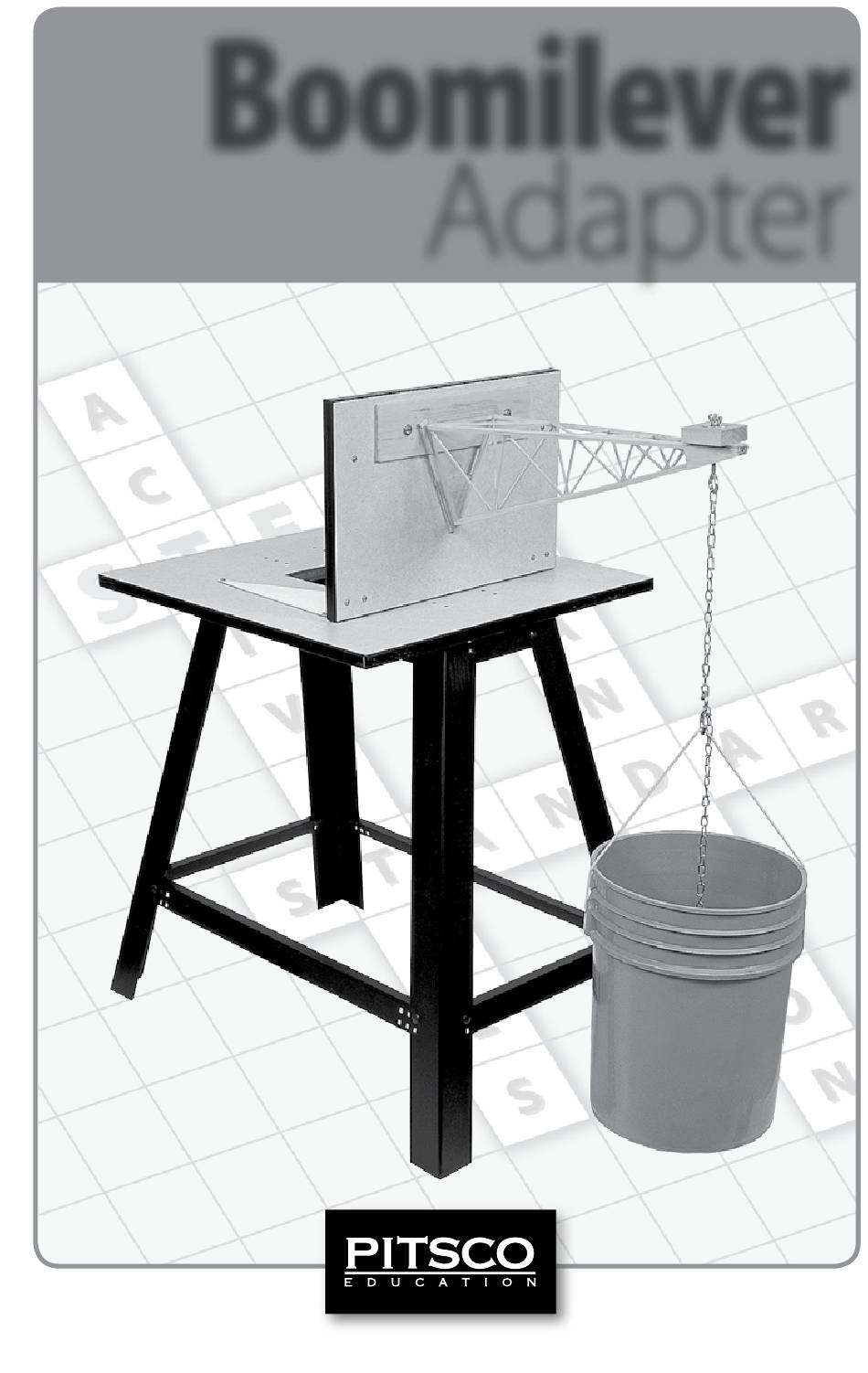

- Page 1 Boomilever Adapter User Guide Boomilever Adapter User Guide 57760 V0511...
- Page 2 Materials Included • Boom-I-Lever vertical test wall • Mounting hardware • 2 support brackets Items Required (not included) • Phillips screwdriver • 11/32" nut driver • Drill with 3/16" drill bit Installing the Boom-I-Lever If the structure tester has predrilled holes to install the Boom-I-Lever: 1. Use screws to attach the Test Wall short side of the support brackets to the predrilled holes in the Boom-I-Lever vertical test wall (Figure 1). 2. Place the test wall upright on the structure tester and align the holes in...
- Page 3 3. Center the test wall on the line so that the support brackets face the hole in the middle of the structure tester 5-1/2" tabletop (Figure 2). 4. Mark the position of the holes in the support brackets. Remove the test wall, and drill the holes. 5. Replace the test wall and use screws to attach the support brackets to the structure tester Figure 2 tabletop. Now that you are ready, use the Boomilever as shown below. Illustration of the Boom-I-Lever Adapter being used to test a cantilever. Boomilever Adapter User Guide 57760 V0511...
- Page 4 P.O. Box 1708 • Pittsburg, KS 66762 shop.pitsco.com Toll-Free Orders 800-835-0686 Boomilever Adapter User Guide 57760 V0511...
