iWorX BP-100 Technical Note

Intravascular blood pressure transducer

Table of Contents

Download this manual

BP-100/102 Intravascular Blood Pressure

Transducer

Technical

Note

iWorx Systems, Inc.

www.iworx.com

LabScribe is a trademark of

iWorx Systems, Inc.

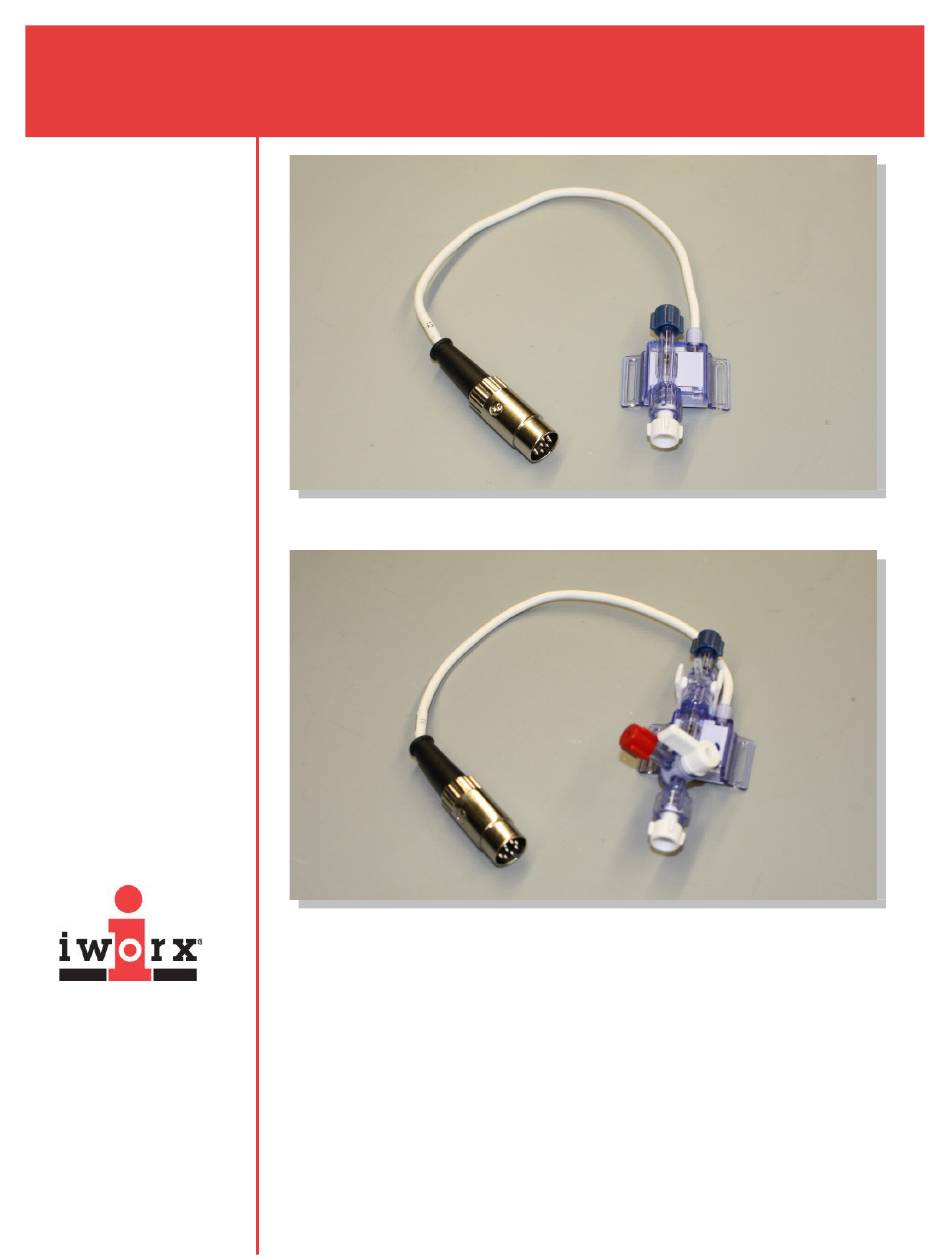

BP-100/102

BP-102

Overview

The BP-100/102 Intravascular Blood Pressure Transducer is a clinical blood

pressure transducer modified for use with digital recording equipment in research

applications. It consists of an active element and a separate (included) molded 5 ft.

extension cable. Although the elements are rugged and will stand up to repeated

use, they are not permanent. Replacement elements can be purchased directly

from iWorx Systems, Inc.

The BP-102 integrates a 3cc flush device and stopcock.

The sensor employed in this blood pressure (BP) transducer, and all disposable BP

transducers, is a strain gauge. The pressure output of the gauge is linear. This

makes transducer calibration very straightforward.

Table of Contents

Do you have a question about the BP-100 and is the answer not in the manual?

Page 1 BP-100/102 BP-102 Overview The BP-100/102 Intravascular Blood Pressure Transducer is a clinical blood pressure transducer modified for use with digital recording equipment in research iWorx Systems, Inc. applications. It consists of an active element and a separate (included) molded 5 ft.
Page 2 Plug the DIN8 connector of the BP-100/102 into the DIN8 extension cable. 2) Attach the cannula from the subject's artery to either end of the BP-100 or to the 3-way stopcock on the BP-102. The cannula, stopcock, and transducer should be filled with heparinized saline solution to prevent clotting.
Page 3 50μV/mmHg x X400 gain = 20mV/mmHg Since the voltage applied to the transducer by any of these devices is 10V, the inverse of this factor can be used to convert the voltage output of the BP-100/102 to pressure: iWorx Systems, Inc.
Page 4 Select Slope & Offset from the menu in the upper left corner of the Units Conversion window. In the box to the right of slope, enter the number 50 if the BP-100/102 is connected to an iWorx data acquisition unit with DIN 8 inputs, or an ETH-256 or ETH-401 with its gain set at X1.
Page 5 Over Pressure -500 to +100 mmHg Sensitivity 5 μV/V/mmHg at X1 Gain Excitation Voltage Temperature Effect +0.25 mmHg/oC Impedance <900 W iWorx Systems, Inc. www.iworx.com iWorx Systems, Inc. 62 Littleworth Road, Dover, New Hampshire 03820 (T) 800-234-1757 / 603-742-2492 (F) 603-742-2455...
