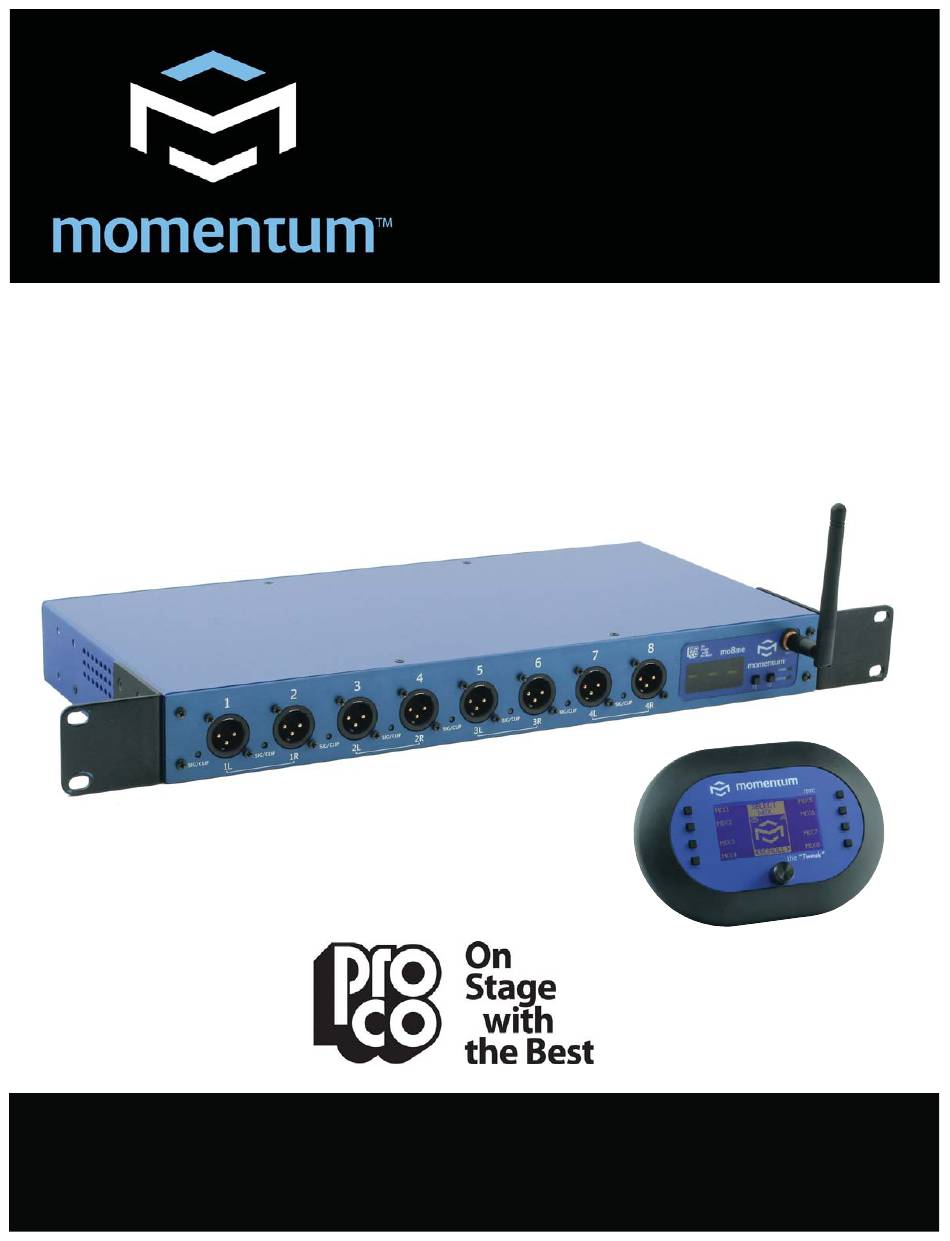

- Page 1 Mix Engine with mrc (The “Tweak”) Unit Manual Pro Co Sound, Inc. 225 Parsons Street | Kalamazoo, MI 49007 1-888-253-7360 | www.procomomentum.com...
- Page 2 Warranty Pro Co Sound guarantees Momentum for fi ve years, any excuse, even abuse. If you need to return the Momemtum unit(s), ship them to Pro Co Sound in the original carton or a suitable shipping container via insured freight. Pro Co will return the Momentum unit(s) to you, free of charge including return postage.
-
Page 3: Table Of Contents
Selecting a Solo Channel Start Channel Muting a Channel IP Address Naming Input Channels Sample Rate Saving Mixes Recalling Mixes Chapter 3: Control Panel Functions F1 and F2 Functions Chapter 6: mo8me Specifi cations Description of Functions Momentum mo8me Manual... -
Page 4: Safety Precautions
8. Do not defeat the safety purposes of the polarized or grounding type plugs. 9. Do not use the Momentum power supply for any purpose other than stated in this manual. 10. Only use Pro Co recommended accessories with any Momentum device. Momentum mo8me Manual... -
Page 5: Welcome
Welcome Thank You Thank you for your recent purchase of the Pro Co Momentum mo8me. We hope you fi nd our product to be versatile and fl exible. The entire line of Momentum products was designed with the intention of offering optimal fl... -
Page 6: Chapter 1: Overview
Allows 16 input channels from the network Crestron or AMX for the output mixes • Phoenix connector and DB25 options • 16 three band input EQ’s and 8 three band available for permanent installations or output EQs easy passive splits Momentum mo8me Manual... -
Page 7: Description Of Mo8Me
Description of the mo8me The Momentum mo8me is the DSP based mix engine component of Pro Co’s digital snake system. It utilizes 16 network inputs with 3 band EQ and HPF (high pass fi lter). Output mixes can be mono or stereo and include 3 band EQ and panning control. -
Page 8: The Mo8Me
Three character LCD display 4 F1 & F1 Selectors Select and edit mo8me functions 5 Status LED Green = Audio sync present; Red = Network fault 6 Power LED Green = Digital power OK 7 Antenna Communicates with mrc Momentum mo8me Manual... -
Page 9: Front & Rear Panel
See chapter 5 for a more detailed description of the Tweak’s functions. Index Description 1 8 Soft Buttons Used to select functions, EQ bands and saved mixes. 2 Encoder Turn to toggle channels and push down to return to previous screen Momentum mo8me Manual... -
Page 10: Chapter 2: Connection And Startup
Chapter 2 Connection and Startup Power Only use with the power supplies provided by Pro Co Sound. Only use 802.3af PoE power supplies. The Momentum output unit requires 48VDC power to operate. There are two ways to power the unit: Use the Pro Co One Spot power supply. -
Page 11: Network Wiring
IEEE 802.3z Gigabit Ethernet compliant. The following are performance based on the cable type: 220 meter distance use 62.5/125um MMF 160MHz Km Cable 275 meter distance use 62.5/125um MMF 200MHz Km Cable 500 meter distance use 50/125um MMF 400MHz Km Cable 550 meter distance use 50/125um MMF 500MHz Km Cable Momentum mo8me Manual... -
Page 12: Network Confi Guration
Chn=009 Adr=002 Control Device Ethernet Switch CAT5E or CAT6 If running over 48 channels, you MUST set the Ethernet port that is connected to your control PC to multicast filtering. Multicast MAC 01:15:AB:C6:00:00 (See Network Design White Papers) Momentum mo8me Manual... -
Page 13: Setup
Network connections have been found and the network is run- ning. RED indicates there are one of two problems; 1) An Ethernet link is not established or is not connected. 2) The audio sync packet (channel 1) is not found. Momentum mo8me Manual... -
Page 14: Setting Device
PLEASE NOTE: The mo8me can ONLY be set at a sample rate of 48k. All other network devices must also be 48k. A setting for sample rate 96k has been added for future use, but it is not available at this time. Momentum mo8me Manual... -
Page 15: Chapter 3: Control Panel Functions
The fl ow chart below displays each of the controlling F1 and F2 . Descriptions of each functions follow in a guide on pages 16 and 17. [Adr] [rou] [Chn] [Adr] [Sr] [Clr] Address Route Start Sample Clear Display Channel Address Rate Settings Momentum mo8me Manual... -
Page 16: Description Of Functions
Tap F1 to activate Chn “edit” mode. Tap F1 to decrease value. Press F2 in increase value. Channels increase/decrease in groupings of eight. (Off mutes all channels) Press and hold F1 and F2 to execute and save the change. Momentum mo8me Manual... - Page 17 (This WILL NOT effect saved mixes. Saved mixes can only be cleared via a PC) Toggle F2 to select Clr. Tap F1 to activate Clr. (It will flash) Press and hold F1 and F2 simultaneously to execute and save the change. Exit by allowing display to time out. Momentum mo8me Manual...
-
Page 18: Chapter 4: The Tweak
2) Push down to return to previous screen Soft Button (8) Selects functions and menu items based on the display 4 Signal Indicator Indicates the strength of the remote signal 5 Name of Function Displays functions Momentum mo8me Manual... -
Page 19: Powering Up
2. The connecting mo8me address is incorrect (See the New Unit screen to reset the mo8me address, page 22 ) Press any key to continue Pressing any key will take unit to the Communication Time Out screen (See page 20) Momentum mo8me Manual... -
Page 20: Communications Time Out Screen
Retries communication Main Menu Screens Set Up Menu All Setup screen functions are illustrated and detailed in this chapter. (See page 21) Mix Menu All Mix capabilities are illustrated and detailed in Chapter 5. (See page 26) Momentum mo8me Manual... -
Page 21: Setup Menu
SET ROUTE to set each route • SUCCESS! will appear to indicate the selected route has been saved Network channel routes are global to all eight output channels. • • Press EXIT to return to Setup Menu Momentum mo8me Manual... -
Page 22: Connection To A Mo8Me
Out 1 indicates mix channels 1 and 2 are in stereo. (Use soft buttons 1 or 2 to select Out 1); Out 3, 4, 5 and 6 are in mono; Out 7 indicates mix channels 7 and 8 are in stereo. (Use soft buttons 7 or 8 to select Out 7) Momentum mo8me Manual... -
Page 23: Selecting Default Mix & Master User
SAVE soft button to save the setting • Press EXIT to return to Setup Menu Sample of Mix Menu with default mix 3 selected Sample of Mix Menu with ALL selected Setup Menu if default mix 2-8 have been selected Momentum mo8me Manual... -
Page 24: Setting Time-Out & Back Light
Each Tweak in a given environment must have a unique Tweak ID 1-99 • The displayed ID: XX identifi es the selected ID number (i.e. ID: 1) • Press the SAVE soft button to save the setting • Press EXIT to return to Setup Menu Momentum mo8me Manual... -
Page 25: Naming Your Tweak
Turn the encoder to enter your individualized name • Names have a 10 character limit • Use the << >> soft buttons to move curser • Press the SAVE soft button to save the name • Press EXIT to return to Setup Menu Momentum mo8me Manual... -
Page 26: Chapter 5: The Tweak: Mixing
Only master user (mix 1, mix 1 & 2) will be able to clear the EQ (i.e soft button CLR EQ) See next page for description of Master Mix Menu soft buttons. See page 28 for Setting Output Master Mix Levels. Momentum mo8me Manual... -
Page 27: Channel Mix Menu
Allows master user to adjust overall Mute Mutes only the selected channel EQ level of output channel Prev/Next Allows user to scroll input channels Allows master user to adjust EQ level of individual input channels Prev/Next Allows user to scroll input channels Momentum mo8me Manual... -
Page 28: Setting Your Out Channel Master Mix
- Press EQ on Out X Master screen - Press HI, MID or LO soft buttons to adjust EQ levels by turning the encoder - EQ levels will automatically save - Press EXIT to return to Master Out X Menu Momentum mo8me Manual... -
Page 29: Setting Input Channel Levels
Push down on encoder to return to previous menu EQ Specifi cations: High Shelving ... +/-12dB @ 16kHz Mid Peaking ... +/-12dB @ 1.6kHz Lo Shelving ... +/-12dB @ 80Hz HPF ... 12 dB/octave, -3 dB @ 80Hz Momentum mo8me Manual... -
Page 30: Setting Panning For Stereo Channels
Only the selected channel will be heard • Deselect SOLO to put the channel back in the mix • Scrolling to the next channel will automatically deselect SOLO mode • Push down on encoder to return to previous menu Momentum mo8me Manual... -
Page 31: Muting A Channel
Turn the encoder to enter channel name • Names have a 5 character limit • Use the << >> soft buttons to move curser • Press the SAVE soft button to save the setting • Press EXIT to return to Channel Mix Menu Momentum mo8me Manual... -
Page 32: Saving Mixes
SAVE soft button to save the setting • Press EXIT to return to Saving Mixes screen • The saved mix will be displayed as [1] - VOCALS MIX • Push down on encoder to return to Master Mix screen Momentum mo8me Manual... -
Page 33: Recalling Mixes
[1] - VOCALS MIX) • Unit will ask for confi rmation: • Select desired mix again and unit will display SUCCESS! to indicate recall was made • Push down on encoder to return to Master Mix screen Momentum mo8me Manual... -
Page 34: Chapter 6: Mo8Me Specifi Cations
Up to 256 total active system inputs at 48K sampling Onboard memory and programming 0.630 ms A/A latency 48K sampling (no DSP) 1.00 ms A/A latency 48K sampling (with DSP) Open UDP Ethernet communication for 3rd party control Momentum mo8me Manual...
