OPERATING MANUAL
CHISEL-STRIPPER
PM-1600
Order-No. 111 140 000
Fabrication year >2013-01
Professional
Flooring
Technology
Janser GmbH
Böblinger Straße 91
71139 Ehningen
GERMANY
Phone +49 / 7034 / 127-0
Fax
+49 / 7034 / 8838
E-mail: info@janser.com
Internet: www.janser.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM-1600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Janser PM-1600

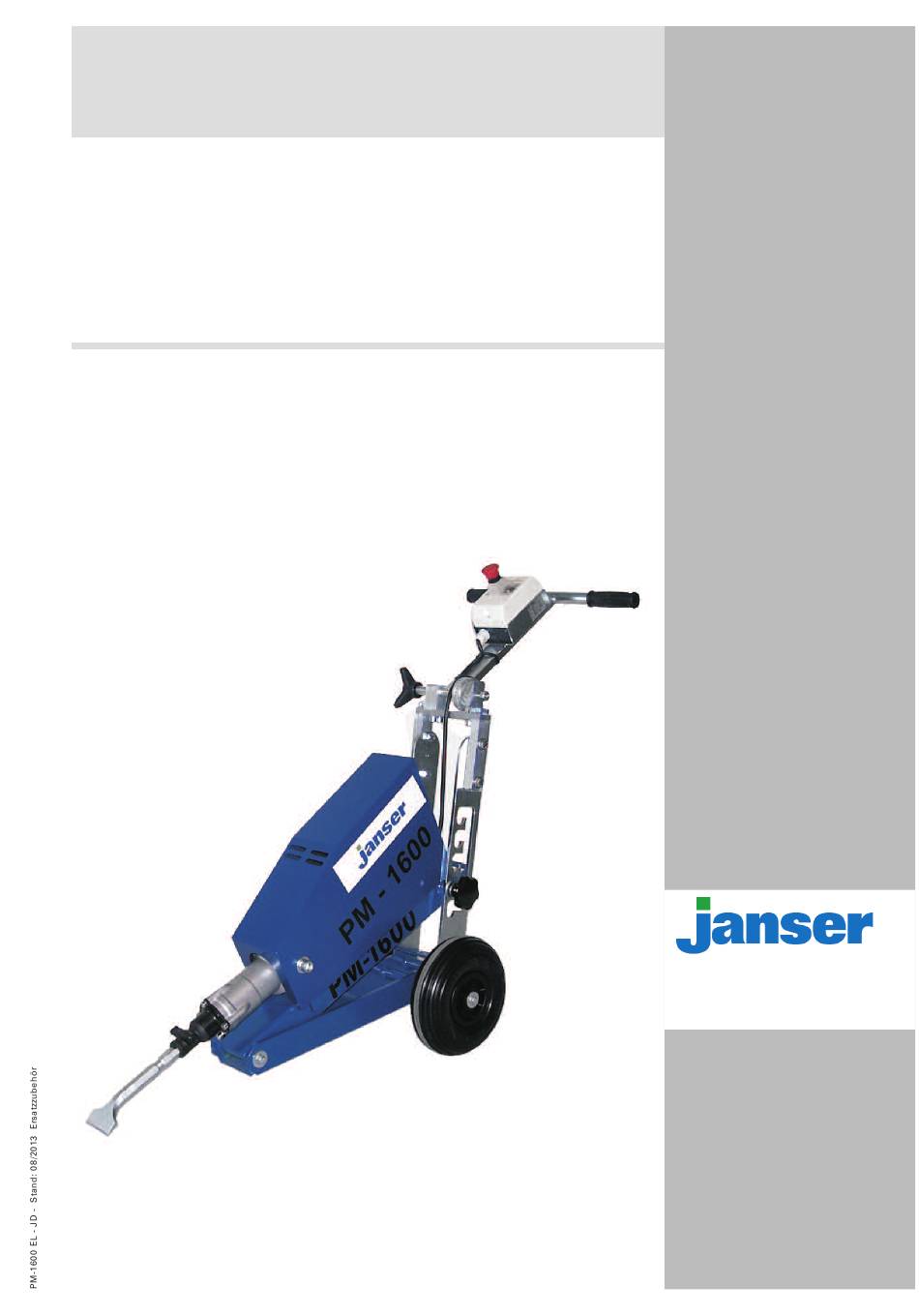

  • Page 1 OPERATING MANUAL CHISEL-STRIPPER PM-1600 Order-No. 111 140 000 Fabrication year >2013-01 Professional Flooring Technology Janser GmbH Böblinger Straße 91 71139 Ehningen GERMANY Phone +49 / 7034 / 127-0 +49 / 7034 / 8838 E-mail: info@janser.com Internet: www.janser.com...
  • Page 3: Table Of Contents

    Chisel-Stripper PM-1600 TABLE OF CONTENTS Rules for Save Operation Product Information Technical Description Technical Specifications Machine Labeling Standard tools Insertable tools Operation Functional elements Preparation 9-10 Start up Mode of operation Maintenance Care Troubleshooting Disposal Ersatzteile 5.1 Anbauteile 16-17 5.2 Motorteile...
  • Page 4: Rules For Save Operation

    Don't move the machine by dragging the cable. Utilization with a damaged cable can cause an electric shock. If the PM-1600 is to be connected to a generator, it must be operated in accordance with the applicable directives (this applies in particular to the protective conductor) to ensure that all safety devices function and to prevent damage to electrical components.
  • Page 5 Chisel-Stripper PM-1600 RULES FOR SAVE OPERATION Staff The operator has to be instructed to the use of the machine before operating. Non observance of the instruction manual before commissioning, adjustment or maintenance could cause serious injury to personal or objects.
  • Page 6: Product Information

    Chisel-Stripper PM-1600 PRODUCT INFORMATION Technical Description The professional electric chisel with chassis. Removes parquet, ceramic tiles, rubber and other flooring or roofing material. Peels off elastic bonding and pvc coatings. Important Features: - adjustable in working angle and height - anti-vibration rubber handles...
  • Page 7: Machine Labeling

    Chisel-Stripper PM-1600 PRODUCT INFORMATION Machine Labeling IDENTIFICATION PLATE Dispose of the machine according to Directive 2002/96 / EC EC conformity Read the operating instructions before use NOTE! Wear ear protection at a sound pressure above 85 dB(A). Standard tools complete with:...
  • Page 8: Operation

    CONNTROL Make sure that all parts listed in the standard accessories are included. The PM-1600 is delivered ready to work. Check if the plug and the cable are in perfect condition. Damaged electrical connection lines must be replaced immediately by a specialist! Install the appropriate insert tool before starting work.
  • Page 9: Preparation

    Chisel-Stripper PM-1600 OPERATION Preparation ALWAYS PULL OUT THE MAINS PLUG BEFORE ADJUSTING! CHOICE OF TOOLS The insert tool depends on the floor covering to be worked. The detachment capacity depends on the working angle and the feed speed. There is no chisel that can do "ALL"! They are always well advised by our experts.
  • Page 10 Chisel-Stripper PM-1600 OPERATION Preparation ALWAYS PULL OUT THE MAINS PLUG BEFORE ADJUSTING! ADJUST WORKING HEIGHT The grip angle is infinitely adjustable and can be individually adjusted to body size or requirements for hand and arm strength. To adjust to the optimum working height, loosen the cross handle and fix the handle top again in the desired position.
  • Page 11: Start Up

    Chisel-Stripper PM-1600 OPERATION Start up When putting the machine into operation, the machine must stand evenly on both wheels and the chisel must rest on the ground. DO NOT TIP MACHINE AS LONG AS IT IS! Make mains connection! The electrical connection must match the information given on the rating plate.
  • Page 12: Mode Of Operation

    Chisel-Stripper PM-1600 OPERATION Mode of operation Hold the machine firmly with both hands by the handles! Do not start the machine without protective cover! Wear personal protective equipment! Make sure that the chisel is not dull. Keep your work environment clean and free of debris to avoid unnecessary chisel wear.
  • Page 13: Maintenance

    Chisel-Stripper PM-1600 MAINTENANCE Care Before any maintenance / care or repair work unplug the power cord. Careful care and regular maintenance of the machine are a prerequisite for function and safety. Malfunctions that have been caused by inadequate and improper maintenance can cause very high repair costs and long machine downtime.
  • Page 14: Troubleshooting

    Chisel-Stripper PM-1600 MAINTENANCE Troubleshooting Fault Cause Solutuon Check mains voltage no electricity connection Device does Power cord defective Replace power cord not start Coals worn out Exchange coals EMERGENCY-operated Unlock emergency stop Undervoltage protection triggered Have parts replaced by a...
  • Page 15 DECLARATION OF CONFORMITY gültig ab 29.12.2009 Janser GmbH Maschinen- und Gerätebau Böblinger Straße 91 71139 Ehningen GERMANY declare under our responsibility that the product Chisel Stripper Type PM-1600 Model Order-No. 111 140 000 Serial-No. ______________________ Year of manufacture ______________________ comply with the EU-Directrives...
