Summary of Contents for ValvTechnologies V1 Series

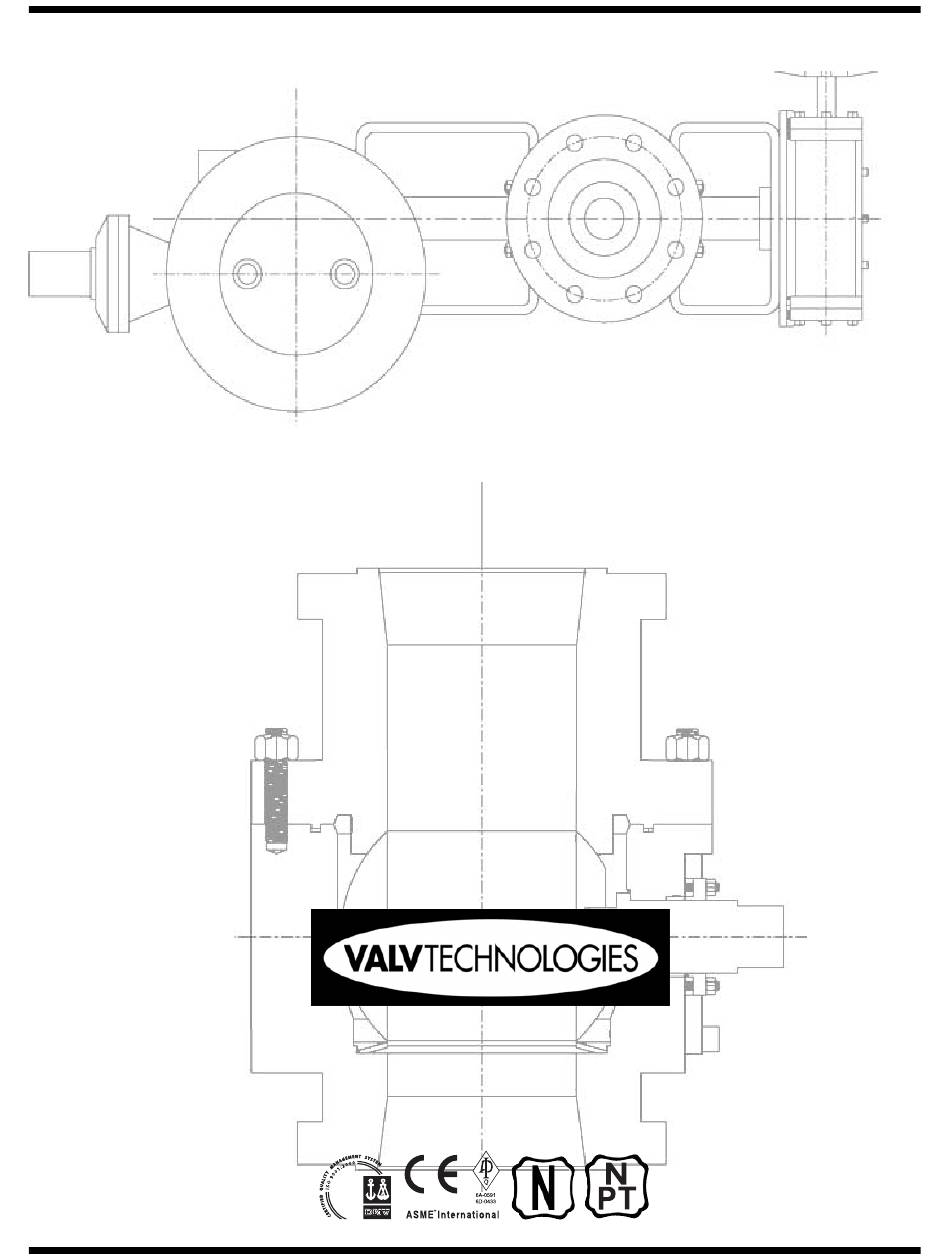

- Page 1 VALVTECHNOLOGIES, INC. BALL VALVE Installation and Operations Maintenance Manual Page...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION PRODUCT DESCRIPTION PART NUMBERING SYSTEM II. INSTALLATION RECEIVING & PREPARATION ACTUATORS ORIENTATION WELDING, STRESS-RELIEVING & INSULATION POST INSULATION PROCEDURES III. OPERATION LUBRICATION TORQUE TABLES STEM ROTATION & POSITION ACTUATORS IV. MAINTENANCE DISASSEMBLY REPAIR & REWORK 10-11 BELLVILLE SPRING HEIGHTS 11-12 RE-ASSEMBLY... -
Page 3: Introduction
Difficulties encountered in the operation or maintenance of ValvTechnologies’ valves should be directed to a ValvTechnologies, Inc. authorized repair facility or distributor, or to its Houston facility. Failure to do so may void the warranty. -
Page 4: Product Description
PRODUCT DESCRIPTION Forged, Forged, Live-Loaded Gland Springs Gland Packing High Pressure High Pressure Gland Actuator Valves Valves One-Piece Mounting Blow-Out Proof Stem High Load Belleville Spring Upstream Seat Guide High Load Belleville Hard coated Spring Ball Hard coated Integral Seat Body Seal Live-Loaded Gland Springs... -
Page 5: Part Numbering System
V1 SERIES BALL VALVE PART NUMBERING SYSTEM* B — 3 — C6 — RF — FP — LV — 2 Example ____ ____ ____ ____ ____ ____ ____ VALVE TYPE TRIM CODE PORT SIZE VALVE SIZE A = Bi-Directional STD = Standard... -
Page 6: Installation
ValvTech- the mid-stroke position before nologies valves except by trained cycling under power. ValvTechnologies personnel. RIENTATION CAUTION! Valves must be installed with the FLOW ARROW pointing from high to low pressure with the valve in the closed isolating position. -
Page 7: Welding, Stress-Relieving & Insulation
CAUTION! Excessive temperature and incorrect insulating or stress Valve must be OPEN relieving technique may damage the valve and void the warranty. during welding. Localized Stress Relief is acceptable, do not furnace stress 800°F MAX. relieve without consulting ValvTechnologies Engineering. MAXIMUM 1100°F DO NOT CAUTION! STRESS RELIEVE Valve insulation is prohibited during stress relieving. -
Page 8: Operation
OPERATION ALVE UBRICATION ValvTechnologies metal-seated ball valve requires NO lubrication. Re-tightening of body (with system de-pressurized) and gland packing bolting is permissible, if leakage occurs in these areas. Required Torque values are given in Tables 1 & 2. The use of Copper-Based Anti-Seize Grease for stud lubrication and Molyb- denum Disulfide Anti-Seize Grease for packing lubrication is recommended. -
Page 9: Stem Rotation & Position
In the event of a conflict between these instructions and those contained in this manual an authorized ValvTechnologies distributor or to ValvTechnologies Houston facility should be contacted. The lubricant of worm gear actuators should be inspected every three months and be replenished or replaced if required. - Page 10 ISASSEMBLY ONTINUED 1) Valve shall be cycled closed. CAUTION! Balls are matched to end 2) Orientation and position shall be marked on valve components, par- caps – these matched pairs ticularly the side of the ball matched to the seat, prior to removal. should never be separated 3) Marking should be indelible to the valve cleaning process, but should or interchanged.
-
Page 11: Repair & Rework
If ball/end cap cannot be re-lapped. The seat must be re-machined, re-coated and re-lapped to the new ball. This must be done by an approved ValvTechnologies facility. The seat may be re-worked several times, as a rework face tolerance is designed into the end cap. -
Page 12: Re-Assembly
1.020 21-1/4 1.390 1.460 NOTE: If dimensions are not within this range, then ValvTechnologies, Inc. Engineering approval is required prior to assembly. ASSEMBLY CAUTION! Only approved ValvTech- NOTE: It is recommended that all internal carbon steel nologies components should be used valve parts and surfaces be coated with light motor oil. -
Page 13: Installing Actuator
The stem MUST be prevented from being driven into the ball. 9) All operator adapter plates supplied by ValvTechnologies have a machined hole in the middle of the plate. When this plate is mounted to the valve, it should be concentric with the shaft before the bolts are tightened holding the mounting plate to the valve. -
Page 14: Pressure Seal
.345 (8.763) 17-1/4 (438) .330 (8.382) .370 (9.398) 19-1/4 (489) .350 (8.89) .390 (9.906) 21-1/4 (540) .380 (9.652) .430 (10.922) Note: If standards are not in this range, then ValvTechnologies Engineering approval is required prior to as- sembly. Page 14... -
Page 15: Lock-Up Gap For Large Bore Valves
Lock-Up Gap for Large Bore Valves NOTE: For small bore (5/8”, 1-1/16” and 2-1/8”), low pressure (150# - 300#) valves, this measure- Max. Feeler Gauge Thickness (F) ment is not taken directly, but is calculated after measuring the spring standoff. 16) Place the upstream seat into the valve body with radius facing the open- ing, end cap end. - Page 16 23) Insert the ball with the mate lapped end facing away from the upstream seat. Spring Standoff 24) Gently place end cap atop the body, maintaining end cap to body face parallel as end cap is lowered onto body. Uncompressed Spring Height Spring 25) Using feeler gauges, measure...
-
Page 17: Complete Assembly
Complete Assembly 26) Remove the end cap and insert the body gasket/seal. 27) Recheck/re-inspect the sealing faces on ball, body and end cap to ensure they were not damaged during handling. 28) Replace all damaged body studs. Apply Copper-Based Anti-Seize Grease high temperature com- pound to the threads. -
Page 18: Testing
TESTING 1) Valves may be tested in accordance with ValvTechnologies’ Quality Procedure, VQP 010. 2) When performing the seat test, the pressure must be applied on the upstream side. The arrow on the valve (or the label indicating the high pressure end) will indicate the direction in which pressure should be applied. -
Page 19: Parts Inventory Planning
Less Frequent Seldom Replaced Rarely Replaced Typically Never Replaced 100% Refer to the Recommended Spare Parts List for V1 Series Ball Valves below. RECOMMENDED SPARE PARTS FOR V1 SERIES BALL VALVES CLASS PART DESCRIPTION QTY/SAME TYPE & SIZE PERCENT COVERAGE... -
Page 20: Factory Authorized Service Centers
Factory Authorized Service Centers TEXAS MASSACHUSETTS BRAZIL PERU ValvTechnologies, Inc. *ValvTechnologies, Inc. Power House Supply HIGH TECH SERVICE SAC São Paulo, Brasil 5904 Bingle Road Newburyport, Massachusetts Lima, Peru +55-12-3939-4522 Houston, Texas 77092 U.S.A. (978) 499-9888 511-376-4101 CANADA Telephone: (713) 860-0400 MINNESOTA INDUSTRIAL FACTORY S.A.
