Summary of Contents for ASTRO U100-C

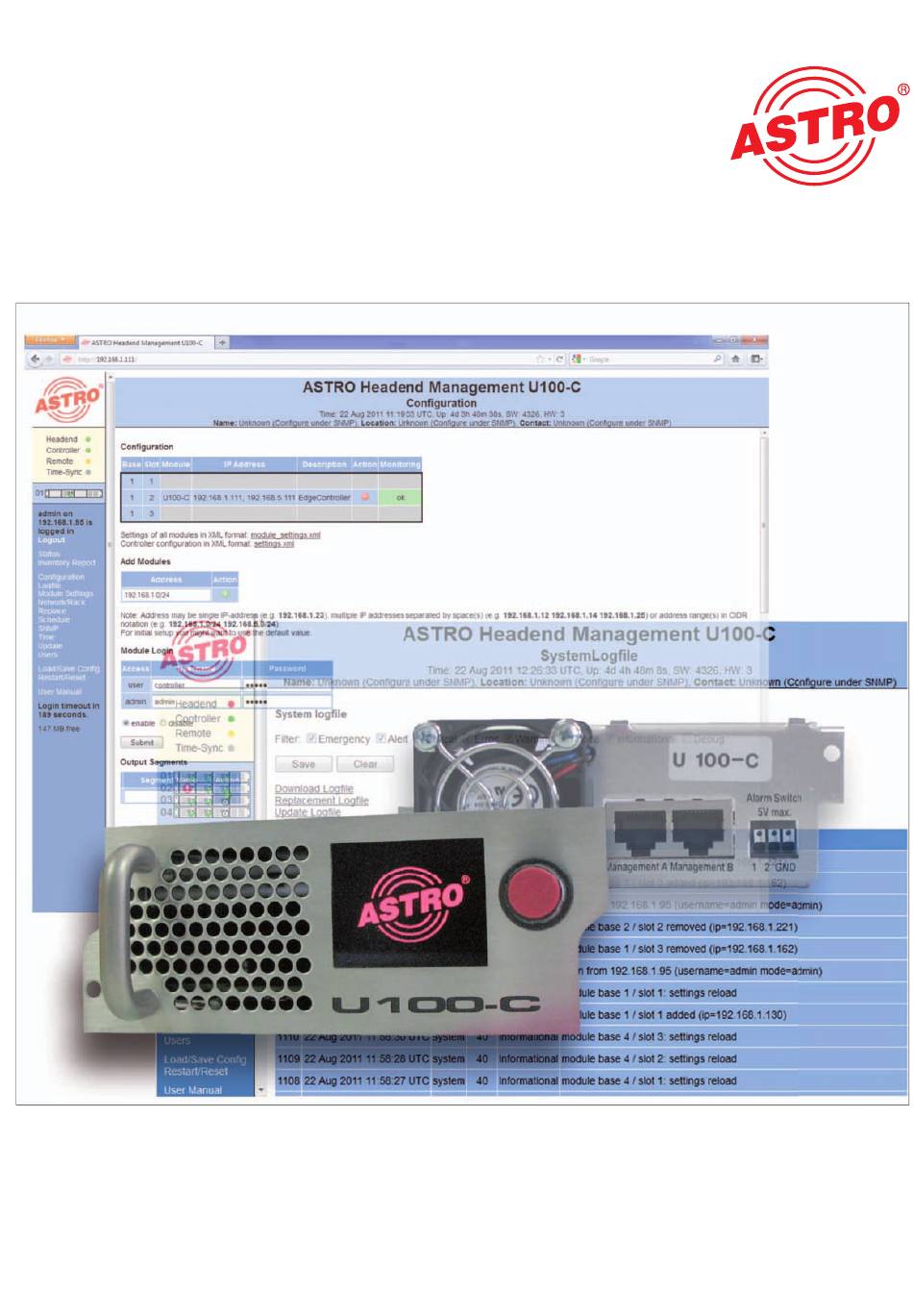

- Page 1 Operating instructions U 100-C Controller...
- Page 2 We expressly recommend reading this manual before installing or operating the device. The ASTRO company confirms the information in this manual to be correct at the time of printing, but it reserves the right to make changes, without prior notice, to the specifications, the opera- tion of the device and the operating manual.
-
Page 3: Table Of Contents
Table of contents 1 Figures .................................4 Introduction ............................5 Description of functions ........................5 Safety instructions ..........................5 Mounting instructions ........................5 Potential equalisation / earthing ......................6 Maintenance and repair ........................6 Service tasks .............................6 Technical data for the mains supply (U 100 SNT - 230 V version) ..........6 Installing and coding the backplane ....................7 2.8.1 Coding the backplane ........................7... -
Page 4: Figures
1 Figures The figures show the U 100-C installed in the U 100 - 230 base unit together with the U 114 IP / PAL signal converters. Control Status display and data wheel, menu switch for slots L = left Display of management IP addresses, M = middle data IP addresses, status messages, etc. -
Page 5: Introduction
When the second power unit is also put into operation, one of the power units runs in idle mode as long as the other unit is supplying power to the device. The device may only be repaired by sending it to ASTRO along with a precise description of the error. -
Page 6: Potential Equalisation / Earthing
U 100 is in operating mode. Replacing power units After the screws on the cover of the power unit chamber (ASTRO logo) are removed, the power units can be pulled out by hand, forwards along the mounting panel. -
Page 7: Installing And Coding The Backplane
Installing and coding the backplane The scope of delivery of every U 1xx signal converter includes a backplane to create the physical connection between the signal converter and the base device. Both the mains HF connections and the network connections are connected to this backplane. The temperature controlled fan for cooling the U 1xx signal converter is located on the backplane. -
Page 8: Installing The Backplane
2.8.2 Installing the backplane In its state on delivery, the back of the U 100 base device is covered with blind panels: Phillips screws Figure 2: Position of the blind panel on delivery of U 100 To remove the blind panel, unscrew the two Phillips screws indicated in the above figure and remove the blind panel. -
Page 9: General Introduction
U 100-C switches itself on automatically. Following a boot phase (approx. 90 seconds), the ASTRO logo appears in the display. The page “Network/Rack”, on which the IP addresses appear, is accessed by turning the control knob. If the device is connected to a PC / laptop via... -
Page 10: Login
In order to change the configuration of the U 100-C, you will have to log in first. In its delivery state, the following access has been set up: Administrator access (required for configuring the controller): User name: admin Password: astro User access (required for configuring operation): User name: user Password: astro You must log in before the U 114 can be configured. -
Page 11: Time Configuration
Figure 7: Example view of the “Network settings” After successfully logging in, the network settings can be configured. These settings are: IP address (address), sub-network mask (netmask) and standard gateway (gateway). Changes are applied using the “Submit” button. Depending on the new allocation of the IP addresses, it may be necessary to adapt the IP settings of the PC / laptop to ensure access to the controller is possible. -
Page 12: Setting Up A User / Rights Management / Log-In Timeout
In delivery status, one user and one administrator have been set up on the U 100-C (admin: user name = admin, PW = astro, and user: user name = user, PW = astro, see chapter 3.2, Log in). Operating Manual U 100-C Controller... - Page 13 A new user is set up in the first blank line underneath any users already created (e.g. line 3 in fig- ure 9). The user name is entered in the column “User”, the rights assigned in the column “Access” and the password is entered in the column “Password”. This password must be entered a second time in the column “'Retype password”.
-
Page 14: Logging The Controller In To The U 1Xx Signal Converter
U 100-C must match the dial-in parameters in the U 1xx signal converter. In default state, two accounts for the module log in have been set up: User account: user name: controller / password: astro Admin account: user name: admin / password: astro... -
Page 15: Adding U 1Xx Signal Converters To The Configuration
3.8 Adding U 1xx signal converters to the configuration Note: Before signal converters U 1xx can be incorporated in the configuration for the U 100-C, it must be ensured that all U 1xx feature different management IP addresses, and all base unit addresses for the U 100-230 / -48 feature different values (see operating manual for the signal converter U 1xx). -
Page 16: Overview Of The Headend
Overview of the headend To simplify the overview of the modules connected to the U 100-C, the U 100-C features several overview pages. These overview pages can be accessed without logging in to the U 100-C con- troller. Changes to the configuration are not possible here. 4.1 Status display The status display can be accessed using the link “Status”... -
Page 17: Output Channel Overview / Channel Overview
4.2 Output channel overview / Channel overview In the output channel overview, all output channels and frequencies used are listed, beginning with the lowest frequency. Using this overview, the output channels can be linked with the ser- vices converted and the slot of the U 1xx signal converter. Figure 17: Example of output channel overview / channel overview 4.3 Material overview / Inventory report Using the material overview, which is accessed using the link “Inventory report”... -
Page 18: Log Files
Figure 18: Example of material overview / inventory report The hardware status of the respective device appears in the line “HW”, and in the line “SW”, the software status is shown. The “Uptime” is the length of time for which the device has been in uninterrupted operation. -
Page 19: Saving And Deleting The System Log Files
Saving and deleting the system log files The log file can be stored using the “Save” button. The file with the content of the log file is gener- ated as “system.log” as standard and can be viewed e.g. using an editor. The “Clear”... -
Page 20: Headend Module Settings / Module Settings
Head end module settings / Module settings The headend module settings can be accessed using the link “Module settings” on the left side of the web interface screen. On the U 100-C, a general distinction is made between active and saved module settings. -
Page 21: Uploading Locally Stored Module Settings / Upload Settings
To write stored module settings into an active headend module, the radio button in the first column of the saved setting required must be activated as well as the radio button in the first column in the “Active settings” field on the module required. The settings are written into the module using the “... -
Page 22: Monitoring The Configuration / Configuration Monitoring
Monitoring the configuration / Configuration monitoring In ongoing operation, the controller monitors the configuration of the modules. If the configuration of a module does not match the configuration filed under “Active settings”, then different proce- dures can be defined: Figure 27: Procedure when detecting “configuration not in sync” When the option “Warning”... -
Page 23: Switching Equivalent Head-End Module Circuits / Replacement
Switching equivalent head-end module circuits / Replacement The U 100-C controller provides an option of manually or automatically switching the replacement module kept in the headend to an equivalent circuit. The settings for this equivalent circuit can be accessed using the link “Replacement” in the left screen side of the web interface. 7.1 Manual switching to equivalent circuits Switching to an equivalent circuit manually is done in the “Replace”... -
Page 24: Removing An Equivalent Circuit
7.2 Removing an equivalent circuit An active equivalent circuit can be identified in the “Replace” display, as in the following example: Figure 29: View of an equivalent circuit After rectifying a fault or e.g. replacing a module, the equivalent circuit can be reversed. This is done by activating the radio button “undo replacement”... -
Page 25: Defining Output Segments / Output Segments
The U 100-C controller provides the option, depending on the fault which has occurred, of estab- lishing an equivalent circuit for the U 1xx signal converter. The conditions for this equivalent circuit are listed in figure 30 and vary depending on which U 1xx signal converter is in use. The selection is applied by pressing “Submit”. -
Page 26: Smnp Settings
The following buttons can be used in the column “Action”: = “Rename segment”: renames the network segment = “Remove segment”: removes a network segment = “Add segment”: adds a network segment Figure 33: Buttons in the “Output segments” field After defining one or more output segments, the column(s) “Output segments” will be added to the table in the “Configuration”... -
Page 27: Updating
SNMP trap receivers can also be set up. To do so, enter the IP address of the trap receiver and then use the “Add trap sink” button to copy this into the column “Action”. In the SNMP MIBs field both the ASTRO Strobel MIB as well as the AstroStrobel-Edge-CTRL MIB can be downloaded. -
Page 28: Displaying Available Update Archives
Line: Input: FTP Server address www.astro-firmware.de Mode Active or passive, depending on the Firewall set- ting FTP Username (e.g. anonymous) Anonymous FTP Password (e.g. guest) Guest Path /Headend-Firmware/u1xx/ The entry is applied using the “Submit” button. Using the “Download” button, any update archives available are loaded from the server. This process can also be done to a schedule (see chapter 10). -
Page 29: Updating U 1Xx Headend Modules
9.4 Updating U 1xx headend modules After successfully uploading the update archive, these are available for updating the diverse U 1xx headend modules or the U 100-C. (see fig. 39). Figure 39: Example view of the “U 100 headend update” field After selecting the action(s) to carry out, the update can be started by pressing the “Update”... -
Page 30: Setting Up Time-Controlled Processes
10 Setting up time-controlled processes The U 100-C controller is able to run processes to a schedule. These processes are, on the one hand, a time-controlled update of the update archives found on the U 100-C, and on the other hand, a time-controlled download of the same update archive. -
Page 31: Storing And Loading The U 100-C Controller Configuration
U 1xx headend modules are downloaded. This information can be evalu- ated at Astro for debugging purposes. In the “Load controller configuration” field the backed up, locally saved U 100 C configuration data can be exported into the controller. -
Page 32: Controller Restart / Reset
12 Controller restart / Reset To restart the controller or to reset it to the factory default settings, you must switch to the cor- responding sub-menu using the link “Restart/reset” on the left edge of the web interface. The following input mask appears: Figure 44: Input mask for controller restart/reset Selecting “Restart”... -
Page 33: Technical Data
13 Technical data Type U 100-C Order number 380 103 Network interfaces (forwarded passively to U 1xx) Protocol IEEE802.3 Ethernet, RTP, ARP, IPv4, TCP/UDP, HTTP, SNTP, IGMPv3 General data Power consumption Housing 19", 1 HE Permitted ambient temperature [°C] 0...+45 Operating Manual U 110-C Controller... - Page 34 Operating Manual U 100-C Controller...
- Page 35 Operating Manual U 110-C Controller...
- Page 36 ASTRO Strobel Kommunikationssysteme GmbH Olefant 1–3, D-51427 Bergisch Gladbach (Bensberg) Tel.: 02204/405-0, Fax: 02204/405-10 eMail: kontakt@astro-kom.de, www.astro-kom.de Operating Manual U 100-C Controller...
