Operating instructions
Interface card
Type IC-8M 3/2-0.9-24 PH
Order code 13 798
Order code 14 024
Order code 15 147
Order code 15 148

Conditions regarding use of this equipment?

1. This equipment should only be used within the limits
detailed in the technical specification. Strict observa-
tion of the technical specification should be ensured at
all times.
all times. When installing the equipment and thereafter
the Customer
shall
ditions at the place of use are taken into consideration.
devices or circuits the Customer shall ensure that
national and local safety laws and regulations are
observed.
4. Should you require further information please contact
your local Festo office.
Was ist beim Emsatz van Festo Elementen zu beachten?
Die Einhaltung der ieweils angegebenen Grenzwefte fur
Es ist auf den Betrieb rnlt ordnungsgemtifl aufbereiteter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IC-8M 3/2-0.9-24 TH and is the answer not in the manual?

Questions and answers

Related Manuals for Festo Pneumatic IC-8M 3/2-0.9-24 TH

Summary of Contents for Festo Pneumatic IC-8M 3/2-0.9-24 TH

  • Page 1: Operating Instructions

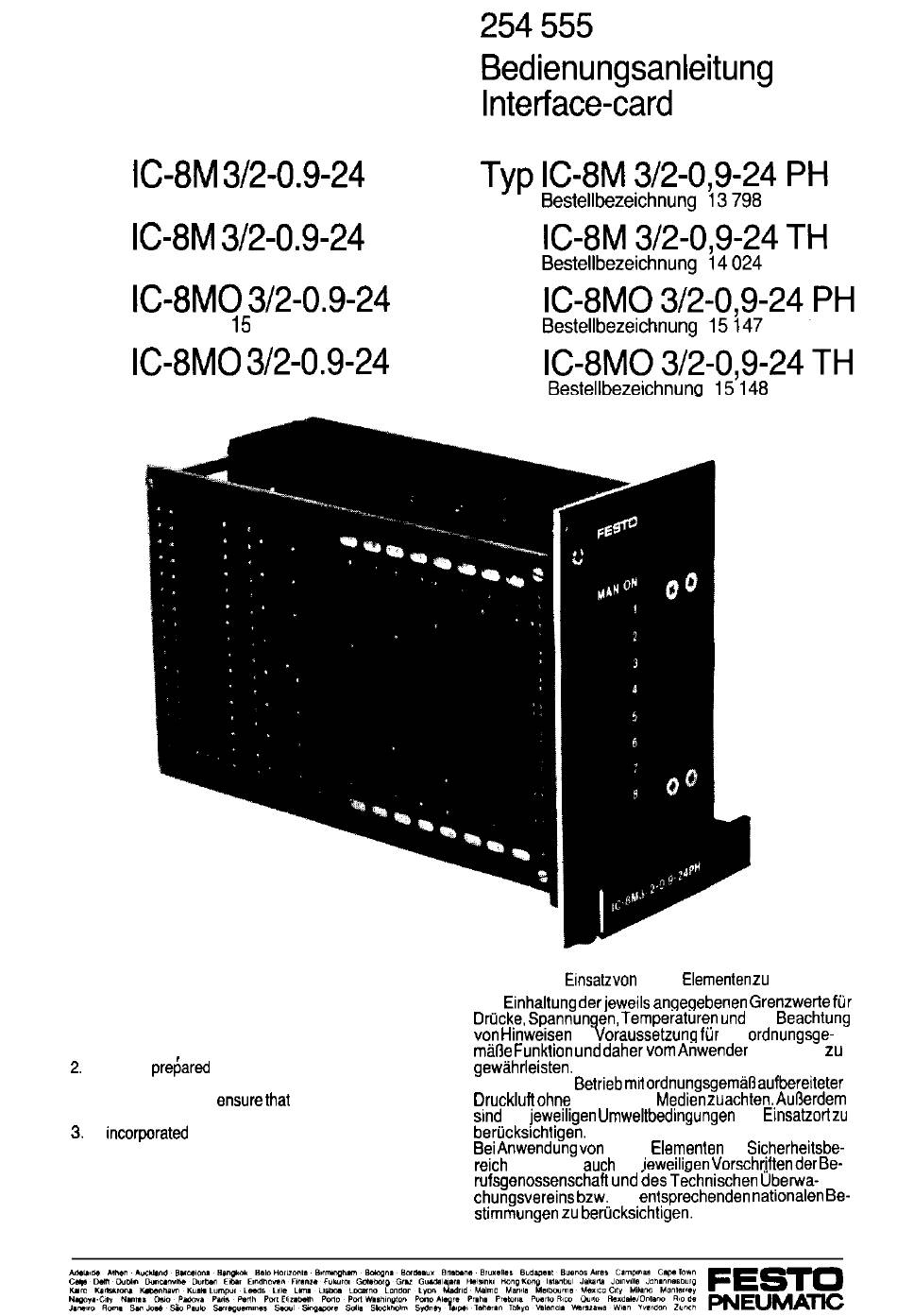

    Operating instructions Interface card Type IC-8M 3/2-0.9-24 PH Order code 13 798 Order code 14 024 Order code 15 147 Order code 15 148 Conditions regarding use of this equipment? Was ist beim Emsatz van Festo Elementen zu beachten? Die Einhaltung der ieweils angegebenen Grenzwefte fur 1.

  • Page 2: Scope Of Delivery

    1. Constructional principle of the 1. Aufbauprinzip der Interface-card Interface card for manual operation (only with order codes 14021, 14022) DIN 41 612, design D, 32 poles a+c for MAN ON “interrupting”/“non interrupting” Scope of delivery: Lieferumfang: Interface card without pneumatic multi tube Interface-card ohne Vielfachsteckkupplung connector (pneumatic manifold) and (pneumatische Anschluf3leiste) und ohne...

  • Page 3: Operating Modes

    2. Installation 2. Montage Gasket @ is inside Interface card 0. face-card @ In view of the possibility of dismantling Fur eventuell spatere Demontage ken- at a later date, apertures in the pneuma- nen Bohrungen in der pneumatischen tic multi tube connector @ may be Vielfachsteckkuppiung @ mit Silicon- sprayed with silicone.
  • Page 4 4. Integrated biock allocation 4. lntegrationsbelegung Unscrew printed circuit board (4 screws) Leiterplatte abschrauben (4 Schrauben) und and pull it out. solenoid valve numbers Should servicing be required, unscrew and lm Servicefall Magnetventil oder Mengen- replace solenoid valve or flow amplifier. Solenoid valve type MEL-3-0.9, Magnetventil Typ MEL-3-0,9, Bestellbezeichnung 14 543...

  • Page 5: Technical Data

    5. Connector allocation 5. Steckerbelegung on installation side auf lnstailationsseite Electric: 15 147 15 148 TH-cards (15 148/14 024) TH-Karte (15 148/14 024): Inputs, positive switching: Eingange Plus-schaltend: Connect PIN row @ and MAN ON- to PIN-Reihe @ und MAN ON-auf GNDt connect MAN ON + to VSS (5 to 24 V).
  • Page 6 For types 14 024 and 15 148 (TH): Supply voltage (VSS): 24 V DC Versorgungsspannung (VSS): 24 VDC Stromaufnahme (alle Magnetventile erregt Current consumption (all solenoid valves energised by VSS): 700 mA. Eingangsspannung (Input 1...8) Input voltage (inputs 1...8) PIN row A: 5 to 24 V DC PIN-Reihe A: 5 bis 24 VDC Activating current (inputs 1 to 8): 10 mA Ansteuerstrom (lnout 1...8 10 mA...
