Summary of Contents for Walkeraid 4200-100

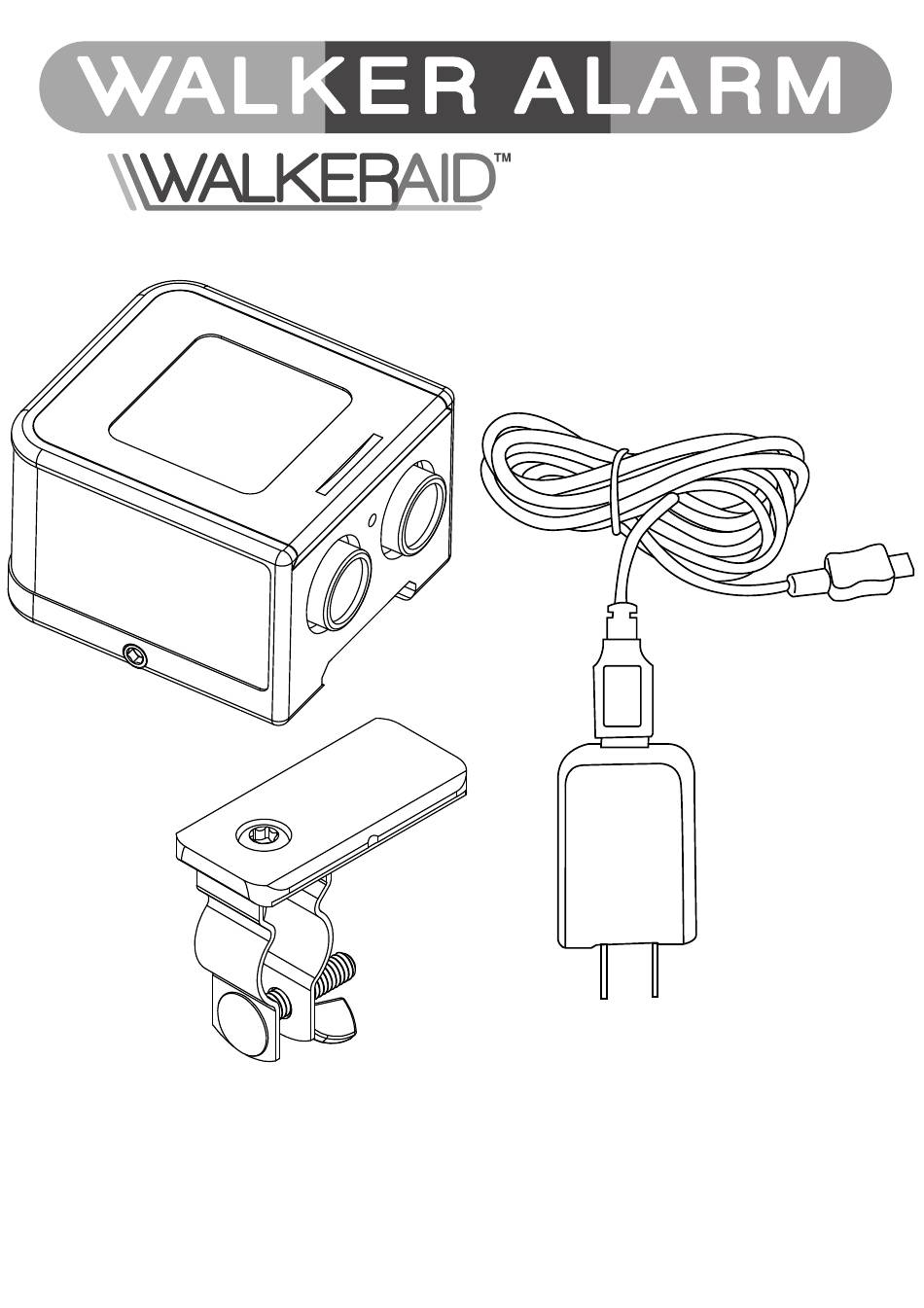

- Page 1 PRODUCT Instruction Manual for Rehabilitation Facilities Model 4200-100 A Computer-Based DME Device Follow this instruction manual to ensure safe use of the Walker Alarm Device.
-
Page 2: Low Battery Indication
START UP CHARGING CABLE ON/OFF SWITCH CHARGING IMPORTANT: Charge the Walker Alarm at least 6 hours; but not more than 24 hours. ➊ Turn switch to OFF position ➋ Plug in charging cable to the wall outlet and plug charging cable into the side charging port on the Walker Alarm. -
Page 3: Switch Setup
16 16 SUGGESTED BEST PRACTICE Select, measure and adjust walker to patient. STEP 2: STEP 1: WALKER IS MEASURE FROM ADJUSTED TO WRIST TO FLOOR. MEASUREMENT FROM STEP 1 Follow the manufacturer’s suggested procedures to fit each style of walker. SWITCH SET-UP ➊... - Page 4 MATCHING WALKER ALARM TO PATIENT NEEDS The Walker Alarm device as shipped from the factory comes with 3 biofeedback controls TURNED ON or in the UP position: 2 3 4 5 6 7 8 Down Factory Switch Setting VIBRATE, ALARM, GLO VIBRATE, ALARM, GLOW Select which feature, and the number of features to be used based on impairment and assessment.
- Page 5 POWER OFF BEFORE CHANGING DISTANCE SETTINGS DISTANCE DIP SWITCH SETTINGS: TWO WHEEL WALKER Suggested Dip Switch Settings 2 3 4 5 6 7 8 E DIP SWITCH SETTINGS: Down 16" Distance Alarm Switch 4 UP, Switch 5 UP, Switch 6 DOWN SLIDE BAR MOUNT 3 4 5 6 7 8...
- Page 6 2 3 4 5 6 7 8 2 3 4 5 6 7 8 POWER OFF BEFORE CHANGING DISTANCE SETTINGS ANCE DIP SWITCH SETTINGS: ROLLATOR WITH STANDARD SEAT Down Suggested Dip Switch Settings 18" Distance Alarm 6" Distance Alarm SLIDE BAR MOUNT Switch 4 DOWN, Switch 5 UP, Switch 6 DOWN 2 3 4 5 6 7 8...
- Page 7 TRAINING ON THE USE OF THE WALKER ALARM 5 INCH ALARM ZONE 16" OR GREATER ALARM ZONE 5" ALARM ZONE: This is the area between the patient and up to 5 inches away from the face of the Walker Alarm. Alarm will activate: The White LED flashes, then the Red LED flashes, the unit vibrates, then there is a BEEP Alarm.
- Page 8 SUGGESTED BEST PRACTICE SUGGESTED BEST PRACTICE Training or refreshing training patient in the use Training or refreshing training patient in the use of the walker. of the walker. CORRECT: INCORRECT: One foot inside Both feet are outside the walker. the walker. Follow this suggested procedure or similar for all types of walkers.
- Page 9 THERAPY SESSION TIME – GOOD TRAINING Slide the Walker Alarm unit SENSORS onto the slide bar mount that is installed on the walker you intend to use. ON/OFF SWITCH SLIDE BAR MOUNT The sensors must be facing the patient. Turn on the Walker Alarm using the ON/OFF switch on the side of the device.
-
Page 10: Lithium-Polymer Battery
DISCLAIMER Walker Aid, LLC is not responsible for a patient fall while using the walker with a Walker Alarm when: • The Walker has not been fitted properly to the patient • The patient has not been trained or is not being properly trained in the use of the walker. -
Page 11: Troubleshooting
TROUBLESHOOTING Computer-based system alerts: Incorrect Switch Position If here is a continuous FLASHING RED LIGHT when turning on the Walker Alarm, turn it off, check the switch 4, 5 or 6 settings and turn it back on. When first turned on if the LED, vibrator, or buzzer doesn’t work, turn the Walker Alarm off, check switches 1, 2, or 3 settings and turn it back on. -
Page 12: Product Specifications
PRODUCT SPECIFICATIONS DURABLE MEDICAL EQUIPMENT DEVICE — DME ( Life of 5 yr+ ) FDA Class I (Exempt) Registration Card documented by Serial Number in case of a recall. Mail in registration card or scan and email card email address on registration card. Factory Notification –...
