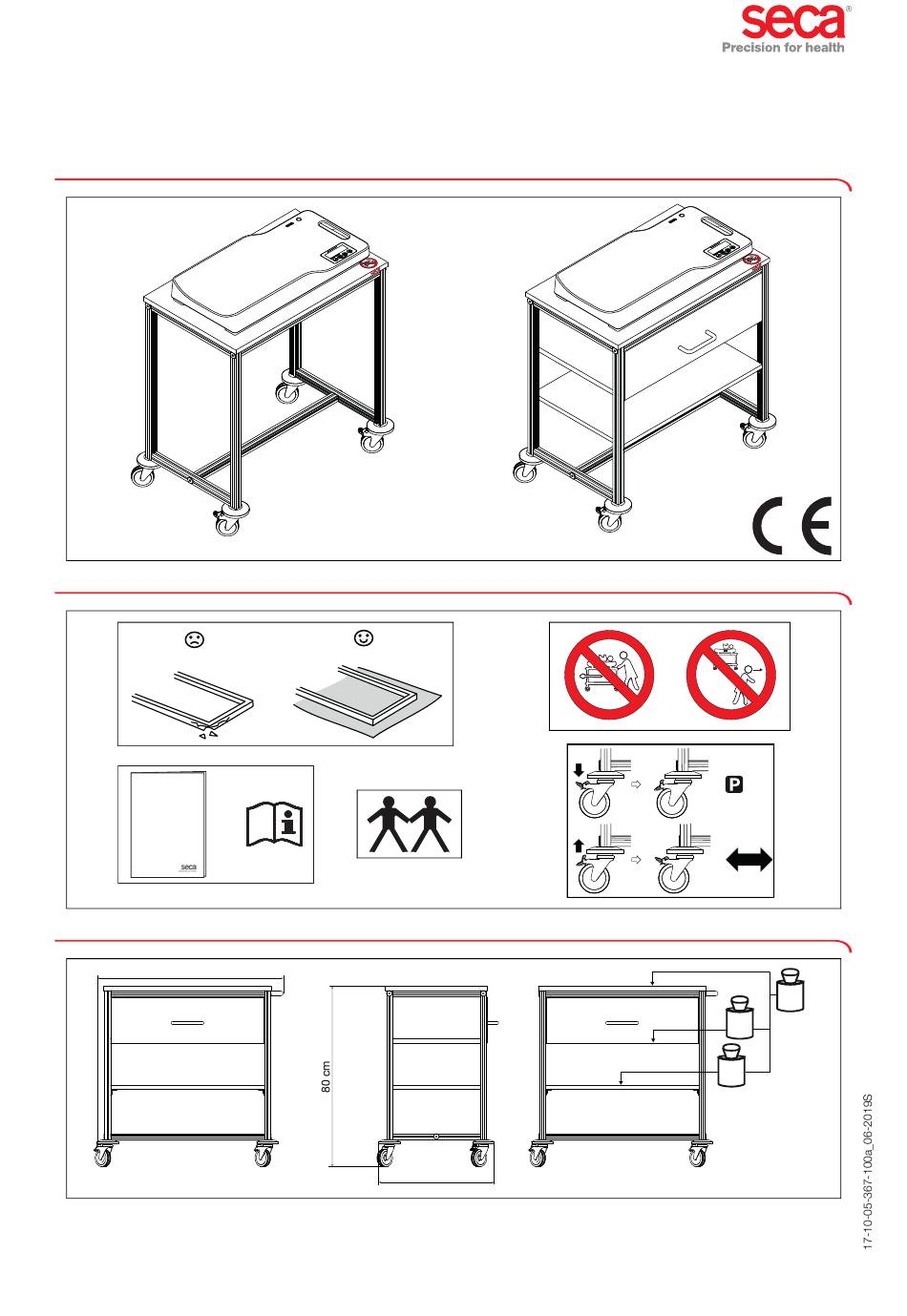

1. PRODUCTS IN THIS MANUAL/INTENDED USE
2. SAFETY PRECAUTIONS
Assembly
instructions
=>
seca 402/403
Baby scale carts
3. DIMENSIONS AND MAXIMUM LOADS (SECA 403 SHOWN)
79,5 cm
Assembly instructions
seca 402/403 baby scale carts
seca 402
Scale shown as example
For compatibility information see section 14.
50 cm
seca 403
=
=
Go!
max
45 kg
max
12 kg
max
6 kg
seca 402/seca 403 • 1
Advertisement
Summary of Contents for Seca 402
- Page 1 For compatibility information see section 14. 2. SAFETY PRECAUTIONS Assembly instructions => seca 402/403 Baby scale carts 3. DIMENSIONS AND MAXIMUM LOADS (SECA 403 SHOWN) 79,5 cm 45 kg 12 kg 6 kg 50 cm seca 402/seca 403 • 1...
- Page 2 4. SECA 402 SCOPE OF DELIVERY M10x54 M5x50 3,5x16 6 mm 4 mm Assembly instructions seca 402/403 PZ 2 Baby scale carts Optional accessory: paper towel holder seca 408 5. SECA 403 SCOPE OF DELIVERY M10x54 M5x54 M5x50 4x40 3,5x16...
-
Page 3: Asemmbling The Frame
6. ASEMMBLING THE FRAME 6 mm M10x54 seca 403 seca 403 7. MOUNTING THE HANDLE 4 mm M5x54 M5x50 seca 402/seca 403 • 3... - Page 4 8. MOUNTING THE CASTORS (SECA 402 SHOWN) 6 mm approx. 15 Nm 6 mm approx. 15 Nm Check and retighten all castors at least once every year! 4 •...
-
Page 5: Mounting The Top Shelf
9. MOUNTING THE TOP SHELF 3,5x16 PZ 2 seca 402 seca 403 seca 402 Placing the scale, see page 7 Mounting the drawer handle, see page 5 10. MOUNTING THE DRAWER HANDLE (SECA 403 ONLY) 4x40 PZ 2 seca 402/seca 403 • 5... - Page 6 11. MOUNTING THE DRAWER (SECA 403 ONLY) 4 mm M5x54 M5x50 12. MOUNTING THE SHELF (SECA 403 ONLY) 3,5x16 PZ 2 6 •...
- Page 7 334 / seca 335 seca 336 / seca 336i / seca 333i seca 378 / seca 376 / seca 374 seca 354 / seca 382 / seca 383 / seca 833 / seca 834 / seca 835 / seca 727 / seca 728...
- Page 8 15. PRIOR TO WEIGHING seca Assembly Baby scales instructions Instructions => seca 402/403 for use Baby scale carts 16. HYGIENIC TREATMENT Cleaning Disinfecting + soap Disinfectant NOTICE: NOTICE: ► ► Do not use aggressive or abrasive cleaning agents. Follow the instructions on the disinfectant.
