Summary of Contents for DDMALL AGS-P-100-4K

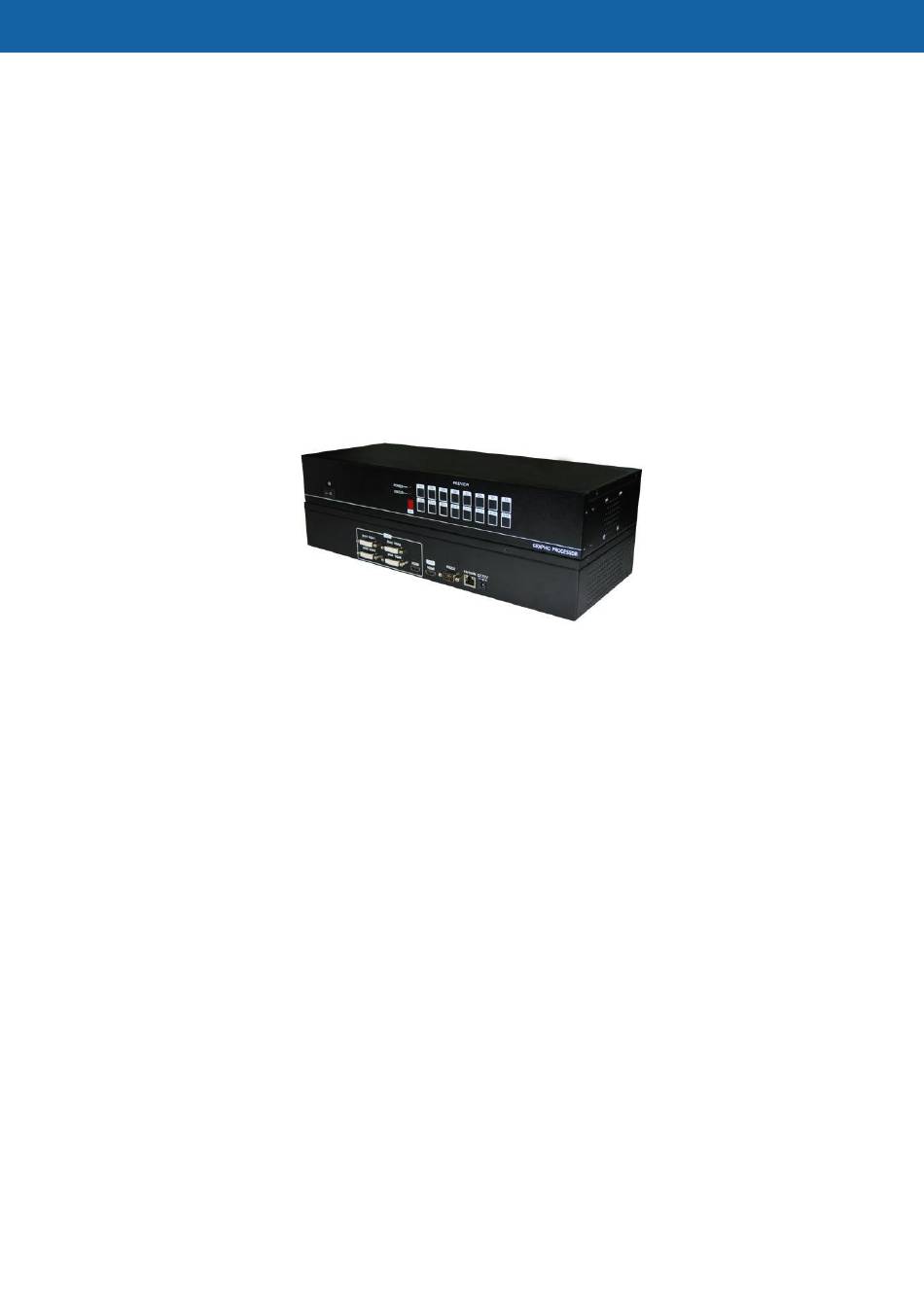

- Page 1 4K Video Multiviewer User Manual Model: AGS-P-100-4K...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Chapter 1. Product Overview 1.1 Safety Instruction..........................1 1.2 Product Introduction.........................2 1.3 Product Appearance........................2 1.4 Product Applications........................3 Chapter 2. Installation Guidelines 2.1 Pre-installation Instructions......................4 2.2 Installation Steps..........................4 Chapter 3. Control Methods 3.1 IR Remote Control..........................5 3.1.1 Introduction............................ -
Page 3: Chapter 1. Product Overview
Chapter 1. Product Overview 1.1 Safety Instruction Thank you for purchasing AGS-P-100-4K Multiviewer. Please read the instructions carefully before you use the device and save this manual for future reference. Power Please use only the power adapter and power cable Repairing is not allowed without permission in order that comes with the device. -
Page 4: Product Introduction
Plug and play performance. No user adjustment is required. 1.3 Product Appearance The AGS-P-100-4K Multiviewer adopts integrated hardware design. The front view and rear view as shown in Figure 1 and Figure 2 respectively. Front View Figure 1... -
Page 5: Product Applications
Rear View Figure 2 1.4 Product Applications The AGS-P-100-4K Multiviewer is ideal for a range of multi-window display system applications that require the capability to simultaneously display multiple video sources on one screen. Such as: Video Conferencing Lecture Hall ... -
Page 6: Chapter 2. Installation Guidelines
Step 4: Make sure all the connection is fine and then supply power to the device. The connection diagram as shown in Figure 3. Figure 3 * NOTE: The AGS-P-100-4K comes with four DVI-I to DVI-D and VGA splitter cables. As shown in Figure 4. Figure 4... -
Page 7: Chapter 3. Control Methods
3.1 IR Remote Control 3.1.1 Introduction The AGS-P-100-4K Multiviewer features IR remote control, which allows users to control the device only using the IR remote controller that comes with the item. It is as convenient as controlling the TV set. -
Page 8: Operation Instruction
in the display menu. Left & Right Pushbuttons Under the idle state, users can select the window by pressing the left or right buttons. [Set] To confirm the operation. [ESC] To cancel the current operation that is about to be executed. [F1] ... - Page 9 (2) Select Signal Source Step1: Press the left or right buttons to select the target window. Step2: Press the [Set] button. Then the SORCE SELECT will appear. As shown in Figure 8. Step3: Select the signal source by pressing the up or down buttons. Step4: Press the [Set] button to complete the setup;...
- Page 10 Figure 10 (4) Call the scene Step1: Under the idle status, press the number of the scene that you have saved. Step2: Press the [Set] button and the operation will come to effect immediately. As shown in Figure 11. Figure 11 (5) Select the Resolution Step 1: Press the [Video] button and the SET RESOLUTION...
-
Page 11: Front Panel Control
Figure 12 3.2 Front Panel Control The AGS-P-100-4K Multiviewer front panel comes with 16 buttons which allow users to fast save and call the scene by pressing the front panel buttons. As shown in Figure 13. Figure 13 Operation Instructions Save the Scene ... -
Page 12: Chapter 4. Faq
Chapter 4. FAQ 4.1 There is no picture in the output Solution 1: Check whether the display device support 4K. Connect the 4K HDMI output to the display device using 4K enabled HDMI cable. Solution 2: If the display device is not 4K enabled, please press the [Video] button to choose the correct output resolution. -
Page 13: Hdmi Output Display Malfunction
④ Four Screen Display: Display up to four 1080p signals. All the windows can display any four DVI/VGA signal sources. ⑤ 4K Based Window Display: The large window can display signals from [DVI1 VGA1], [DVI2 VGA2] or 4K HDMI input connectors. The two small windows can only display the signals from [DVI1 VGA1] and [DVI2 VGA2] connectors. -
Page 14: Hd Resolution Output Without Picture
Figure 16 4.5 HD resolution output without picture Please make sure the refresh rate of the signal source is 60Hz. If not, please change it to 60Hz.
