Velleman Instruments HPS140MK2 User Manual

Velleman Instruments HPS140MK2 User Manual

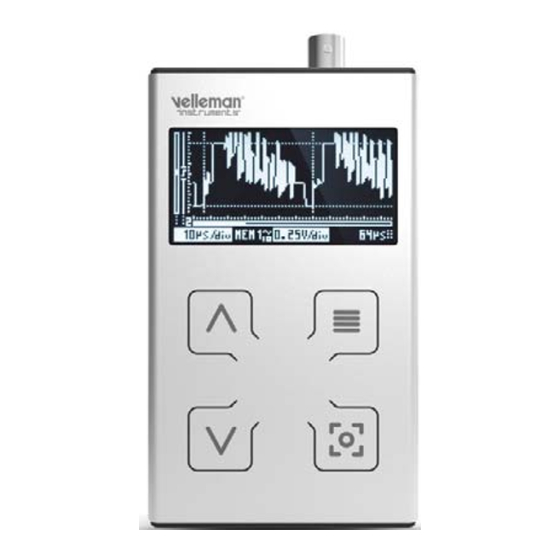

Handheld oscilloscope

Advertisement

USER MANUAL
HANDHELD OSCILLOSCOPE
HPS140MK2
W W W . V E L L E M A N P R O J E C T S . E U

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HPS140MK2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Velleman Instruments HPS140MK2

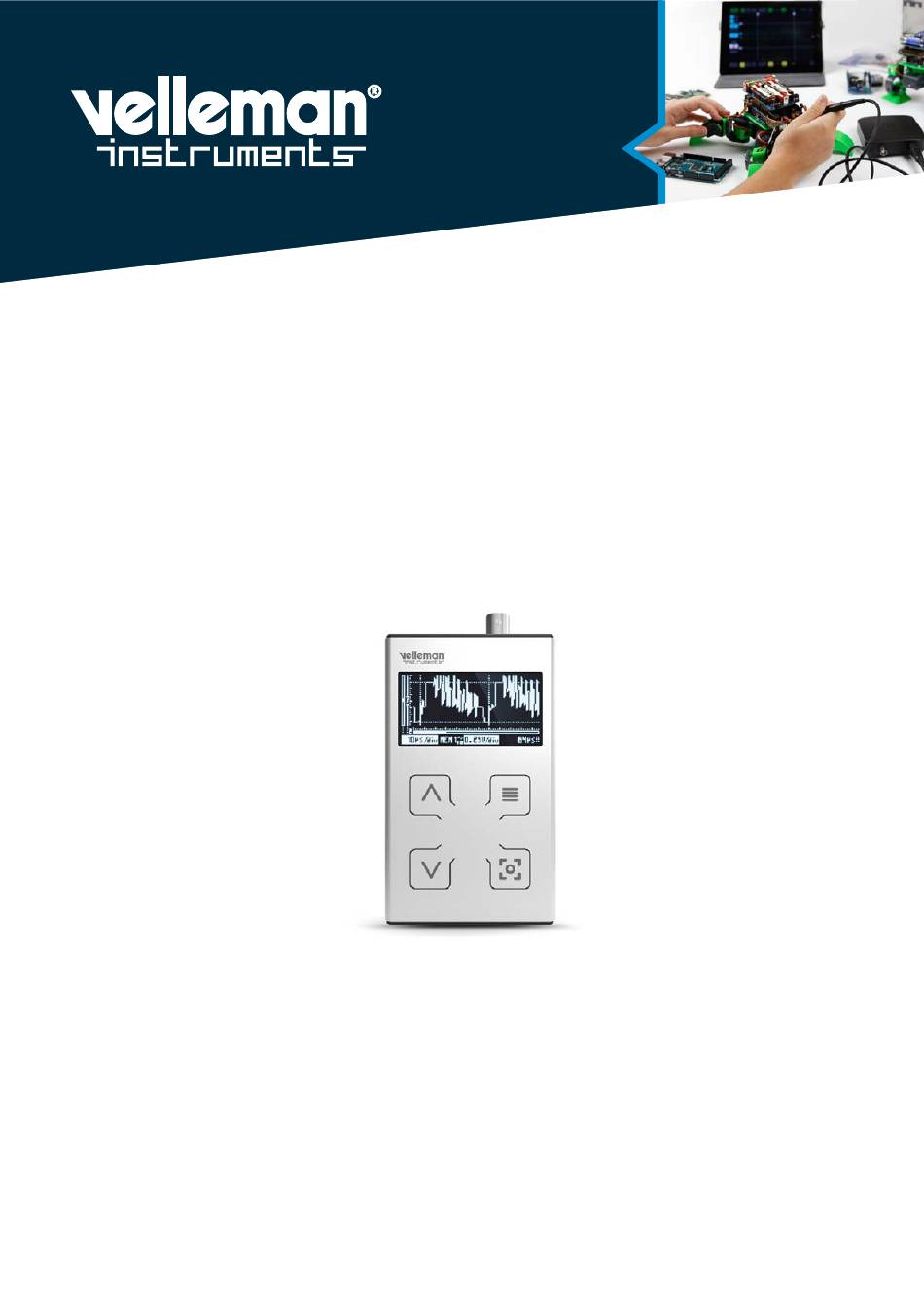

  • Page 1 USER MANUAL HANDHELD OSCILLOSCOPE HPS140MK2 W W W . V E L L E M A N P R O J E C T S . E U...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety information During Use Specifications & features Quick use of the oscilloscope Front panel Top and bottom Replacing the batteries Short menu Extended menu Hold function Use the markers and recall the memory Component test mode To all citizens of the European Union Important environmental information about this product This symbol on this unit or the package indicates that disposal of this unit after its lifecy- cle could harm the environment.
  • Page 3: Safety Information

    Use a measuring probe with an insulated connector when measuring voltages exceeding 30V. • For X10 probe: match the frequency response to the oscilloscope input by adjusting the compensation trim- mer on the probe, see probe manual. PROTECTIVE POUCH FOR VELLEMAN INSTRUMENTS HPSP1 USER MANUAL HPS140MK2...
  • Page 4: Specifications & Features

    • sensitivity down to 0.1 mV • signal markers for amplitude and time • memory hold function • optional: - HPS141: component tester for pocket scope HPS140MK2 - HPSPR1: X10 measuring probe - HPSP1: Velleman Instruments pouch SPECIFICATIONS • input range: 1 mV to 20V / division in 14 steps •...
  • Page 5: Quick Use Of The Oscilloscope

    6. signal position indicators (X and Y scroll bar) 7. trigger level and slope indicators 8. last selected function indicator TOP AND BOTTOM 9. on/off switch 10. BNC input connector: maximum input 100Vp! 11. X10 probe test signal USER MANUAL HPS140MK2...
  • Page 6: Replacing The Batteries

    Note: The menu will exit automatically if no button is pressed for a few seconds, or exit by a long press on the menu button. Hint: In most settings, hold the UP or DOWN button pressed to activate the auto-range function. USER MANUAL HPS140MK2...
  • Page 7: Extended Menu

    1. Press and keep the ‘hold’-button to store the frozen screen until MEM1 appears. 2. Your signal is stored in MEM1, if a signal was previous stored, this signal is moved to MEM2. 3. Press the ‘hold’-button briefly to release the screen for measurements. USER MANUAL HPS140MK2...
  • Page 8: Use The Markers And Recall The Memory

    Using the extended menu you can additionally: • change the ‘time’ marker readout setting (time or frequency) • set the “x10” probe readout • select the desired voltage readout • move the signal in X position • change the display contrast USER MANUAL HPS140MK2...
  • Page 9: Component Test Mode

    USING THE COMPONENT TESTER In order to use the component tester, an optional adaptor (HPS141) is required. Full manual coming soon. USER MANUAL HPS140MK2...
  • Page 10 ORDERCODE: HPS140MK2 REVISION: HHPS140MK2 VellemanProjects @Vel_Projects VELLEMAN nv - Legen Heirweg 33, Gavere (Belgium) vellemanprojects.com...
