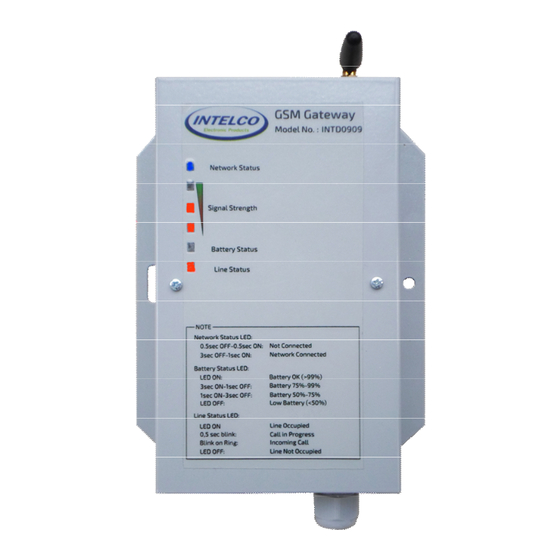

GSM Gateway INTD0909
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Please read carefully the instructions in order to
get all the benefits of this device.
voice / data
General Description - Specification
Wiring-Connection
Quick-Start Setup
LEDs Indication
SMS programming codes
Extra Information - Technical support
Quick-Start Manual
www.pelekis.tech
Rev. 1.01
March 2016
Advertisement
Table of Contents
Summary of Contents for INTELCO INTD0909
- Page 1 Quick-Start Manual GSM Gateway INTD0909 voice / data Page 2 General Description - Specification Page 3 Wiring-Connection Page 4 Quick-Start Setup Page 5 LEDs Indication Page 6 SMS programming codes Page 7 Extra Information - Technical support Please read carefully the instructions in order to get all the benefits of this device.
-
Page 2: General Description
General Description: The GSM gateway INTD0909 is an electronic device which can be used as a stand alone voice & data communication gateway for almost any remote use. It is specially designed for elevator installations and combined with INTD0900, it unlocks many features for reliable, robust and secure emergency GSM/Phone line calls. -
Page 3: Wiring Connection
Make a short circuit at the jumper “RESET” beside of the terminal BAT. Fuse Power Battery (6,3V) Outputs RESET Inputs Line Battery LED Indication Network INTELPHONE signal strength Net Status External SIM Card INTELCO ELECTRONICS ISO9001/2015 Rev. 1.01 March 2016... -
Page 4: Quick-Start Setup
Voice Ready SMS Ready Data Ready (Not Available) Battery check Functions with “SIM Card not detected” : Limited Voice Ready ( International Emergency Number (112)) Battery check INTELCO ELECTRONICS ISO9001/2015 Rev. 1.01 March 2016... -
Page 5: Leds Indication
Battery not connected Signal Leds LED status Description Signal not Detectable or < -115dBm Signal < - 91dBm (Weak) Signal < - 71dBm (Good) Signal < - 51dBm (Excellent) *Blink is in seconds. INTELCO ELECTRONICS ISO9001/2015 Rev. 1.01 March 2016... - Page 6 ‘ * ’ : Save or Act on variable. ‘ ? ’ : Ask the content of variable. ‘ # ’ : Change parameter field. ‘ , ’ : Change scope of variable if more than one Ex.( #0000#7#R1=1,r8:0,r7=0,r1=0* ) INTELCO ELECTRONICS ISO9001/2015 Rev. 1.01 March 2016...
-
Page 7: Extra Information
GSM Reference Manual which is uploaded at our website. Technical Support For technical support of this product, please refer to the local distributor or contact Intelco Electronics. Intelco Electronics Contact Info : Tel. :+30 210 23 23 345 Fax :+30 210 23 86 382 E-mail : info@intelco.com.gr Website : www.intelco.gr... - Page 8 INTELCO ELECTRONICS ISO9001/2015 Rev. 1.01 March 2016...
