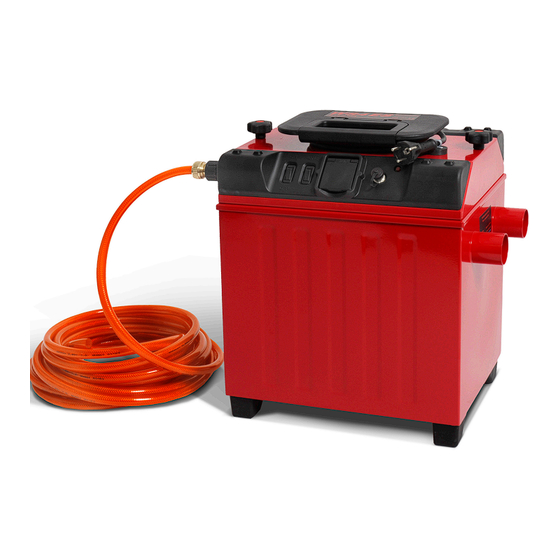

Summary of Contents for CorroVenta WS4 ES
- Page 1 WS4 ES WATER SEPARATOR USER MANUAL...
-
Page 3: Table Of Contents
Functional overview, WS4 ES ........................6 Delivery inspection ............................. 6 Product Overview ............................7 Installation ..............................8 Use of WS4 ES with digital ES-family turbine ..................9 Function and indicator signals ........................9 After finished job, dismount ........................11 Maintenance and service .......................... 12 Filter replacement .......................... -
Page 4: Intended Use
As all other Corroventa machines, the WS4 ES is of a very robust design, a prerequisite for a very long life. Its housing is made of stainless steel and the built-in, submersible pump was selected for its ruggedness and suitability for this very tough environment. -
Page 5: Manufacturing Directive
Manufacturing Directive The Corroventa WS4 ES is CE approved. Waiver of Liability Faulty, incorrect installations and/or incorrect use can cause damage to property and human injury. The manufacturer assumes no responsibility or liability for damages or injuries caused by non- compliance with the instructions herein, use for other purposes than the intended, or failure to observe its warnings. -
Page 6: Safety Information
21. The machine must never be used with any other accessories than those listed in this manual or those specifically approved by Corroventa Avfuktning AB. For further advice on product safety and use, please contact the supplier. -
Page 7: Use Of Ws4 Es For Suction Drying
Particularly in the beginning of the process the turbine normally pulls free water from the construction and this is where the need for a WS4 ES water separator arises. The system inlet is through hose/hose system connected to the construction and the outlet is connected to the turbine so that all air from the construction passes the filter before it reaches the turbine. -
Page 8: Functional Overview, Ws4 Es
Functional overview, WS4 ES The Corroventa WS4 ES filtering process functions as depicted and described below. Inlet from water damaged construction Step 1, Coarse filter Step 2, Water separation Step 3, air filter Outlet to turbine or Kombi machine Delivery inspection... -
Page 9: Product Overview
Product Overview Below pictures present the WS4 ES with all its external features and controls Power outlet, System bus turbine or Kombi connector, Manual machine interoperability pump activation with the digital ES- family turbines On/off, power switch Signal LED Inlet, connected to hose/hose system leading to the construction to be dried. -
Page 10: Installation
Always use the power outlet on the WS4 ES machine to supply the turbine or the Kombi machine to ensure that it is stopped when the pump is activated. If the turbine/Kombi machine does not stop, the pump will not be able to empty the machine and water will reach turbine or the Kombi machine. -
Page 11: Use Of Ws4 Es With Digital Es-Family Turbine
When using the WS4 ES water separator with a new ES family turbine, the power cable connection to the WS4 ES can be supplemented with a system cable so as to allow for the turbine to count how many cycles the WS4 ES has performed which is a good indication of how much water has been removed. - Page 12 The WS4 ES indicator signals shall be understood and managed as follows: Alarm Action A series of single flashes means that the levels sensors do not work correctly. The WS4 ES will continue to operate but the machine might not be fully emptied in each cycle and thus the pumping cycle frequency may increase.
-
Page 13: After Finished Job, Dismount
3. Turn the WS4 ES off and disconnect power. 4. Disconnect hoses. At a suitable location, loosen and remove the lid. With water, clean and empty the WS4 ES of all collected dirt and dust. If it is dirty, replace the filter ©... -
Page 14: Maintenance And Service
Lift it out of the machine. Sensors, pump stop Overflow sensor and, higher up, pump start. Pull the filter inwards to remove it. Push the new filter in position on pipe. © Corroventa Ltd. 2017.02 12 (15) -
Page 15: Cleaning The Ws4 Es
Cleaning the WS4 ES The WS4 ES should, for maximum life length and reliability, be cleaned after usage and this is very easily done. The WS4 ES must be made powerless before it is cleaned. Loosen the lid by turning the knobs anti-clockwise and the remove it. -
Page 16: Fault Finding
If the problem(s) still remain, contact your retailed for repair. It is not possible to There is no water in the If the WS4 ES does not detect any water, the start the pump WS4 ES. pump will not start. -
Page 17: Technical Data
Verify that it is connected to the power outlet of the WS4 ES, that it is activated and that there is power to the WS4 ES. WS4 ES failure. If the above has not helped, restart the WS4... - Page 18 DO YOU HAVE ANY QUESTIONS OR DO YOU NEED OUR SUPPORT? Please visit www.corroventa.com or call us at +44 (0)161-244 95 23 and speak to an expert. We have the knowledge and the equipment to find a solution as efficiently as possible.
