Operating Instructions
Compressed Air Foam Devices
MicroCAFS
MC6SP10
®
PBK
MicroCAFS
MC6SP9/12
®
PBK
MicroCAFS
MC6SP50 T
®
PBK
MicroCAFS
MC6SP50 S
®
PBK
The operation Instructions must be read and understood in their
entirety before initial operation.
Updated: 11/02/2019
Subject to change without notice!
Page 1 of 12
Advertisement
Summary of Contents for MicroCAFS PBK MC6SP12

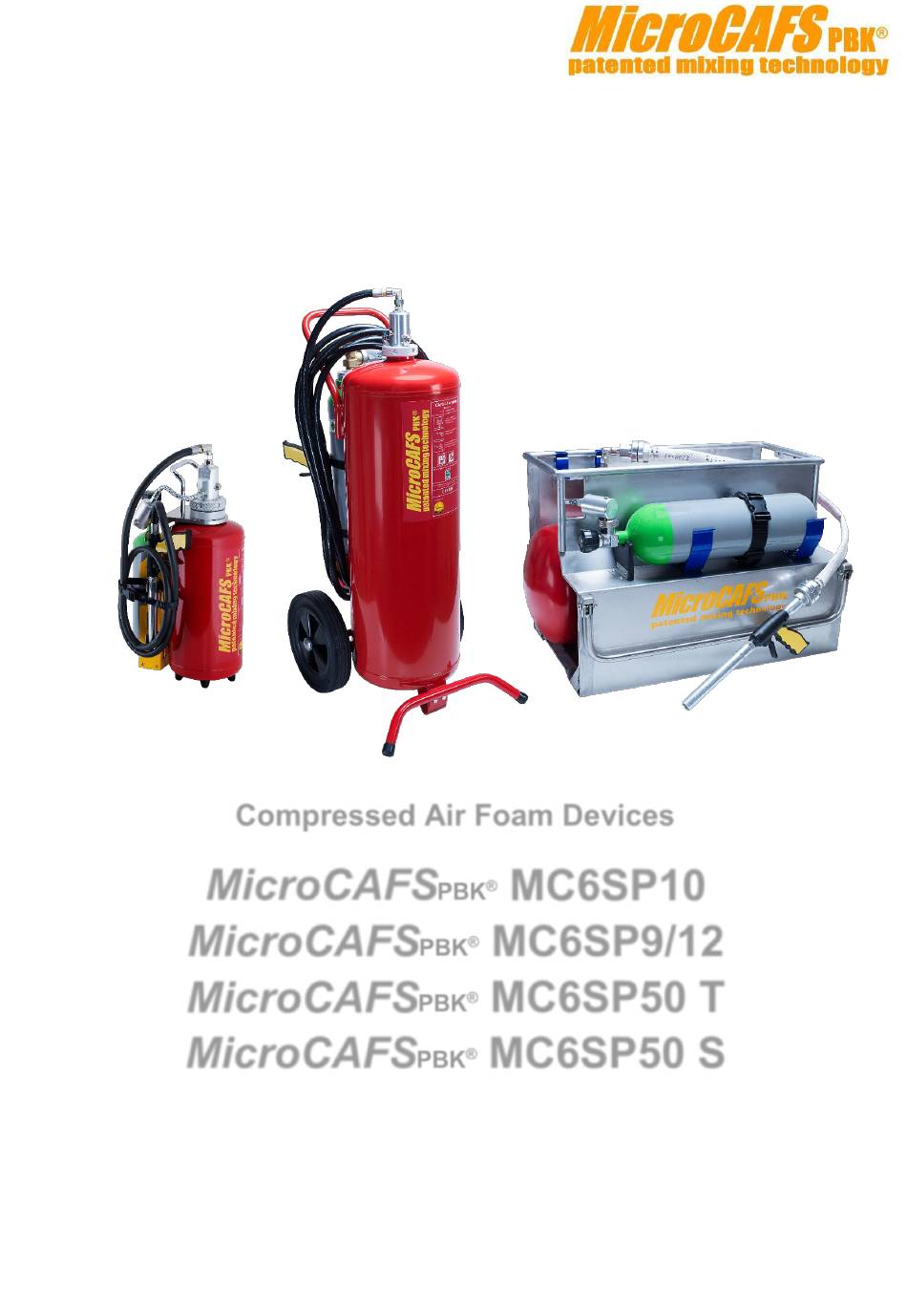

- Page 1 Operating Instructions Compressed Air Foam Devices MicroCAFS MC6SP10 ® MicroCAFS MC6SP9/12 ® MicroCAFS MC6SP50 T ® MicroCAFS MC6SP50 S ® The operation Instructions must be read and understood in their entirety before initial operation. Updated: 11/02/2019 Subject to change without notice! Page 1 of 12...
- Page 2 Technical Specifications MC6SP10: Extinguishing capacity: 10.4 litres Compressed air cylinder: 2 litres at 300 bar Operating pressure: approx. 7.5 bar Hose length: 2 metres Weight: approx. 22.5 kg Foam agent: e.g. 0.3 litres AFFF 3%, details on page 8 Throwing range: up to approx.
- Page 3 Technical Specifications MC6SP9/12: Extinguishing capacity: 9 litres standard /12 litres total approx. 12.5 litres total cylinder capacity Compressed air cylinder: 2 litres at 200 bar Operating pressure: approx. 6 bar Hose length: 2 metres Weight: approx. 22.3 kg at 9 litres charge Foam agent at 9 litres: e.g.
- Page 4 Technical Specifications MC6SP50 T: Extinguishing capacity: 50 litres * Compressed air cylinder: 6 litres at 300 bar Operating pressure: approx. 7.5 bar 10 m ½“ hose of good dimensional stability Hose length: Weight: approx. 95 kg at 50 litres charge Foam agent at 50 litres: e.g.1.5 litres AFFF 3%, details on page 8 Throwing range:...
- Page 5 Technical Specifications MC6SP50 S: Extinguishing capacity: 50 litres * Compressed air cylinder: 6 litres at 300 bar Operating pressure: approx. 7.5 bar Hose length: 15 m hose with coupling D Weight: approx. 100 kg at 50 litres charge Foam agent at 50 litres: e.g.
-
Page 6: Safety Instructions
Safety Instructions: Observe the following instructions so as to protect yourself and others form harm and the device and environment from damage: • The operator is obliged to follow existing relevant national regulations by performing inspections before initial operation and subsequent repeated inspections with respect to the Pressure Equipment Directive 2014/68/EG. - Page 7 General Tactical Instructions: • Generally speaking, successful extinguishing by sweeping with the jet pipe requires foam to be discharged across the largest area possible in the shortest time. Approaching the fire in an aggressive manner, with adequate personal protection, is successful for small and forming fires. •...
- Page 8 General Technical Instructions: For smooth operation of the device, the following points should be observed: • The device functions with all commercially available foam agents in the concentrations specified by the manufacturer. Please not that the foam agent must be storable in the pre-mixed state with water. •...
- Page 9 Device Description + Operation: Carrying handle Mixing chamber head Pressure reducer Extinguishing agent hose with discharge nozzle Extinguishing agent Compressed air cylinder cylinder MC6SP10 Pressure reducer Extinguishing agent hose with discharge nozzle Carrying frame Mixing chamber head Compressed air Extinguishing agent cylinder cylinder MC6SP9/12...
- Page 10 Pressure reducer Mixing chamber head Extinguishing agent Compressed air hose with discharge cylinder nozzle Extinguishing agent cylinder Carrier MC6SP50T Pressure reducer Mixing chamber head Extinguishing agent hose with discharge Carrying frame nozzle Extinguishing agent Compressed air container cylinder MC6SP50S 1. remove nozzle with hose 2.
-
Page 11: Charging The Device
Charging the Device: To guarantee smooth operation and right function and to avoid damage and unjuries always take care to proceed in following sequence: • Close the compressed air cylinder valve. • Release the remaining pressure in the extinguishing agent cylinder with the discharge horn. -
Page 12: Maintenance Instructions
Authorised personnel may only carry out maintenance and repair work. The manufacturer or dealer will answer any related questions. MicroCAFS ® MicroCAFS PBK GmbH Burgwaldring 4 D- 86697 Oberhausen +49 (0) 84 31 - 50 97 - 0 +49 (0) 84 31 - 50 97 - 22 info@microcafs.de...
