An EXCLUSIVE kit brought to you by -

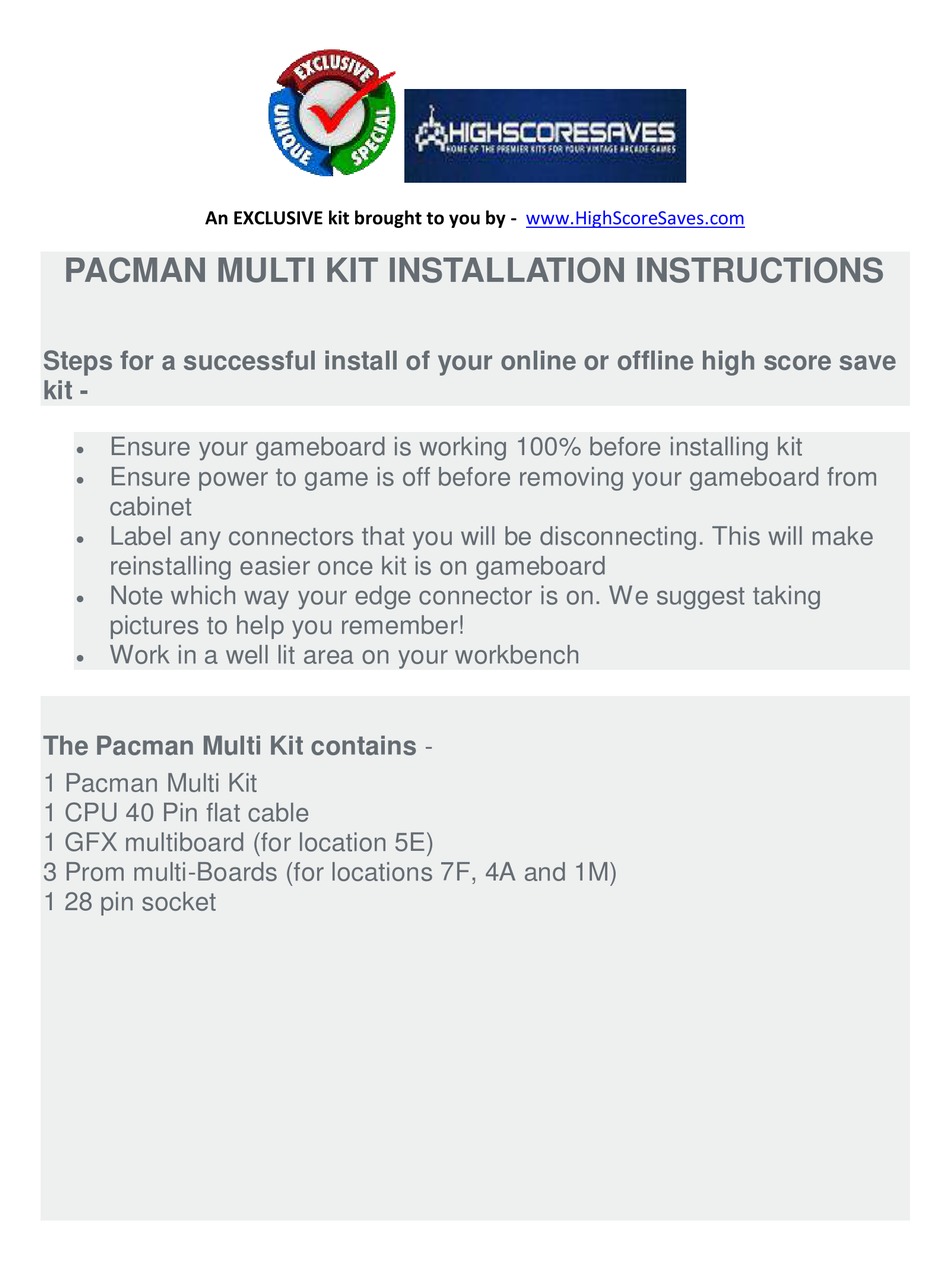

PACMAN MULTI KIT INSTALLATION INSTRUCTIONS
Steps for a successful install of your online or offline high score save
kit -
Ensure your gameboard is working 100% before installing kit
Ensure power to game is off before removing your gameboard from
cabinet
Label any connectors that you will be disconnecting. This will make
reinstalling easier once kit is on gameboard
Note which way your edge connector is on. We suggest taking
pictures to help you remember!
Work in a well lit area on your workbench
The Pacman Multi Kit contains -
1 Pacman Multi Kit
1 CPU 40 Pin flat cable
1 GFX multiboard (for location 5E)
3 Prom multi-Boards (for locations 7F, 4A and 1M)
1 28 pin socket
www.HighScoreSaves.com
Advertisement
Summary of Contents for High Score PACMAN MULTI KIT
- Page 1 An EXCLUSIVE kit brought to you by - www.HighScoreSaves.com PACMAN MULTI KIT INSTALLATION INSTRUCTIONS Steps for a successful install of your online or offline high score save kit - Ensure your gameboard is working 100% before installing kit ...
- Page 2 Offline Multi Kit Online Multi Kit...
- Page 3 1. Remove the game board and locate the sync bus daughter board (some versions of Pacman have a custom IC instead of the syncbus daughter board, in this case skip step 3)
- Page 4 2. Cut the cable tie and carefully remove the sync bus daughter board 3. Remove all program roms (location 6E-6P (on the pic above, only 6E-6J are filled with roms) 4. Remove all GFX-Roms at location 5E and 5F (Recommendation - label the eproms before removing) 5.
- Page 5 After removing all the parts above, the the pcb should look like this -...
- Page 6 9. Carefully insert the 40pin flat cable connector (DIL) into the socket of the Z80 CPU - make sure that the flat cable points to the CPU edge connector (see pics below)
- Page 7 10. Insert the PROM Board labeled with 7F in the socket located at 7F (see pic below) Make sure that the pins fit the socket and the 10pin jack is facing to the gameboard edge connector...
- Page 8 11. Insert the PROM board labeled with 4A into the socket located at 4A (the 10pin jack must point towards the edge connector of the game board) 12. Insert the PROM board labeled with 1M into the socket located at 1M (the 10pin jack must point towards the edge-connector of the game board)
- Page 9 13. Insert the gfx-board into location 5E. Make sure that the pins fit in the socket. Attention: the 10pin jack is at the opposite side compared with the prom boards!
- Page 10 14. Your pacman pcb should look like this now. Please check if the 10pin jacks are facing like shown in the pic below Detail GFX board...
- Page 11 15. Insert the 28pin socket into the empty socket at location 6D (where the sync bus board was before) 16. Carefully insert the sync bus board into the double socket at location Make sure that the pins fit into the socket. Attention: The notches of the IC on the syncbus board must face towards the gfx board.
- Page 13 17. Secure the sync bus board from falling off with a cable tie.
- Page 14 18. Get the 5 pin flat cable and identify the first 10pin plug. See pic below.
- Page 15 19. Insert the first plug into the jack on the save kit pcb...
- Page 16 Now insert the CPU into the multi kit. Make sure that the pin 1 of the cpu match the pin 1 of the socket of the savekit (see pics below) Online multi kit (above) Offline multi kit (above)
- Page 17 20. Insert the 40 pin flat cable plug into the jack of the multi kit. (see pics below)
- Page 19 21. Insert the 2nd 10pin plug of the flat cable (Start counting from the save kit pcb) into the jack of the prom board 7F (see pics below).
- Page 20 22. Insert the 3rd 10pin plug into the prom board at location 4A 23. Insert the 4th 10pin plug into the gfx board at location 5E...
- Page 21 24. Insert the 5th (last) 10pin plug into the PROM board at location 1M Your Pacman board should look like this now - Insert your Pacman pcb back into the cab. Make sure, that the save kit does not touch any parts inside the cabinet.
- Page 22 Mount the new save kit board with screws into the cab. (see the mounting holes in picture below,) After insertion, check the seating of the daughter board again to ensure proper seating in the socket. That's it! Double check your work ...
- Page 23 Optional for online kits – Attach a standard network cable (Cat5) to the network connector on the kit. Make a strain relief (leave some slack), so if there is an accidental pulling of the network cable, it won’t pull the kit off the game board.
