Unidrive M70 Series Installation Sheet

Unidrive M600-M70X, F300, H300, E200 & E300
Size 5 Through-panel Mounting Installation Sheet
1

Safety information

Follow the instructions
The mechanical and electrical installation instructions must
be adhered to. Any questions or doubt should be referred to
the supplier of the equipment. It is the responsibility of the
WARNING owner or user to ensure that the installation of the drive and
any external option unit, and the way in which they are
operated and maintained, comply with the requirements of
the Health and Safety at Work Act in the United Kingdom or
applicable legislation and regulations and codes of practice in
the country in which the equipment is used.
Competence of the installer
The drive must be installed by qualified personnel who are
familiar with the requirements for safety and EMC. The
installer is responsible for ensuring that the end product or
system complies with all the relevant laws in the country
WARNING
where it is to be used.
2

Introduction

This document covers through-panel mounting instructions for Unidrive
M600 / M70X, F300, H300, E200 & E300 Size 5 drives. The standard
drive is rated to IP20 pollution degree 2 (dry, non-conductive
contamination only, NEMA 1), however it is possible to configure the
device to achieve IP65 rating (NEMA 12). This is done by sealing the
heat sink vents at the rear of the heatsink by installing the high IP inserts
as illustrated in Figure 3-1. Some current derating is required, and
reference should be made to the drive User Guide for current derating
information.
The following items are supplied in the kit bag:
Table 2-1 Contents of the bag (CT Part Number: 3470-0067)
Description
Through panel mounting gasket
Through panel securing brackets
High IP inserts
Through panel mounting
installation sheet
The following items are included in the kit boxes 3470-0071 and
3470-0072, both of which are supplied with the drive.
Table 2-2 Additional items required
Description
Frame 5 mounting brackets
3
3.1

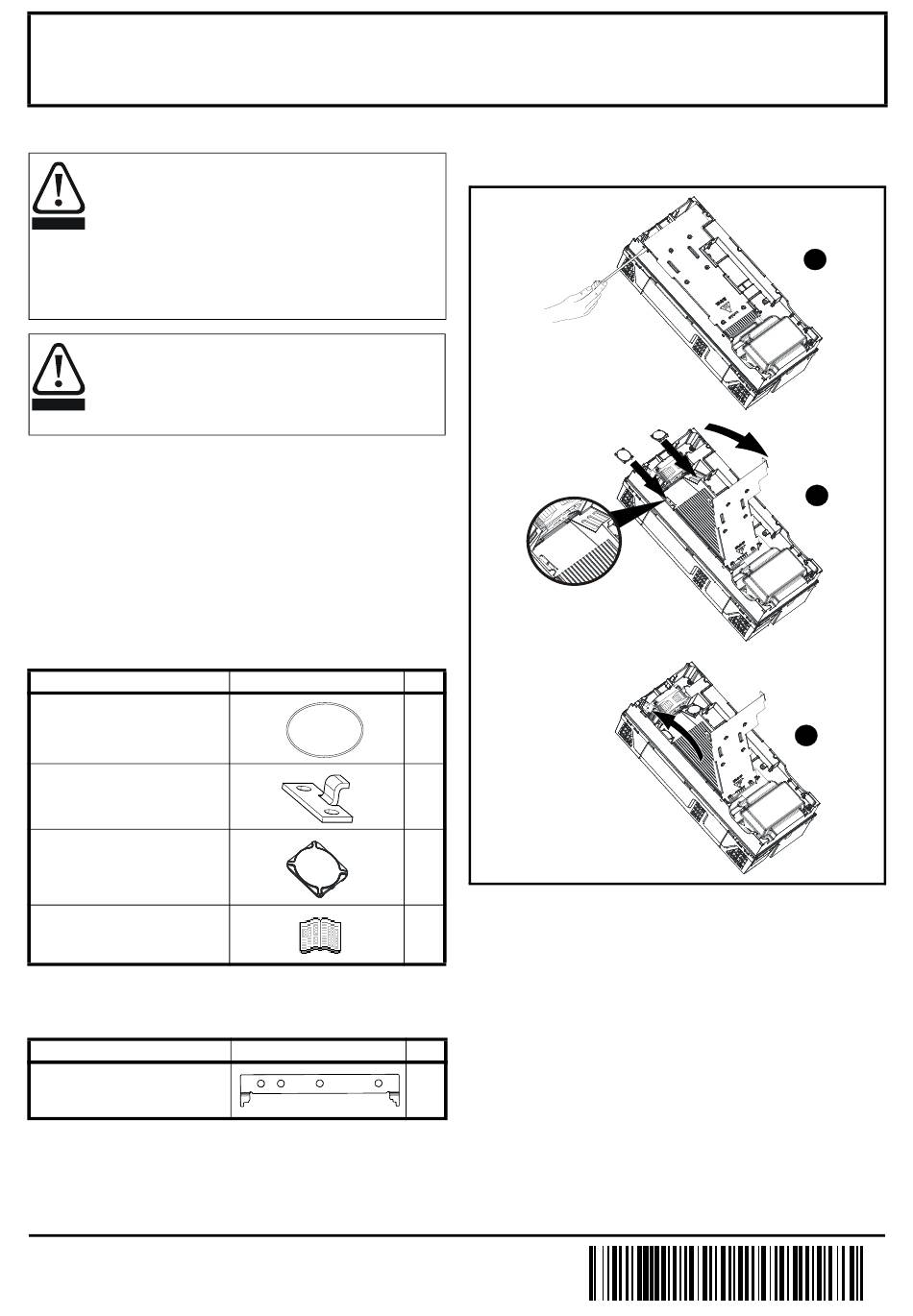

Figure 3-1 Installing the high IP inserts
Image Qty
x 1
x 2
x 2
1. To install the high IP inserts, first unclip the baffle plate using a flat
x 1
2. Pull the hinged baffle plate down to expose the ventilation holes.
3. Close the hinged baffle plate by rotating it upwards until the clips on
Image Qty
x 2

Instructions

Installing the high IP inserts

bladed screwdriver inserted under the slot as shown in Figure 3-1
(1).
Install the two high IP inserts into the ventilation holes in the heatsink
(2). Ensure the high IP inserts are fully installed by pressing them
firmly into place.
the baffle plate are secure within the slots in the drive chassis as
shown in (3).
1
2
3
0478-0103-04
