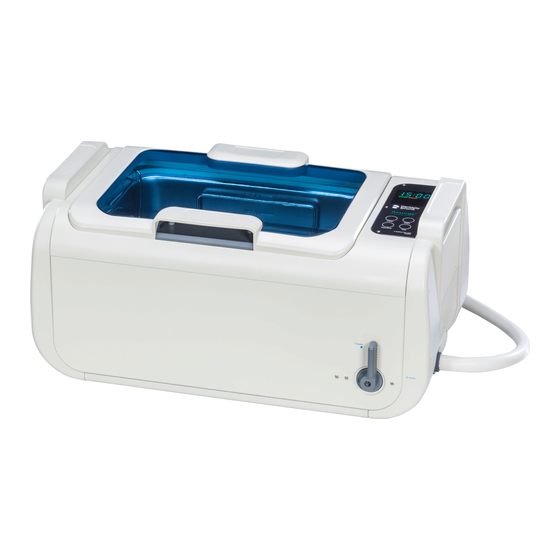

Resurge
®
Ultrasonic Cleaner
Directions for Use
Model #
0060200
Features
Large tank capacity
Memory feature
Control panel with capacitive
sensing technology
Drainage valve
Three industrial grade ultrasonic
transducers
Three ceramic heaters
3-color LED display
Independent control circuit for
each ultrasonic transducer
Multiple circuit protectors
Moisture-proofed Printed Circuit
Board with industrial IC
Three cooling fans
Multiple optional accessories
Stackable low profile tray option
Solid and advanced structural design
Tank capacity 7.5 L / 2.0 gallon;
Tank size 33.1x23.8x10.5 cm / 13.0inx9.4inx4.1in
Recalls last timer setting
Durable, reliable, resistant to water and harsh chemicals
Convenient to use
Uniform distribution of ultrasonic waves, strong cleaning, high durability
Mounted underneath the bottom of the tank for safe and even heating;
durable construction
Easy to operate, with 4 key control panel, 6 timer settings, single
temperature setting
40% higher efficiency, not susceptible to interference, more durable
When overloaded or improperly used, the protectors shut down the power
to certain areas to protect the machine
PCBs are placed vertically for better moisture-proof performance. Better
anti-interference
Two for cooling of PCB boards, one for cooling of ultrasonic transducers.
Improve heat dissipation and beneficial for continuous operations
Stainless steel rack and basket, dual beaker holder set, indirect cleaning
tank (removable cleaning chamber)
Flexibility to load instruments
4.5 mm thick wall housing made from engineering grade plastic with tongue
in groove design for better water-proof and drop-proof performances.
60% quieter than steel housing designs, suitable for indoor uses
Close
Open

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Resurge and is the answer not in the manual?

Questions and answers

Tina M Dingus
February 20, 2025

why is our resurge turning to a green tint in the ultrasonic, we have not experienced this until resently?

Subscribe to Our Youtube Channel

Summary of Contents for Dentsply Sirona Resurge

  • Page 1 Resurge ® Ultrasonic Cleaner Directions for Use Model # 0060200 Close Open Features Large tank capacity Tank capacity 7.5 L / 2.0 gallon; Tank size 33.1x23.8x10.5 cm / 13.0inx9.4inx4.1in Memory feature Recalls last timer setting Control panel with capacitive Durable, reliable, resistant to water and harsh chemicals...
  • Page 2: Table Of Contents

    Introduction Table of Contents Use warm tap water. Special ultrasonic cleaning solutions such as Resurge Instrument Cleaner 1. Safety Precautions...........................1-2 may be used. Important: If you switch from another ultrasonic cleaner to Resurge Instrument Cleaning Solution, it is important that you clean the tank thoroughly. It is also recommended that 2. Product Structure and Accessories......................3 you flush the drain with clean water as well to make sure no residue remains from using the previous cleaner. Principles of ultrasonic cleaning 3. Control Panel and Operations.......................4 Millions of tiny invisible air bubbles are generated within liquid by high frequency vibration. The air bubbles burst when in contact with object and dislodge the debris to achieve the cleaning effect.
  • Page 3: Safety Precautions

    Use a recommended cleaning additive such • Never operate the unit unattended. as Resurge® Instrument Cleaner. • Danger of electrical shock! Do not spray water or liquid over the device. • Place the device on a dry and flat surface for operation.
  • Page 4: Product Structure And Accessories

    Product Structure and Accessories Control Panel and Operations Indicator Lights Working Time Display: It counts down after work is started. Multistage Thermometer: Solid green light indicates that the water temperature is 0-30% of the set temperature. Solid orange light indicates that the water temperature is 30-60% of the set temperature.
  • Page 5: Operation Guidelines

    Operation Guidelines - Quick Start, cont. Operation Guidelines - Quick Start Unit Set-Up Adding Instruments a. The Resurge Ultrasonic Cleaner comes with the a. Put items in cassettes or stainless steel following components: basket or trays provided. i. Resurge Ultrasonic Unit b. Lay the cassettes or trays in the metal rack ii.
  • Page 6: Operation Guidelines

    Draining Tank Only tap water is needed. You may add an instrument cleaner. At the end of the day, the tank should be We recommend Resurge Instrument Cleaner. Follow the drained and fresh water and cleaning agent manufacturer’s instructions for use.
  • Page 7: Common Cleaning Methods

    Care and Maintenance Common Cleaning Methods (cont.) Cleaning Method: Do not turn on the unit without water in the tank. 1. Put the items to be indirectly cleaned in the recommended container. Add the appropriate cleaning Even though the unit is designed with multiple protections, if it is turned on for over 15 seconds solution for the application (such as tarter and stain remover).
  • Page 8 PAGE PAGE INTENTIONALLY INTENTIONALLY BLANK BLANK...
  • Page 9: Warranty

    STRICTLY TO REPAIR OR REPLACEMENT OF PARTS. DENTSPLY EXPRESSLY DISCLAIMS LIABILITY FOR INCIDENTAL AND CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCTS. Claims covered by this warranty will be honored when presented through your DENTSPLY Sirona distributor within thirty (30) days from discovery of defect within the applicable warranty period.
