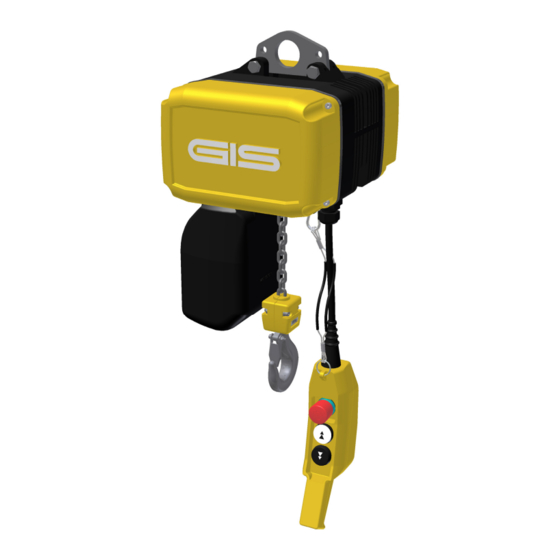

Electric chain hoist

Advertisement

INSTRUCTION MANUAL
Electric chain hoist GCH 250/500 • GCH 1000 • GCH 1600/2000/2500
G
C
H
IS
HAIN
OIST
S W I S S Q U A L I T Y
GCH
GCHK
GCHS
GCHH
GCHR
07.11 Original document 9401.9000.1.doc

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GCH250 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Gis GCH250 Series

  • Page 1 INSTRUCTION MANUAL Electric chain hoist GCH 250/500 • GCH 1000 • GCH 1600/2000/2500 HAIN OIST S W I S S Q U A L I T Y GCHK GCHS GCHH GCHR 07.11 Original document 9401.9000.1.doc...
  • Page 2: Table Of Contents

    Table of contents General information..............4 General safety information .................. 4 0.1.1 Safety and hazard precautions................4 General safety specifications and procedures............. 4 0.2.1 Warning paint / Marking / Danger signs .............. 4 Special safety directions..................4 Notes on hazard protection ................. 5 0.4.1 Hazards caused by mechanical influences ............
  • Page 3 Load capacity : ..................Original spare parts for the electric chain hoist can be acquired from the following addresses: 1. Manufacturer GIS AG Hebe- und Fördertechnik Luzernerstrasse 50 CH-6247 Schötz Tel. +41 (0)41 984 11 33 Fax +41 (0)41 984 11 44 tel@gis-ag.ch...
  • Page 4: General Information

    The following symbols and terms are used in this instruction manual for safety and 0 General information hazard instructions: 0.1 General safety information DANGER ! 0.1.1 Safety and hazard precautions Non-compliance, either in part or full, with operating instructions marked with this symbol can result in serious personal injury or even death.
  • Page 5: Notes On Hazard Protection

    Cleaning / service / repair / maintenance / refitting:  Use the working platforms and ladders provided for assembly work above body height  Do not use machine parts for this purpose  Check electrical cables for damage or wear ...
  • Page 6: Sound Level (Spl)

    Causes:  contact with, touching or standing too close to uninsulated power and voltage supply terminals  use of uninsulated tools  exposed electricity supply terminals following insulation failure  inadequate safety checks following repair work  incorrect fusing Safety options: ...
  • Page 7: Warranty

    0.5.3 Warranty  the warranty is void if the installation, operation, testing or maintenance is not carried out according to these instructions  troubleshooting and repair under warranty may only be carried out by qualified persons and only after consultation and agreement with the manufacturer / supplier. Any modifications to the product or the use of non-original replacement parts will void the warranty 0.6 Operational parameters...
  • Page 8: Description

    Supplementary to the instruction manual, the following documentation from the operator must be noted:  Declaration of conformity  Log book  Spare parts list(s)  Circuit diagrams Page and figure numeration: The pages are consecutively numbered. Blank pages are not numbered, however are calculated together with the consecutive pages.
  • Page 9: General Description

    Example 2: Ascertaining permissible load type: An electric chain hoist of the ISO Group M5 is to be used for approximately 6 hours per working day, throughout its complete service life. Consequently the electric chain hoist should be operated in accordance with the characteristics of the load type <1 light> (see table 1-1).
  • Page 10: Special Models

    A drilled hole is provided for both the power supply cable gland and the control cable. The lugs, or optionally the suspension hooks, are attached to the flange ring. GIS electric chain hoists are driven by asynchronous motors. For two-speed models a pole switching version of the motor is fitted.
  • Page 11: Start-Up

    DANGER ! 2 Start-up Mechanical adjustments may only be performed by authorised specialists. CAUTION ! Operating staff must carefully read the operating instructions of the electric chain hoists before its initial operation and carry out all checks. Only when safe operation has been established may the device be put into operation. Unauthorised persons may not operate the device or carry out work with it.
  • Page 12: Load Chain

    DANGER ! The protective conductor should not carry any power. With motor carriage operation, the power supply is enclosed in a terminal box of the drive motor. With the installation of a motor protector, the load plate voltage of the electric chain hoist must be observed.
  • Page 13 Single fall operation: The load hook (1) is connected to the chain using a shim (2). Bolt (3) installation is important for power transmission (see figure 2-6). CAUTION ! Pay attention to correct arrangement of suspension (see figure 2-7)! Grease the bearings thoroughly.
  • Page 14: Limit Switch

    2.2.3 Limit switch The electric chain hoist is equipped with a gearbox limit switch as standard. This is also suitable for normal limit switch operation with a high degree of accuracy. The operation of the limit switches (highest and lowest hook position) must be checked during start-up.
  • Page 15: Chain Bucket

    2.2.4 Chain bucket  Move chain out at load side until limit switch is activated  Attach free end of chain to housing (see chapter 2.2.2)  Attach chain bucket and allow chain to run in (see figure 2-13) DANGER ! All steel plate chain buckets must be equipped with an additional wire cable with a minimum diameter of 2 mm (see figure 2-14).
  • Page 16: Service And Maintenance

    During service and maintenance work, general accident prevention directions, special safety directions (chapter 0.3) as well as hazard protection instructions (chapter 0.4) should be followed. DANGER ! Service and maintenance work should only be performed on unloaded electric chain hoists. The main switch must be off. The lower sheave or hook fittings must be lying on the floor or a maintenance platform.
  • Page 17: Load Chain

    NOTE The brake has no air gap adjustment. If the air gap (a , table 3-3 and max. figure 3-1) reaches maximal value, the brake pad needs changing. Table 3-3 Air gap Figure 3-1 GCH 250/500 GCH 1000 GCH 1600/2000/2500 ...
  • Page 18: Suspension Parts

    3.2.8 Suspension parts All statically loaded parts are considered suspension parts. The bearing surfaces of the slewing suspension parts must be periodically greased. Torque values for screws of property class 8.8 according to DIN ISO 898: M 10 M 12 6 Nm 10 Nm 24 Nm...
  • Page 19: Appendix

    5 Appendix Table 0-2 GCH technical data ISO (FEM) M3 (1Bm) M4 (1Am) M5 (2m) M6 (3m) M7 (4m) Lifting Motor power 3 x 400V 1 x 230V No. of Dead Connection classification 150 s/h 180 s/h 240 s/h 300 s/h 360 s/h speed (M3)
  • Page 20 Table 0-4 GCHS technical data ISO (FEM) M3 (1Bm) M4 (1Am) M5 (2m) M6 (3m) M7 (4m) Lifting Motor power 3 x 400V 1 x 230V No. of Dead Connection classification 150 s/h 180 s/h 240 s/h 300 s/h 360 s/h speed (M3) 50Hz...
  • Page 21: Ec Declaration Of Conformity

    EC DECLARATION OF CONFORMITY Declaration for machinery according to EU directives 2006/42/EC, Annex II A, 2004/108/EC, Annex I and 2006/95/EC, Annex III GIS AG, Hebe- und Fördertechnik, Luzernerstrasse 50, CH-6247 Schötz hereby declare that the following machinery GIS electric chain hoist, series...
  • Page 22: Ec Declaration Of Incorporation

    Declaration for the incorporation of partly completed machinery according to EU directives 2006/42/EC, Annex II B, 2004/108/EC, Annex I and 2006/95/EC, Annex III GIS AG, Hebe- und Fördertechnik, Luzernerstrasse 50, CH-6247 Schötz hereby declare that the following partly completed machinery...
