Thank you for choosing our product.
●
To ensure the best performance of this product, please read this Command Guide and Users Guide
fully and carefully before using your product.
IP-NINJAR Management and Control Box
<Command Reference Guide>
IDK Corporation
NJR-CTB
Ver.1.1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP-NINJAR NJR-CTB and is the answer not in the manual?

Questions and answers

Summary of Contents for IDK IP-NINJAR NJR-CTB

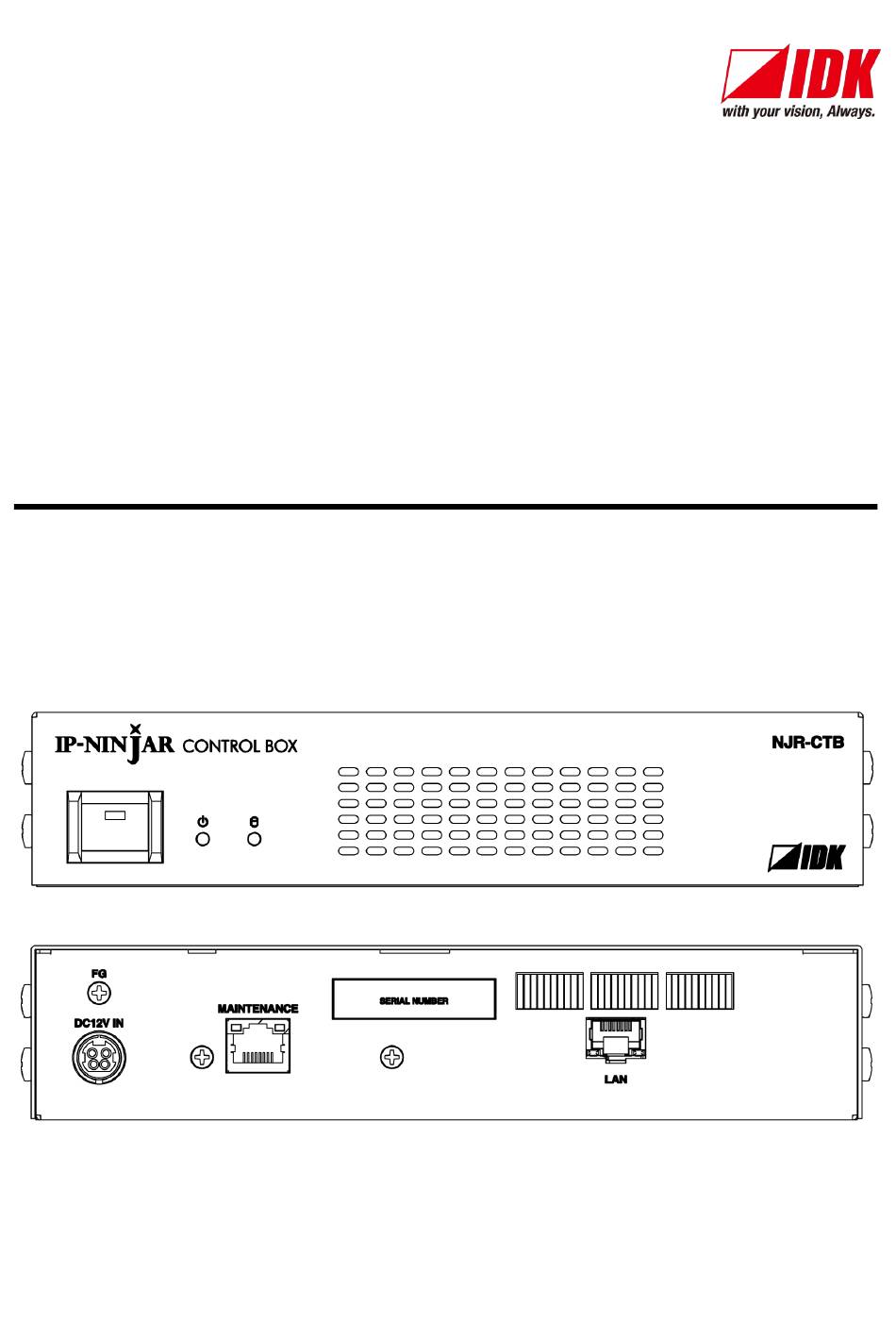

  • Page 1 IP-NINJAR Management and Control Box NJR-CTB <Command Reference Guide> Ver.1.1.1 ● Thank you for choosing our product. ● To ensure the best performance of this product, please read this Command Guide and Users Guide fully and carefully before using your product. IDK Corporation...
  • Page 2 HDMI Licensing Administrator, Inc. in the United States and other countries.  Connection Reset and IP-NINJAR are registered trademarks of IDK Corporation in Japan.  All other company and product names mentioned in this manual are either registered trademarks or...
  • Page 3 ● Some of the contents in this command guide such as product appearance in diagrams, menu operations, communication commands, and so on may differ from one NJR-CTB model to another. ● This command guide is subject to change without notice. You can download the latest version from IDK’s website at: http://www.idkav.com...

  • Page 4: Table Of Contents

    NJR-CTB Command Guide Table of Contents How to read this Guide ......................... 5 About this Guide ........................... 6 Communication configuration and Specifications .................. 7 LAN communication ........................7 3.1.1 Setup of LAN communication....................7 3.1.2 LAN port specification ......................8 3.1.3 LAN communication specification ..................

  • Page 5: How To Read This Guide

    NJR-CTB Command Guide 1 How to read this Guide This guide contains the procedure for using an NJR-CTB Control Box to command IP-NINJAR series products via LAN communication. The NJR-CTB is for 4K@60 and HDCP2.2 supported HDMI extenders (NJR-T01UHD, transmitter and NJR-R01UHD, receiver) when usedwith a 10G LAN switch or within an extended 10G LAN fabric environment*.

  • Page 6: About This Guide

    NJR-CTB Command Guide 2 About this Guide This guide explains how to control the NJR-CTB using commands through LAN communication. ■ Communication commands enables the following main operations: ・Setting input, output, and audio ・Displaying information ・Switching channels ・Loading and setting crosspoint preset ・Loading and setting video wall...

  • Page 7: Communication Configuration And Specifications

    NJR-CTB Command Guide 3 Communication configuration and Specifications 3.1 LAN communication The NJR-CTB can be accessed and controlled through LAN communication. Connecting a control device to the NJR-CTB’s LAN port enables system control and status querries per the Command List. Information: The NJR-CTB can also be controlled from the WEB browser.

  • Page 8: Lan Port Specification

    NJR-CTB Command Guide 3.1.2 LAN port specification LAN and MAINTENANCE port assignments are as follows. Since Auto MDI / MDI-X that distinguishes and switches straight/cross cables automatically is supported, extra care is not necessary to connect the NJR-CTB to PC, HUB or the like. 8-pin RJ-45 module connector Signal name...

  • Page 9: Limit On The Number Of Tcp-Ip Connections And Port Overload Management

    NJR-CTB Command Guide 3.1.4 Limit on the number of TCP-IP connections and port overload management The NJR-CTB’s maintenance port supports a maximum of eight simultaneous connections (eight logical ports). To maintain optimal system accessibility, it is advisable to issue “port-open” and “port-close” commands before and after command or query strings are issured.

  • Page 10: Connecting Lan Cable

    10G LAN ports of an IP-NINJAR syetem to any existing network infrastructure. *A broadcast storm occurs when a network is overwhelmed by continuous broadcast traffic resulting in a network meltdown. During installation, it is important to avoid the creation of network loops. Contact IDK if you require assistance with network implementation.

  • Page 11: Command

    NJR-CTB Command Guide 4 Command 4.1 Summary A command consists of “@” (“40” in hexadecimal), 3 or 4 one-byte alphabetical characters (upper and lower cases) followed by parameters (one-byte numbers). For some commands, multiple parameter values can be specified. Processing is executed by sending a delimiter at the end of the command. Example: @RCPP,0,0,1,1 “,”(a comma, “2C”...

  • Page 12: Command List

    NJR-CTB Command Guide 4.2 Command list ■ Error status Command Function Page @ERR Error status ■ Setting channel information Command Function Page @GCHI / @SCHI Channel ■ Setting video Command Function Page @GVOS / @SVOS Output video ■ Setting audio Command Function Page...
  • Page 13 NJR-CTB Command Guide ■ Maintenance Command Function Page @GIVC Version @CLRC Initializing setting @RBTC Reboot...

  • Page 14: Parameter Input Format

    NJR-CTB Command Guide 4.3 Parameter input format Specify the target channel in order to control multiple NJR-T01UHDs and NJR-R01UHDs connected through a network switch. Example: The command for setting mute of digital audio output Format @SAM, device, ch, port, mute Parameter device: Model type 1 = NJR-T01UHD, 2 = NJR-R01UHD...

  • Page 15: Details Of Commands

    NJR-CTB Command Guide 4.4 Details of commands 4.4.1 Error status @ERR Error status Format Return value only Return value @ERR, error Parameter error: Error status 1 = Erroneous parameter format or value 2 = Undefined command or wrong format 3 = Currently cannot be used. 99 = Error other than errors above Example @GCHI...

  • Page 16: Basic Settings

    NJR-CTB Command Guide 4.4.2 Basic settings 4.4.2.1 Setting channel information @GCHI / @SCHI Channel information Function Getting Setting Format @GCHI, type_1, ch_1, reserved_1 (, @SCHI, type_1, ch_1, reserved_1, type_2, ch_2, reserved_2･･･) mac_1, hdmi_1 (, type_2, ch_2, reserved_2, mac_2, hdmi_2･･･) Return value @GCHI, type_1, ch_1, reserved_1, @SCHI, type_1, ch_1, reserved_1, mac_1, hdmi_1 (, type_2, ch_2,...

  • Page 17: Setting Video

    NJR-CTB Command Guide 4.4.2.2 Setting video @GVOS / Output video @SVOS Function Getting Setting Format @GVOS, type_1, ch_1, reserved_1 @SVOS, type_1, ch_1, reserved_1, (, type_2, ch_2, reserved_2･･･) mode_1, submode_1, resolution_1 (, type_2, ch_2, reserved_2, mode_2, submode_2, resolution_2･･･) Return value @GVOS, type_1, ch_1, reserved_1, @SVOS, type_1, ch_1, reserved_1, mode_1, submode_1, resolution_1 mode_1, submode_1, resolution_1...
  • Page 18 NJR-CTB Command Guide @GVOS / Output video (Cont’d) @SVOS Example @GVOS,2,1,1 Getting video setting of Ouput Channel1. @GVOS,2,1,1,1,0,32 Fast & Scaling mode, 1080p@60 @SVOS,2,1,1,1,0,32 Setting video setting of Ouput Channel1 to Fast & Scaling mode 1080p@60. @SVOS,2,1,1,1,0,32 Completed normally. － Remarks...

  • Page 19: Setting Audio

    NJR-CTB Command Guide 4.4.2.3 Setting audio @GAOS / Output audio @SAOS Function Getting Setting Format @GAOS, type_1, ch_1, reserved_1 @SAOS, type_1, ch_1, reserved_1, (, type_2, ch_2, reserved_2･･･) analog_1, hdmi_1 (, type_2, ch_2, reserved_2, analog_2, hdmi_2･･･) Return value @GAOS, type_1, ch_1, reserved_1, @SAOS, type_1, ch_1, reserved_1, analog_1, hdmi_1 (, type_2, ch_2, analog_1, hdmi_1 (, type_2, ch_2,...

  • Page 20: Setting Edid

    NJR-CTB Command Guide 4.4.2.4 Setting EDID @RMEC Copying EDID Function Getting Format @RMEC, type, ch, reserved, input_1, output_1 (, input _2, output_2･･･) Return value @RMEC, type, ch, reserved, input_1, output_1 (, input _2, output_2･･･) Parameter type: Type “0”fixed. ch: Channel “0”fixed.

  • Page 21: Setting Transmission

    NJR-CTB Command Guide 4.4.3 Setting transmission 4.4.3.1 Video and audio @GWDS / Video and audio transmission @SWDS Function Getting Setting Format @GWDS, type_1, ch_1, reserved_1 @SWDS, type_1, ch_1, reserved_1, (, type_2, ch_2, reserved_2･･･) mode_1, free_1 (, type_2, ch_2, reserved_2, mode_2, free_2･･･) Return value @GWDS, type_1, ch_1, reserved_1, @SWDS, type_1, ch_1, reserved_1,...
  • Page 22 NJR-CTB Command Guide @GVDS / Video transmission @SVDS Function Getting Setting Format @GVDS, type_1, ch_1, reserved_1 @SVDS, type_1, ch_1, reserved_1, (, type_2, ch_2, reserved_2･･･) mode_1, free_1 (, type_2, ch_2, reserved_2, mode_2, free_2･･･) Return value @GVDS, type_1, ch_1, reserved_1, @SVDS, type_1, ch_1, reserved_1, mode_1 (, type_2, ch_2, reserved_2, mode_1, free_1 (, type_2, ch_2, index_2, mode_2･･･)
  • Page 23 NJR-CTB Command Guide @GADS / Audio transmission @SADS Function Getting Setting Format @GADS, type_1, ch_1, reserved_1 @SADS, type_1, ch_1, reserved_1, (, type_2, ch_2, reserved_2･･･) mode_1, free_1 (, type_2, ch_2, reserved_2, mode_2, free_2･･･) Return value @GADS, type_1, ch_1, reserved_1, @SADS, type_1, ch_1, reserved_1, mode_1 (, type_2, ch_2, reserved_2, mode_1, free_1 (, type_2, ch_2, index_2, mode_2･･･)
  • Page 24 NJR-CTB Command Guide @GNDS / Analog audio transmission @SNDS Function Getting Setting Format @GNDS, type_1, ch_1, reserved_1 @SNDS, type_1, ch_1, reserved_1, (, type_2, ch_2, reserved_2･･･) mode_1, free_1 (, type_2, ch_2, reserved_2, mode_2, free_2･･･) Return value @GNDS, type_1, ch_1, reserved_1, @SNDS, type_1, ch_1, reserved_1, mode_1 (, type_2, ch_2, reserved_2, mode_1, free_1 (, type_2, ch_2, index_2, mode_2･･･)

  • Page 25: Switching Channel

    NJR-CTB Command Guide 4.4.4 Switching channel 4.4.4.1 Video and Audio @GSW / @SSW Switching video and audio channel simultaneously Function Getting Setting Format @GSW, type, ch, reserved, input @SSW, type, ch, reserved, input_1, output_1 (, input_2, output_2･･･) Return value @GSW, type, ch, reserved, input, @SSW, type, ch, reserved, input_1, output_1 (, output_2･･･) output_1 (, input_2, output_2･･･)
  • Page 26 NJR-CTB Command Guide @GSV / @SSV Switching video channel Function Getting Setting Format @GSV, type, ch, reserved, input @SSV, type, ch, reserved, input_1, output_1 (, input_2, output_2･･･) Return value @GSV, type, ch, reserved, input, @SSV, type, ch, reserved, input_1, output_1 (, output_2･･･) output_1 (, input_2, output_2･･･) Parameter type: Type...
  • Page 27 NJR-CTB Command Guide @GSAA / Switching analog audio channel @SSAA Function Getting Setting Format @GSAA, type, ch, reserved, input @SSAA, type, ch, reserved, input_1, output_1 (, input_2, output_2･･･) Return value @GSAA, type, ch, reserved, input, @SSAA, type, ch, reserved, input_1, output_1 (, output_2･･･) output_1 (, input_2, output_2･･･) Parameter...

  • Page 28: Rs-232C

    NJR-CTB Command Guide 4.4.4.2 RS-232C @GSWR / Switching RS-232Cchannel @SSWR Function Getting Setting Format @GSWR, src_type, src_ch, src_port @SSWR, src_type, src_ch, src_port, dst_type, dst_ch, dst_port Return value @GSWR, src_type, src_ch, src_port, @SSWR, src_type, src_ch, src_port, dst_type, dst_ch, dst_port dst_type, dst_ch, dst_port Parameter src_type: Source type 1 = Input, 2 = Output...

  • Page 29: Setting Communication Interface Values

    NJR-CTB Command Guide 4.4.5 Setting communication interface values 4.4.5.1 Setting RS-232C @GRSS / RS-232C communication setting @SRSS Function Getting Setting Format @GRSS, type, ch, reserved @SRSS, type, ch, reserved, baudrate,databit, stopbit, parity Return value @GRSS, type, ch, reserved, @SRSS, type, ch, reserved, baudrate,databit, stopbit, parity baudrate,databit, stopbit, parity Parameter...

  • Page 30: Ctb Lan Settings

    NJR-CTB Command Guide 4.4.5.2 CTB LAN settings @GIPS / @SIPS Setting LAN Function Getting Setting Format @GIPS, type_1, ch_1, port_1 (,type_2, @SIPS, type_1, ch_1, port_1, mode_1, ch_2, port_2･･･) ip_1, mask_1, gateway_1 (,type_2, ch_2, port_2, mode_2, ip_2, mask_2, gateway_2･･･) Return value @GIPS, type_1, ch_1, port_1, mode_1, @SIPS, type_1, ch_1, port_1, mode_1, ip_1, mask_1, gateway_1 (,type_2,...
  • Page 31 NJR-CTB Command Guide @GMCC MAC address Function Getting Format @GMCC, type_1, ch_1, port_1 (, type_2, ch_2, port_2･･･) Return value @GMCC, type_1, ch_1, port_1, mac_1 (, type_2, ch_2, port_2, mac_2･･･) Parameter type_1 to type_512: Type 0 = CTB, 1 = Input, 2 = Output ch_1 to ch_512: Channel 1 to 512 = Channel1 to Channel512 port_1 to port_512: Connector...

  • Page 32: Maintenance

    NJR-CTB Command Guide 4.4.6 Maintenance 4.4.6.1 CTB version querry @GIVC Version Function Getting Format @GIVC, type_1, ch_1, reserved_1 (, type_2, ch_2, reserved_2･･･) Return value @GIVC, type_1, ch_1, reserved_1, model_1, version_1 (, type_2, ch_2, reserved_2, model_2, version_2･･･) Parameter type_1 to type_512: Type 0 = CTB, 1 = Input, 2 = Output ch_1 to ch_512: Channel 1 to 512 = Channel1 to Channel512...
  • Page 33 NJR-CTB Command Guide @RBTC Reboot Function Setting Format @RBTC, type_1, ch_1, reserved_1 (,type_2, ch_2, reserved_2･･･) Return value @RBTC, type_1, ch_1, reserved_1 (,type_2, ch_2, reserved_2･･･) Parameter type_1 to type_512: Type 0 = CTB, 1 = Input, 2 = Output ch_1 to ch_512: Channel 0 = All outputs, 1 to 512 = Channel1 to Channel512 reserved_1 to reserved_512: Reservation “1”...
  • Page 34 Revised on: 30 January 2018 Headquarters IDK Corporation 7-9-1 Chuo, Yamato-shi, Kanagawa-pref. 242-0021 JAPAN TEL: +81-46-200-0764 FAX: +81-46-200-0765 Email: idk_eng@idk.co.jp URL: http://www.idkav.com IDK America Inc. 72 Grays Bridge Road Suite 1-C, Brookfield, CT 06804 TEL: +1-203-204-2445 Email: sales@idkav.com URL: http://www.idkav.com...
