Summary of Contents for BADODOSECURITY G200
- Page 1 GSM/3G Gate Controller Quick Guide Model: G200 Version: 1.2...

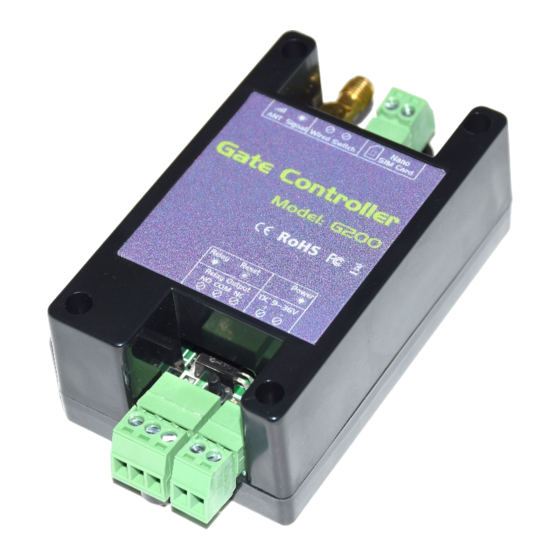

- Page 2 GSM/3G Gate Controller Introduction G200 is a new designed Smart Wireless Gate controller. It could be well inte- grated with most of the electronic locks, gate motors, gate operators, and widely used in residential, institutional, industrial markets. G200 works with a...
- Page 3 GSM/3G Gate Controller Wiring Diagram Signal Wired Switch Gate Controller Model: G200 Relay Reset Power Relay Output 9~36V NO COM NC Initial Settings Make sure the device antenna is installed, and you MUST send the SMS com- mand as below before using the device. If successed, it will return a message.
- Page 4 GSM/3G Gate Controller Other Settings About the SMS commands in the charts below is presented as examples, please use it according to your real situation. Read the cautions as below: 1). All the red letters in the SMS command should be in CAPS. 2).
- Page 5 GSM/3G Gate Controller Set the Valid User In A Specific Time? 1234A002#0044777777#1809061005#1809072230# ’1234‘: The device password(default). ‘002’: The user was set as 2nd position on the authorized user list. ‘0044777777’: The user’s UK phone number. ‘1809061005’: 10:05am on 6th, Sep, 2018. ‘1809072230’: 22:30pm on 7th, Sep, 2018.
- Page 6 GSM/3G Gate Controller How to Open The Door There are three ways to open the door: 1). The authorized users dial to open the door. 2). The authorized users send SMS command to open the door. 3). Push the Exit Button to open the door. The Standard Package 1).
- Page 7 GSM/3G Gate Controller Position User’s Phone Number User Name Memo Page 7...
