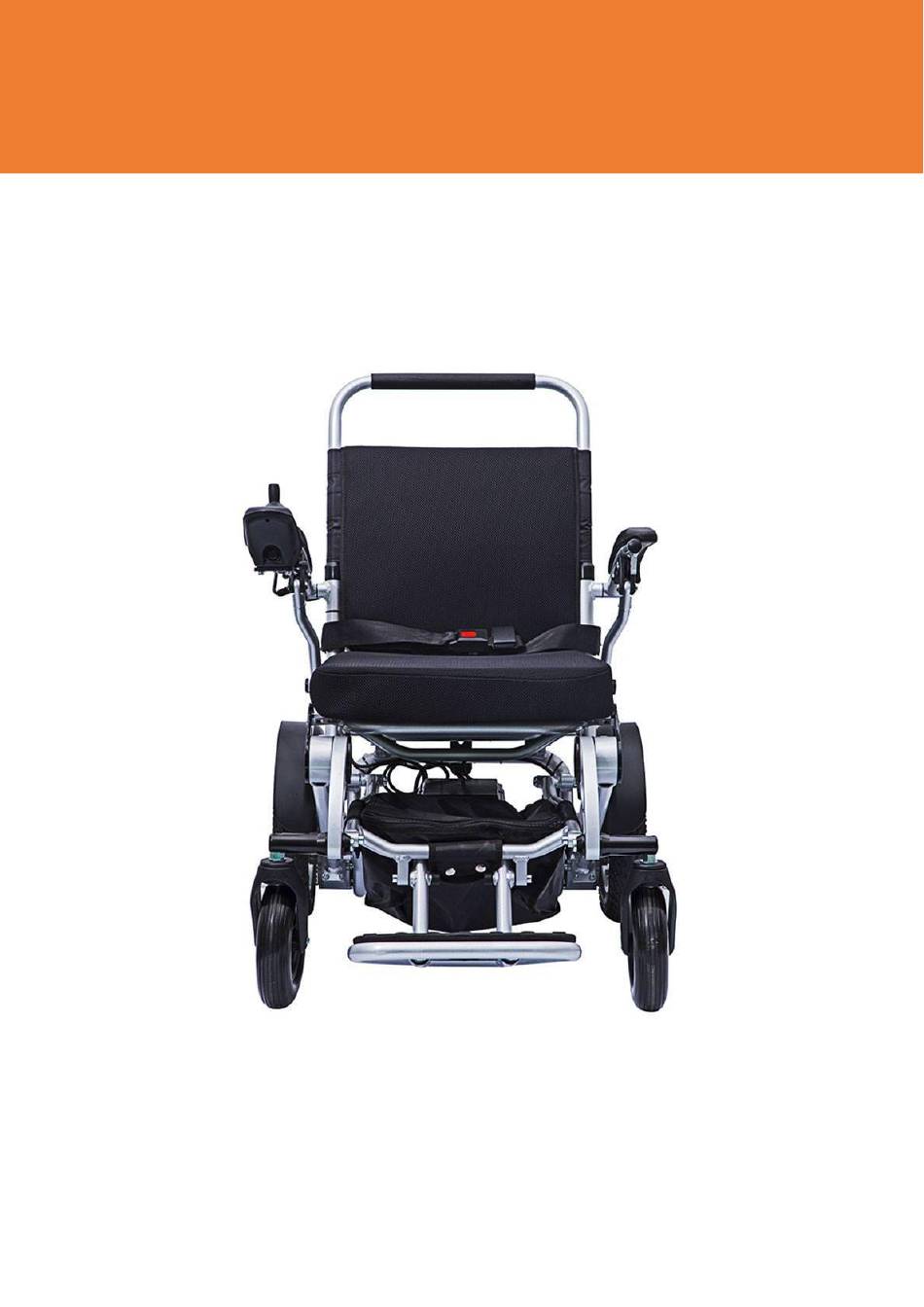

- Page 1 Instruction Manual Operating Instruction Please read this manual before using the Freedom electric wheelchair...
-
Page 2: Table Of Contents
Instruction Manual Contents Precautions 1. Folding and Unfolding Folding Process Opening the safety hasp. (Check the images on page 2) Unfolding Process 2. Installing the Joystick Controller 3. Adjusting the armrest 4. Manual Operation 5. Joystick Operation 6. Charging Instructions 7. -
Page 3: Precautions
Instruction Manual Instruction Manual Precautions Please read this manual before using the Freedom electric wheelchair in order to operate and maintain it properly. PLEASE PAY ATTENTION TO THE FOLLOWING CONTENT WITH THESE WARNING SYMBOLS. FAILURE TO TAKE PRECAUTIONS COULD RESULT IN SERIOUS INJURIES. -
Page 4: Folding And Unfolding
Instruction Manual Instruction Manual 1. Folding & Unfolding 1.1 Folding Process Step 1 Open the safety hasp, check the image below to see how it should open. Step 2 While holding the seat cushion with one hand, grab the backrest with your other hand and push forward to fold the chair down. -
Page 5: Installing The Joystick Controller
Instruction Manual Instruction Manual 2. Installing the Joystick Controller Step 1 Insert the controller joystick into the armrest tube and tighten the knob to fix it into position. Step 2 Connect the aviation plug into the battery socket. Keep in mind the orientation of the plug and socket so they are aligned properly. -
Page 6: Manual Operation
Instruction Manual Instruction Manual 4. Manual Operation Press down on the clutch handle to keep the electromagnetic brake in the separation position. This will allow the wheels to move freely allowing someone to push the chair. If the user operates the chair without assistance, the electromagnetic brake must be at the engaged position. -
Page 7: Joystick Operation
Instruction Manual Instruction Manual 5. Joystick Operation Power on/0ff Decrease speed Increase speed Horn Joystick • Joystick: Controls the chairs direction and speed. • Power on: Press to turn on the power. • Power off: Press again to turn off the power. •... -
Page 8: Charging Instructions
Instruction Manual Instruction Manual 6. Charging Instructions Insert the charger into the joystick socket (as shown) while being mindful of the plug orientation. Insert the charger into an electrical outlet which will cause the charging light to turn Red indicator light means the battery is charging. -
Page 9: Safety Guide
Instruction Manual Instruction Manual Safety Guide • The user must be of sound mind and judgement. • The user must read the instruction manual before operating the chair to get familiar with its components and features. • The user should practice driving with assistance in a safe environment on open and flat land before normal use. -
Page 10: Moving Backwards
Instruction Manual Instruction Manual Instruction Manual Moving backwards • Please be aware of what is behind you before manoeuvring backwards to avoid collisions. • Gently pull the joystick backwards. Turning • To turn push the joystick to the desired angle, either the left or right. •... - Page 11 Instruction Manual Instruction Manual Driving fast • Push the joystick all the way forward in the direction you want to go. • Pull the joystick back to the middle of the controller if you do not feel that you are in control. Driving over small curbs •...
- Page 12 Instruction Manual Instruction Manual Driving continued Driving on paths • The user should stay on the path and avoid using roads unless this is to cross the street. (Pay attention to obstacles and avoid contact with them) Crossing the street •...
- Page 13 Instruction Manual Instruction Manual Safety Guide Never attempt the following Driving over train tracks • Never cross train tracks alone, we highly recommend you are assisted by a friend or loved one. Driving on a steep incline • Attempting to drive on an incline too steep could result in the chair to rollover.
- Page 14 Instruction Manual Instruction Manual Safety Guide continued Never attempt the following Children • Do not allow children to access the chair. • Do not allow children access to the battery or electrical components of the chair. It should be stored in a cool, dry area that children do not have access to. Cleaning the chair •...
-
Page 15: Appendix
Instruction Manual Instruction Manual Appendix 8. Warranty -13-...
