Summary of Contents for Jabra Elite Active 45e

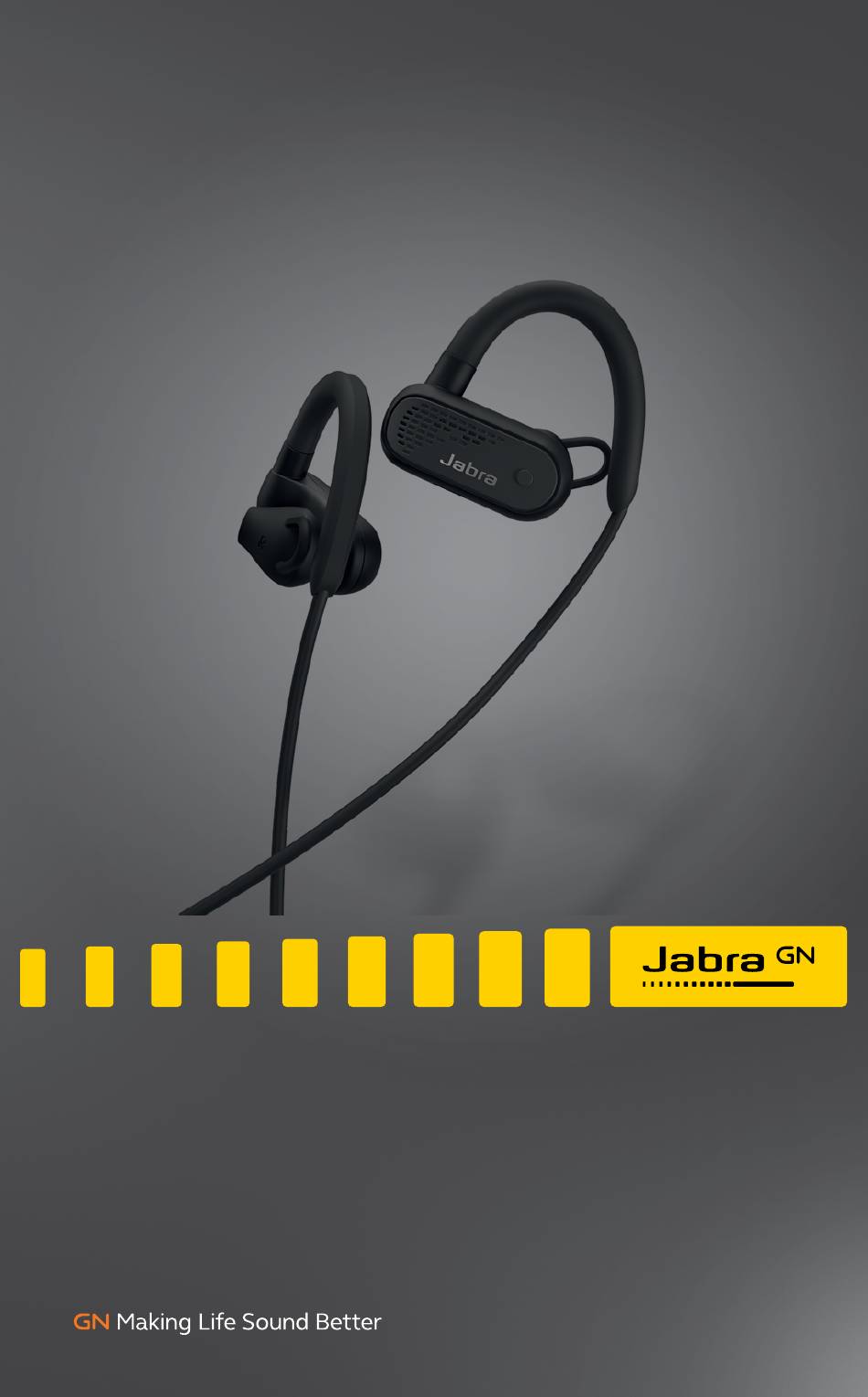

- Page 1 Jabra Elite Active 45e User manual...
- Page 2 ® © 2019 GN Audio A /S. All rights reserved. Jabra is a ® trademark of GN Audio A/S. The Bluetooth word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by GN Audio A/S is under license.
-
Page 3: Table Of Contents
1. Welcome .........4 2. Jabra Elite Active 45e overview 5 3. How to wear ........6 4. How to charge .......7 4.1 What the LEDs mean 5. How to connect ......9 5.1 Power on/off 5.2 Pairing with a smartphone 6. How to use ......... 11 6.1 Calls &... -
Page 4: Welcome
1. Welcome Thank you for using the Jabra Elite Active 45e. We hope you will enjoy it! -
Page 5: Jabra Elite Active 45E Overview

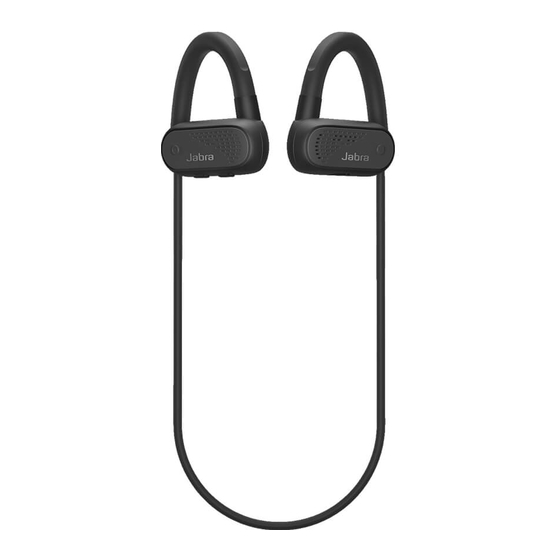

2. Jabra Elite Active 45e overview Left Voice button Voice Assistant Mute microphone Micro-USB charging Right Multi-function button Power on/off (hold) Volume up button Play/pause music Volume up Answer/end call Next track (hold) Bluetooth pair (hold) Volume down button Volume down... - Page 6 3. How to wear The earbuds are worn with the cable behind the neck and the earhooks behind each ear. 1. Insert the earbud into your ear canal, ensuring the looped eargel fits into the ridge of your ear, as illustrated. 2.
-
Page 7: How To Charge
To charge the earbuds, connect a USB charging cable to the USB charging port on the left earbud. It is recommended to charge the earbuds using the supplied Jabra charging cable, however it is possible to charge the earbuds using a compatible charger. -
Page 8: 4.1 What The Leds Mean
4.1 What the LEDs mean Battery LED Status LED Full Power on Medium Power off Pairing mode Resetting Very low... -
Page 9: How To Connect
5. How to connect 5.1 Power on/off On: Press and hold (1 sec) the Multi-function button. The LED will flash green and you will hear a power on tone. 1 sec Off: Press and hold (3 sec) the Multi-function button. The LED will flash red and you will hear a power off tone. -
Page 10: 5.2 Pairing With A Smartphone
(3 sec) the Multi- function button until the LED flashes blue and you hear an announcement in the earbuds. 3 sec 2. Go Bluetooth menu your smartphone and select the Jabra Elite Active 45e from the list of available devices. - Page 11 6. How to use Left Voice button Voice Assistant Mute microphone Micro-USB charging Right Multi-function button Power on/off (hold) Volume up button Play/pause music Volume up Answer/end call Next track (hold) Bluetooth pair (hold) Volume down button Volume down Previous track (hold) 6.1 Calls &...
- Page 12 Press the Volume up or Volume down button, Adjust volume when listening to music or on a call Press and hold (1 sec) Next track the Volume up button (smartphone only) Press and hold (1 sec) the Volume down button to restart the current track.
-
Page 13: 6.2 Voice Assistant
6.2 Voice Assistant The Jabra Elite Active 45e enables you to speak to Siri or Google Assistant on your smartphone using the Voice button. Left Voice Assistant Activate Siri, Google Assistant Press the Voice or Amazon button, when not Alexa (phone... -
Page 14: 6.3 Multiple Call Handling
6.3 Multiple call handling The earbuds can answer or reject calls when you are already on a call. Right Multiple call handling Press the End current call and Multi-function answer incoming call button Put current call on Hold (1 sec) the hold and answer Multi-function incoming call... -
Page 15: 6.4 Voice Guidance
Voice guidance is enabled by default. Left Voice Guidance Hold (5 sec) the Voice Turn Voice button until you hear guidance on/off an announcement in the earbuds Alternatively, use Jabra Sound+ on your smartphone to turn Voice guidance on or off. -
Page 16: 6.5 How To Reset
Multi- function button until the LED lights up purple. You will then need to re-pair the earbuds. 6.6 Firmware update Firmware updates improve performance, or add new functionality to Jabra devices. Download Jabra Sound+ for firmware updates. -
Page 17: Jabra Sound+ App
7. Jabra Sound+ app Jabra Sound+ Customize your music Manage voice prompts Register your 2-year warranty... -
Page 18: Support
8. Support 8.1 FAQ View the FAQs on Jabra.com/help/eliteactive45e 8.2 How to care for your earbuds • Always store the earbuds with the power off and safely protected. • Avoid storage at extreme temperatures (above 50°C/122°F or below -10°C/14°F). This can shorten battery life and may affect the earbuds.
