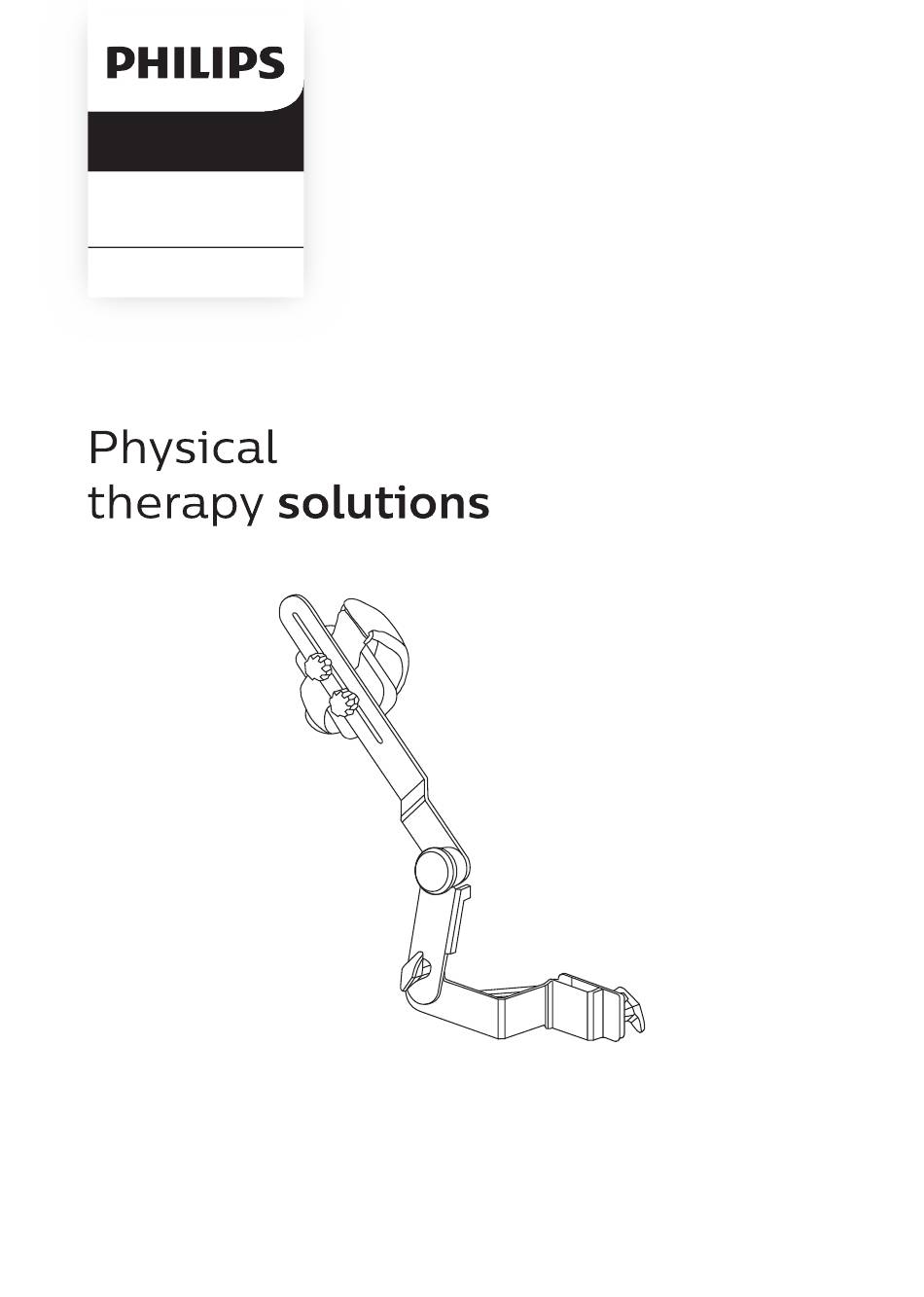

- Page 1 ReCare Lower extremity bi-lateral stabilization set PTE7020MA Register your product and get support at www.philips.com/welcome...
- Page 2 Contents Bi-lateral calf support assembly Set-up and use of the bi-lateral calf support Exploded view drawing Parts list...
- Page 3 Bi-lateral calf support assembly Step 1. Install the Calf support bracket (Left bracket is part number 1, Right is #2) to the outside of the pedal support tube. Push the bracket all the way to the top of the tube as shown.
- Page 4 Set-up and use of the bi-lateral calf support Place the patient’s foot on the foot pedal and secure with the straps if needed. Align the Calf support pivot point with the patient’s ankle. If it is not already aligned loosen the T-Handle knob and slide the adjustment plate up or down to align then tighten the knob securely.
- Page 5 Secure the patient’s calf to the support pad using the Velcro strap. The Bi-lateral calf support is now ready for use.
- Page 6 Exploded view drawing...
-
Page 7: Parts List
Parts list Item Description Left bracket (bottom) Right bracket (bottom) Adjustment bracket Articulating bracket Securing plate 6003_bearing Calf support pads T-handle knob Threaded t-handle knob 1/4" carriage bolt Velcro strap Cup washer M8 socket head bolt End cap Calf pad locking knobs 1/4"... - Page 8 2019© Dyaco Commercial & Medical North America LLC. All right reserved. The Philips trademark and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. used under license. This product has been manufactured by and is sold under the responsibility of Dyaco Commercial & Medical North America LLC,...
