MAG SL100DC Series Installation Manual

Sliding gate system

Advertisement

Quick Links

Gate Automatic System
MAG SL100ACx series is a complete sliding gate automation system.

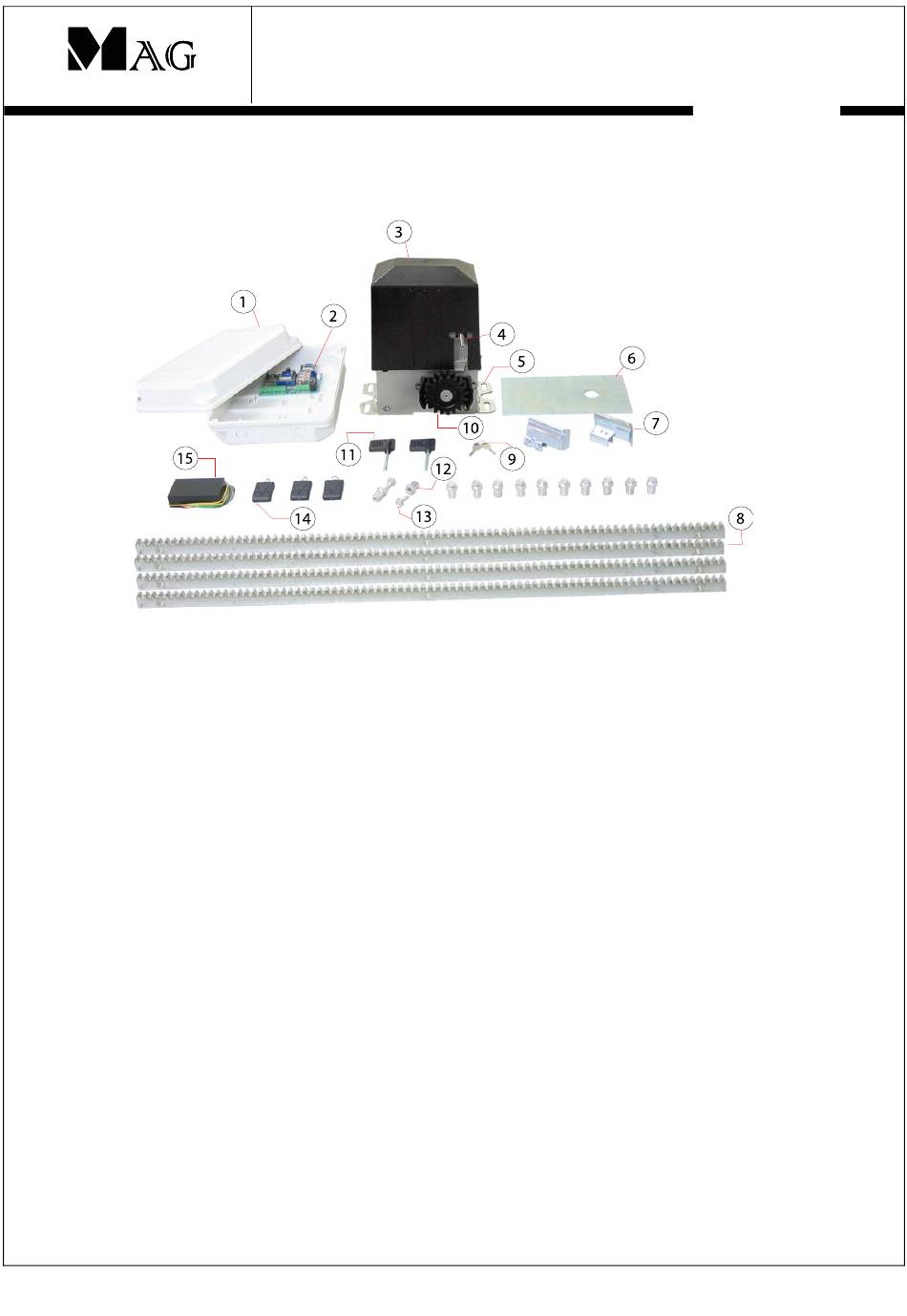

Components in MAG SL100DCx series
1
PVC box
2
Control board
3
Motor
4
Limit switch
5
Mounting bracket
6
Base plate
7
Limit switch stopper
8
Gear rack
Preliminary check
To ensure trouble-free operation, make sure that the gate (whether existing or yet to be installed) has the following
specification:
Max gate weight 600kg
Strong and rigid leaf frame
Flat leaf face, with no protruding parts and no vertical members
Straight, smooth and even movement of the least over its entire travel
No sideway oscillation of the leaf
Upper and lower sliding system in perfect condition
The use of floor tracking with a rounded channel is preferred because it reduces friction in the sliding
movement
Only two slide wheel
If any welding or brazing is required on the gate, it should be done before installing the automation system. The
condition of the gate structure will have direct affect on the reliability and safety of the automation system. We are
ready to install SL100P after making sure all the above items are checked.
©
Install_CelmerSL100P - All specification and suggested dimension is for reference only- subject to change without further notice.
SL100DCx series – Sliding gate system
Installation guide
9
Key to unlock clutch
10
Pinion gear
11
Alan key to release clutch
12
Spacer (with screw tread)
13
Bolt
14
Remote control transmitter
15
Remote control receiver
Application note
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL100DC Series and is the answer not in the manual?

Questions and answers

Summary of Contents for MAG SL100DC Series

  • Page 1 SL100DCx series – Sliding gate system Installation guide Gate Automatic System Application note MAG SL100ACx series is a complete sliding gate automation system. Components in MAG SL100DCx series PVC box Key to unlock clutch Control board Pinion gear Motor Alan key to release clutch...
  • Page 2: Standard Installation Layout

    Suggested installation steps include the following: 1. Doing the wiring groundwork at installation site 2. Installation of the operator motor 3. Installing control panel to the pillar wall 4. Installation of gear rack to gate 5. Mounting the limit switch stopper to the gear rack 6.
  • Page 3 Installing the motor operator © Install_CelmerSL100P - All specification and suggested dimension is for reference only- subject to change without further notice.
  • Page 4: Installing Control Panel

    Installing control panel The PVC box base is mounted onto the wall through using screws. The hole into the control box can be sealed with silicon to prevent insects, or water to go in. Pillar wall Control board Remote control receiver Let the remote control yellow wire (antenna) come out 3...
  • Page 5: Wiring Connection

    Wiring connection ML43 FORCE OVERLOAD TIMER HI- SPEED 317T SOFT HARD FORCE LIMIT SWITCH RLY5 AUTO CLOSE CON7 CON8 CON6 CON5 CON4 CON3 CON2 CON1 21 12 0 OPN CM CLS CM O/C CL OP NC CM MOTOR 0 12 TRANSFORMER DC12V LIMIT SW...
  • Page 6 Installing the gear rack Gear rack mounting location must be parallel to the pinion gear horizontal axis after the operator motor is fully mounted at that specific installation site. Using alignment liquid level ruler or simply following the gate frame is not an accurate method.
  • Page 7 Installing the limit switch stopper The exact location of the limit switch on gear rack shall be adjusted in such a way that it will be able to trigger the limit switch at desired fully closed and fully open position. This limit switch act as an indicator to the controller to stop the gate movement.
  • Page 8: Remote Control

    Remote Control The following diagram illustrates the functions of a remote control. Button 1 and button 2 on the wireless remote Press once to OPEN. control transmitter has the same function. Press again to STOP. Press again to CLOSE. Press once to OPEN. Press again to STOP.
  • Page 9: Manual Operation

    © COPYRIGHT 20 Feb 2012. All diagrams are for illustration only and does not necessary reflect the actual exact assembly/installation. This documentation served as a reference only. It is subject to change without further notice. All the diagrams and information in this documentation may not be duplicated or modified in any form without the written approval from MAG®. ©...
