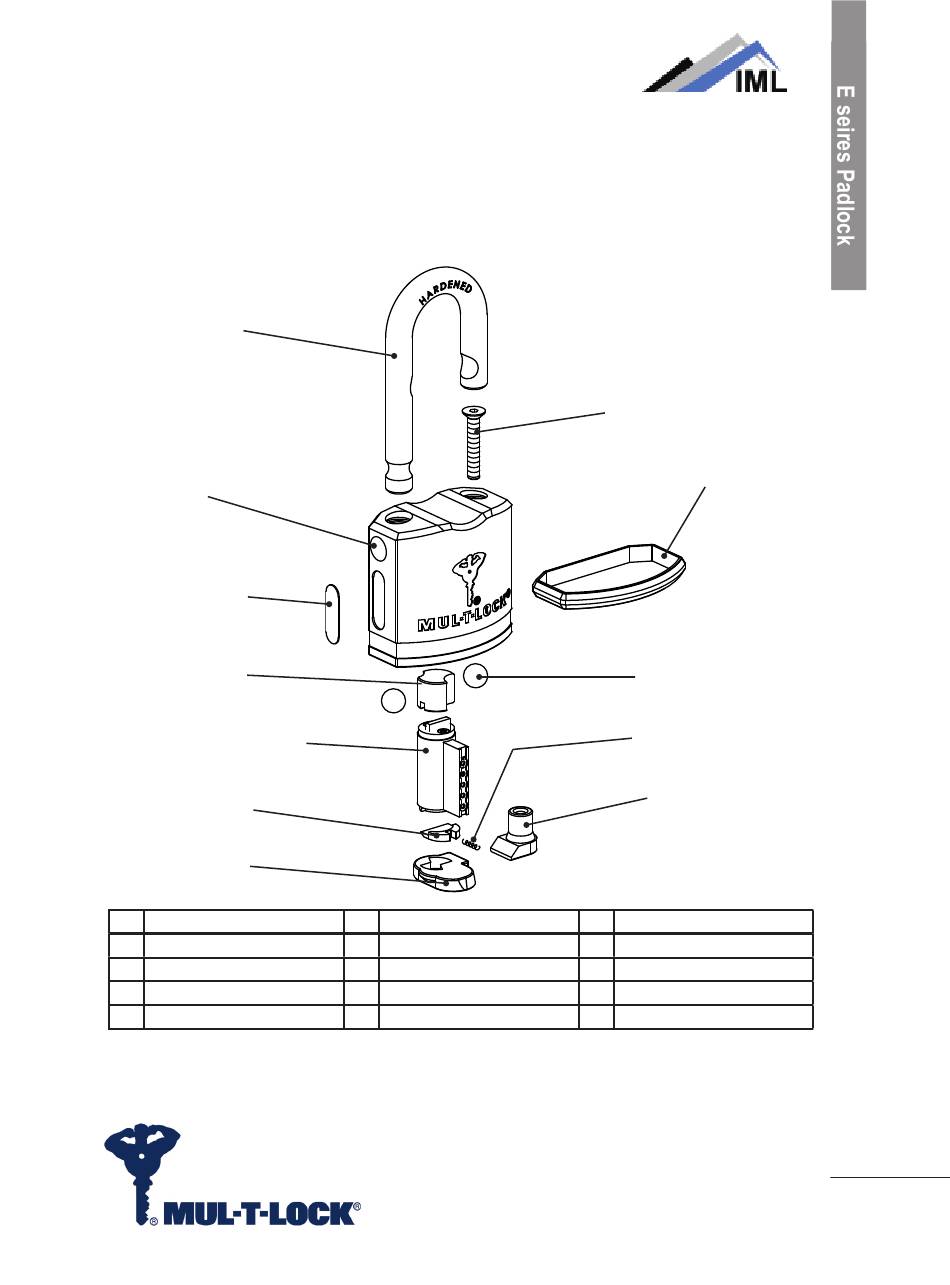

E-Series Padlock
2
7
3
2
8
4
No.
Part
1
Padlock body
2
Shackle
3
Activator cam
4
Body cover
No.
Part
5
Locking plate
6
Bumper
7
Identification plate
8
Unified shutter
M u l - T - L o c k Te c h n o l o g i e s L t d .
The Mul-T-Lock name and the Muscleman Logo, and any other name, mark or logo used by Mul-T-Lock and
marked by an ® or a ™ sign, are registered/pending trademarks of Mul-T-Lock Ltd. in various countries.
Mul-T-Lock reserves the right to make any product improvements or modifications without prior notice.
0
6
9
5
No.
Part
9
Ball bearing 10
10
Socket head screw M5x30
11
Spring for shutter
12
Cylinder
w w w . M u l - T - L o c k . c o m
2
© 2 0 0 6
Advertisement
Summary of Contents for IML E Series
- Page 1 E-Series Padlock Part Part Part Padlock body Locking plate Ball bearing 10 Shackle Bumper Socket head screw M5x30 Activator cam Identification plate Spring for shutter Body cover Unified shutter Cylinder M u l - T - L o c k Te c h n o l o g i e s L t d . w w w .
- Page 2 E-Series Padlock Protected shackle Part Part Part Padlock body Locking plate Ball bearing 10 Shackle Bumper Socket head screw M5x30 Activator cam Identification plate Spring for shutter Body cover Unified shutter Cylinder M u l - T - L o c k Te c h n o l o g i e s L t d . w w w .
- Page 3 Disassembly Instructions Unlock the padlock with the Fig. operating key. Unscrew one socket head screw (10) using 3 mm "allen" key. Remove locking plate (5). Fig.2 Lock the padlock with the operating key. Take operating key out and remove body cover (4). M u l - T - L o c k Te c h n o l o g i e s L t d .
- Page 4 Remove shutter spring (11) and shutter (8). Remove cylinder (12), activator cam (3) and two ball bearings (9). Remove shackle (2). M u l - T - L o c k Te c h n o l o g i e s L t d . w w w .
- Page 5 Assembly Instructions Insert shackle (2) in the position as illustrated. NOTE: Pay special attention to shackle position (height and rotation)! Insert two ball bearings (9). Smaller groove Insert activator cam (3) in toward the longer leg of the shown position. shackle NOTE: Activator cam (3) is not symmetrical.
- Page 6 Insert cylinder (12). Insert operating key and rotate the cylinder until it reaches the right position. Lock cylinder (12) and remove operating key. Install shutter (8) and shutter spring (11). M u l - T - L o c k Te c h n o l o g i e s L t d . w w w .
- Page 7 Install body cover (4). Insert operating key and unlock shackle (2). Install locking plate (5). Using 3 mm "allen" key tighten the socket head screw (10). M u l - T - L o c k Te c h n o l o g i e s L t d . w w w .
- Page 8 E-Series Sliding bolt (SBE) Part Part Part Activator cam Cylinder front cover Ball bearing 5mm Bolt pusher Ball bearing 4 mm Latch hole plug Plastic bumper Shutter spring Spring Bolt stopper Shutter Latch Socket set screw with cone point Cylinder Lock body Spring for bolt stopper Socket set screw with cone point 14...
- Page 9 SBE Disassembly Instruction Unlock the padlock with operating key. Mount on the bolt disassembling ring and remove the bolt (21) by pulling it out . Take out pin and spring (18,20) . Using screw driver push the bolt pusher (16) until the latch (12) pops up.
- Page 10 Remove right bumper (17). Using 2.5 mm "allen" key insert into hole (located beneath bumper) and loosen screw (19) until you feel resistance.(Do not disassemble completely). Remove cylinder front cover (2), shutter spring (4) and shutter (5). Take out cylinder (6) and activator cam (8).
- Page 11 SBE Assembly Instruction Install activator cam (8) and cylinder (6). Install shutter spring (4) and shutter (5). Place cylinder front cover(2). using 2.5 mm "allen" key, tighten screw (19). Install pin and spring (18,20). Insert key and check for smooth operation. Note: you may need to push bolt pusher (16) in order to turn the key.
