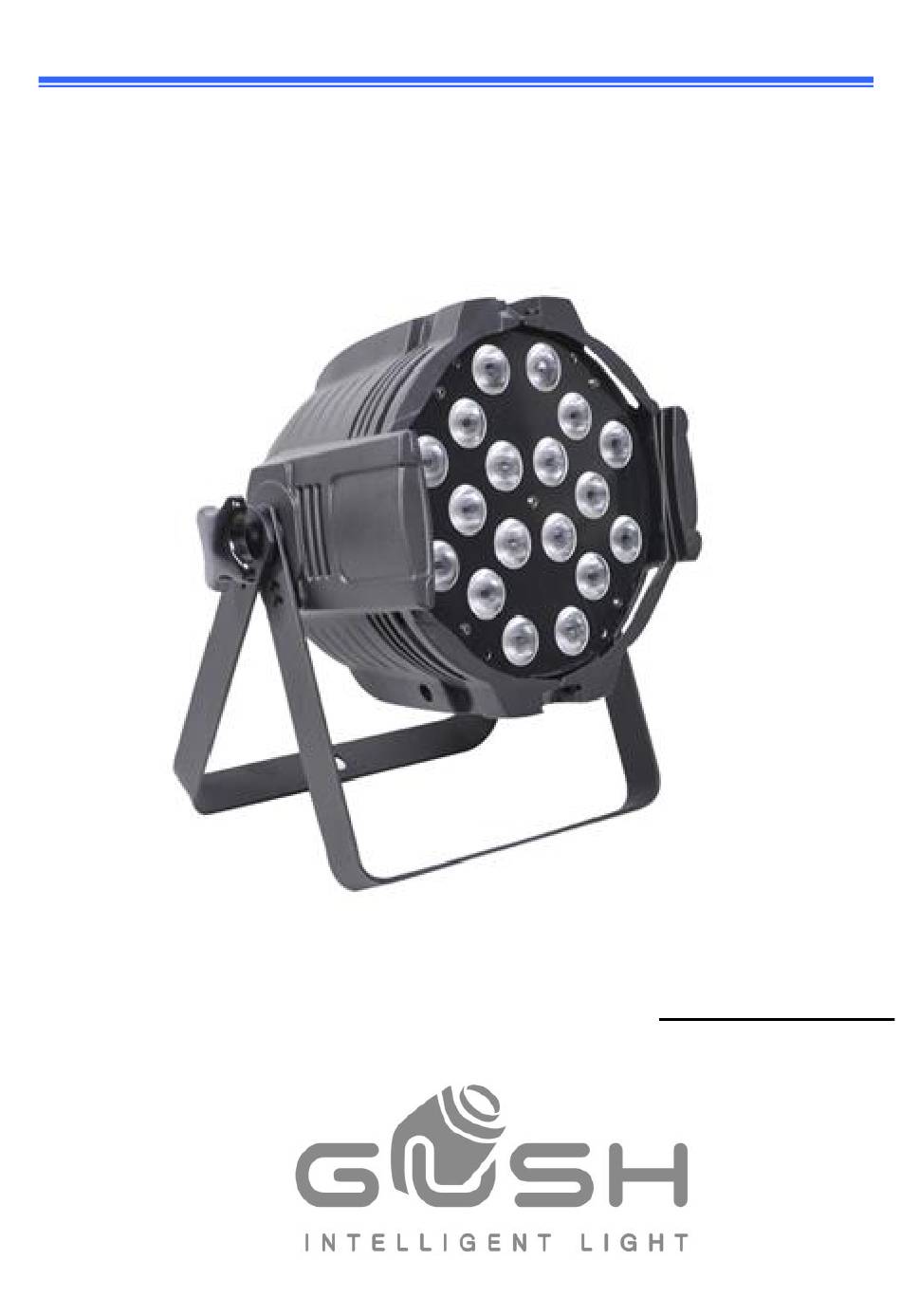

- Page 1 Gush GP-1812 Q5 18*12W 5in1 RGBWA PARCAN User manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety Instructions ................2 2. Technical Specifications ............... 4 3. How To Control The Unit ..............5 4. Trouble shooting .................. 8 5. Fixture Cleaning .................. 9 statement product well capability intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &... - Page 3 least 50cm from adjacent surfaces. Be sure that no ventilation slots are blocked. Disconnect main power before replacement or servicing. Make sure there are no flammable materials close to the unit while operating as it is fire hazard. ...
-
Page 4: Technical Specifications
or attempt any repairs yourself. In the unlikely event your unit may require service, please contact your nearest dealer. Installation: The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. -
Page 5: How To Control The Unit
Data In/Out socket: 3-pin & 5-pin XLR sockets Protection Rating: IP20 Features Outstanding color macro effect ,fade and built in programs Dimmer: 0~100% smooth dimming The lumen derails like below: 25° 1360 2760 2470 1160 6600 RGBWA 3. How To Control The Unit The DMX512 is widely used in intelligent lighting control,with a DMX 512 controller.connect several lights together,dmx in and dmx out, 3 pin XLR connectors: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal... - Page 6 Display: MENU To select the programming functions DOWN To go backward in the selected functions To go forward in the selected functions ENTER To confirm the selected functions Set DMX Address Code Press "Menu" to "Set DMX Address",and press"ENTER" keys to enter into Show "Set DMX Address DMX Address:001",Press the "UP and DOWN"...
- Page 7 W000-W255 manual adjust white color from dark to bright manual adjust amber color from dark to A000-A255 bright Manual adjust strobe from slow to quick S000-S255 full color gradual change from slow to A00-A50 quick AUTO full color jump change from slow to quick A51-A99 sound control SOUND...
-
Page 8: Trouble Shooting
0-255 Strobe effect slow to fast Rainbow: 0-127 Cross fading colors from slow to fast 28-255 Jumping colors from slow to fast 4. Trouble shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. -
Page 9: Fixture Cleaning
C. One of the channels is not working well 1. The stepper motor might be damaged or the cable connected to the PCB is broken. 2. The motor’s drive IC on the PCB might be out of condition. 5. Fixture Cleaning The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output.
