Summary of Contents for Sonero X-AVT115

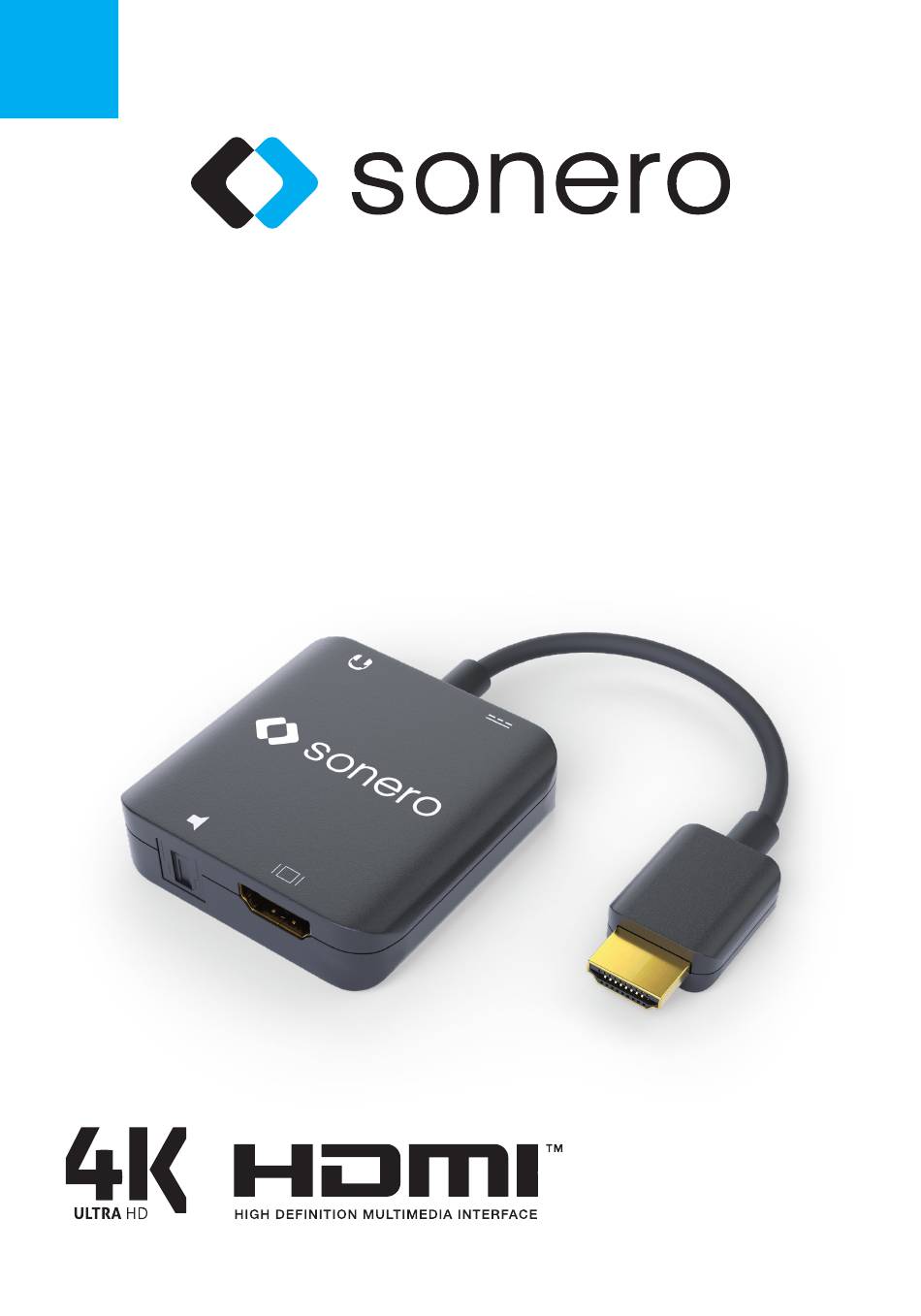

- Page 1 HDMI AUDIO EXTRACTOR WITH 4KX2K, PIGTAIL INSTRUCTION MANUAL X-AVT115 Version: 2018-08-22...
-
Page 2: Table Of Contents
TABLE OF CONTENT Introduction Intended Use Safety Instruction Delivery Contents Features Specifications Connection Plan Interface Operation Maintenance Cleaning Warranty and Liability CE Conformity Disposel of the Device FCC compliance statement Disclaimer - 2 -... -
Page 3: Introduction
INTRODUCTION This product is an HDMI audio extractor with resolution up to 4Kx2K@60Hz It not only supports to connect DVD to HDTV, but also supports to connect amplifier receiver via its Toslink port, letting you enjoy high definition video and meanwhile enjoy high-quality audio. This audio extractor extracts 5.1 audio from the source and transmit it to the amplifier with Toslink cable and restore Dolby 5 1 or DTS 5 1 audio through multi-channel sound system, forming a perfect home theatre Besides, when connecting the headphone... -
Page 4: Delivery Contents
Do not leave packaging material lying around carelessly. These may become dangerous playing material for children Suffocation Risk! Keep packaging materials away from children! Protect the product from extreme temperatures, direct sunlight, strong jolts, high humidity, moisture, flammable gases, vapors and solvents. Do not place the product under any mechanical stress If it is no longer possible to operate the product safely, take it out of operation and protect it from any accidental use Safe operation can no... -
Page 5: Features
FEATURES • Follows HDMI resolution up to 4Kx2K@60Hz • Supports 600MHz/6Gbps per channel (18Gbps all channels) bandwidth • Supports video resolutions up to 12-bit 4K (60 Hz), 12-bit 1080p (60 Hz) or 12-bit 720p/1080i (60 HZ) • Supports 3D formats up to 600 MHz •... -
Page 6: Connection Plan
CONNECTION PLAN HDMI INPUT HDMI SOURCE Connect this port to HDMI source TOSLINK OUTPUT Connect this port to amplifier with Toslink cable to enjoy high-quality audio HDMI OUTPUT Connect this port to HDMI HDTV HEADPHONE POWER SUPPLY MICRO USB INPUT Supply power (5V/1A) to this product HEADPHONE OUTPUT... -
Page 7: Interface
INTERFACE MODEL NO.: X-AVT115 CHARGE NO.: XXXX PureLink GmbH Von-Liebig-Str. 10 | D-48432 Rheine | www.purelink.de OPERATION 1 Connect the input of this product to HDMI Source 2 Connect the HDMI output of this product to HDMI Display 3 Connect toslink port to amplifier to enjoy 5.1 high-quality audio or insert headphone to the headphone output port to enjoy ordinary 2.0 audio. -
Page 8: Maintenance
MAINTENANCE There are no components located inside the product that require maintenance Never open or attempt to dismantle the product Maintenance, modifications and repairs are to be performed exclusively by an expert or at a qualified shop. If you have questions which remain unanswered by these operating instructions, contact our technical support service or other technical personnel CLEANING... -
Page 9: Warranty And Liability
Any use other than described in this user`s manual is not permitted and causes loss of warranty, loss of guarantee, and non-liability CE CONFORMITY PureLink GmbH hereby declares that this product X-AVT115 complies with Directive 2014/30/EU The full text of the EU Declaration of Conformity is available at the following Internet address: www.purelink.de/ce/4251364709801_CE.pdf... -
Page 10: Disposel Of The Device
DISPOSEL OF THE DEVICE WEEE-Reg No : DE 93 847 290 According to the European WEEE directive, any electrical and electronic equipment must not be disposed of along with consumer waste As a consumer, you are committed by law to deposit electrical and electronic devices at public collecting points or to the dealer for free at the end of the device’s lifetime Details are regulated in the respective national legislations The Wheelie Bin symbol on... - Page 11 If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •...
-
Page 12: Disclaimer
We reserve our right for misprints and changes to the device, packaging or user manual HDMI is a registered trademark of HDMI Licensing Administrator, Inc. ® Dolby and the double-D symbol are registered trademarks of Dolby Laboratories Sonero ® PureLink GmbH Von-Liebig-Straße 10 D-48432 Rheine info@purelink.de www.purelink.de...
