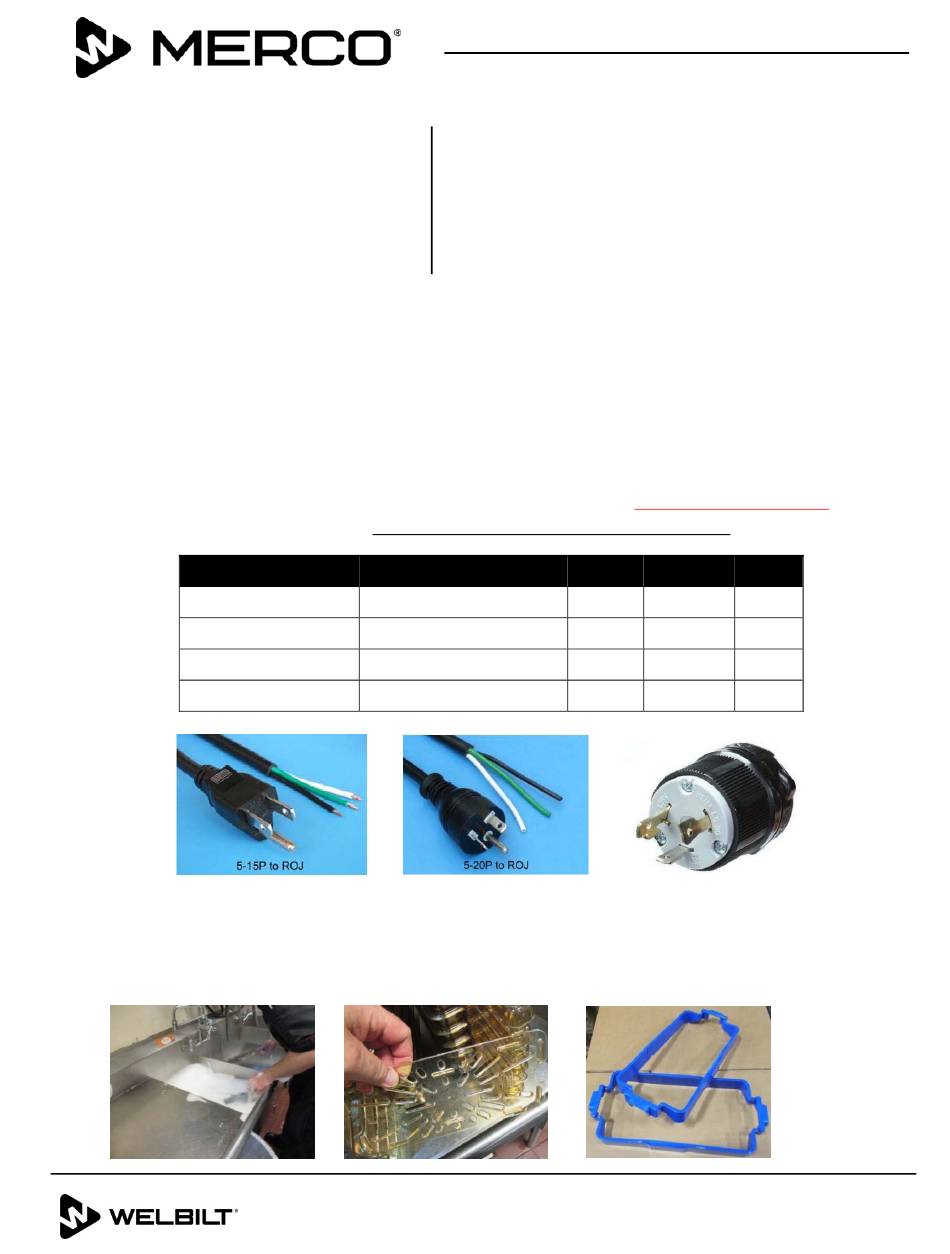

Follow these instructions to install the MercoMax (MHC) Visual Holding Cabinets.
1. Unpack equipment and accessories at the FAS location to ensure the equipment arrived
in good condition and all pieces are included. The FAS should plug in units to ensure
they operate correctly. Coordinate with the store to ensure the staff will be present for
training on the night of install and the "morning" person is present so they can train the
next morning.
2. Ensure the proper outlets / breakers for the cabinets are installed in the store where
the cabinets are going to be located.
match the plugs listed below.
Domestic Model
MHC22SNT1T
MHC24SNT2T
MHC52SNT1T
MHC54SNT1T
3. Read the Installation and Operation manual to understand proper installation, set up,
operation, cleaning, and preventive maintenance.
4. Wash all tray seal, trays, RFID collars, and trivets / false bottoms. This is done at the
store with the staffs help. See photos below and on the following page.
Subject: FAS Installation Instructions (Scope
of Work for RISE)
Models affected: MercoMax (MHC) Visual
Holding Cabinets
Receptacles will be #'s 5-15R, 5-20R, & L5-30R to
This may have to be done with a site visit.
Voltage, Cycle, Phase Watts
120V, 60H, 1Ph
120V, 60H, 1Ph
120V, 60H, 1Ph
120V, 60H, 1Ph
Document Number: MER_IS_0009 8197479 06/2018
8700 LINE AVENUE, SHREVEPORT, LA 71106
WWW.MERCOPRODUCTS.COM
Amps
Plug
660
5.5
5-15P
1320
11.0
5-15P
1920
16.0
5-20P
2880
24.0
L5-30P
L5‐30P
MERCO
800-379-7278
1 of 7
