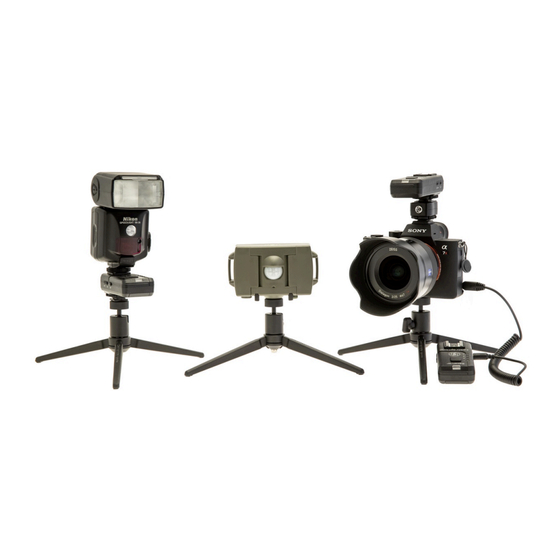

Camtraptions PIR Motion Sensor v3
Index
Index ...................................................................................................................... 1
Connecting Camera and Flashes . ............................................................................. 2
Connect a Wired Camera . .......................................................................................................... 2
Connect a Wireless Camera . ...................................................................................................... 2
Wireless Flashes with a Canon or Nikon Camera . ...................................................................... 2
Wireless Flashes with Other Cameras ....................................................................................... 3
Program Selection .................................................................................................. 3
Switch 3 . ................................................................................................................. 4
Interval Mode ............................................................................................................................ 4
3-shot Burst Mode . .................................................................................................................... 5
Switches 4 to 6: Transmitter Programs . ................................................................... 5
Program 1: Standard . ................................................................................................................. 5
Program 2: Wake Flashes on CH+1 . ........................................................................................... 5
Program 3: Wake Only . .............................................................................................................. 6
Program 4: Wired Only .............................................................................................................. 6
Program 5: Speed Boost ............................................................................................................ 6
Bulb Mode . ............................................................................................................. 7
Switch 3: Enable Day Shot ......................................................................................................... 7
Switch 4: Enable Two Night Shots ............................................................................................. 7
Transmitter Program 1: Wired . .................................................................................................. 8
Transmitter Program 2: Wired with delay ................................................................................. 8
Transmitter Program 3: Wireless Camera ................................................................................. 8
Transmitter Program 4: Wireless Flash . ..................................................................................... 8
Time Dial in Bulb Mode . ............................................................................................................. 9
Luminosity Dial in Bulb Mode .................................................................................................... 9
Stills Mode Manual
Firmware Version 2.2
0
Advertisement
Table of Contents
Related Manuals for Camtraptions PIR v3
Summary of Contents for Camtraptions PIR v3
-
Page 1: Table Of Contents
Camtraptions PIR Motion Sensor v3 Stills Mode Manual Firmware Version 2.2 Index Index ........................ 1 Connecting Camera and Flashes ................ 2 Connect a Wired Camera ......................2 Connect a Wireless Camera ....................... 2 Wireless Flashes with a Canon or Nikon Camera ............... 2 Wireless Flashes with Other Cameras ..................3 Program Selection .................... 3 Switch 1 & 2: Day & Night Cut-off ................ 4 Switch 3 ........................ 4 Interval Mode ..........................4 3-shot Burst Mode ........................5 Switches 4 to 6: Transmitter Programs .............. 5 Program 1: Standard ........................5 Program 2: Wake Flashes on CH+1 .................... 5 Program 3: Wake Only . -
Page 2: Connecting Camera And Flashes
Wireless Flashes with a Canon or Nikon Camera To set up wireless flashes follow these steps: • Place a Camtraptions Wireless Transmitter in the camera’s hot shoe and set the channel to the PIR channel plus one. For example, if the PIR is set to channel 3, set the flashes to channel 4. If the PIR is set to channel 7 then the flashes should be set to channel 1. -
Page 3: Wireless Flashes With Other Cameras
If using a camera other than Canon or Nikon, for example, Sony or Fujifilm, you may need to use a Nikon hot shoe adapter to attach the Camtraptions Wireless Transmitter to the camera’s hot shoe. It is possible to source a Sony to Nikon hot shoe adapter from Amazon or Ebay if you are using a Sony camera. -
Page 4: Switch 1 & 2: Day & Night Cut-Off
Otherwise, the frame rate can be set via the Luminosity Dial from between 1 frame every second (fully anti-clockwise) to 1 frame every 7 seconds (fully clockwise). The gap after each burst is 2 seconds. Camtraptions PIR Motion Sensor v3 - Stills Mode Manual Page 4... -
Page 5: 3-Shot Burst Mode
PIR Channel. This allows any camera to be used as a still camera trap triggering flashes connected to wireless receivers. See Page 3 for more. Camtraptions PIR Motion Sensor v3 - Stills Mode Manual Page 5... -
Page 6: Program 3: Wake Only
A wake signal is also sent to the camera every minute to prevent it from sleeping or powering off. Battery life of the PIR will be approximately halved in this mode. Camtraptions PIR Motion Sensor v3 - Stills Mode Manual Page 6... -
Page 7: Bulb Mode
Switches 5 & 6: Transmitter Program The Transmitter Program is set as shown below: Camtraptions PIR Motion Sensor v3 - Stills Mode Manual Page 7... -
Page 8: Transmitter Program 1: Wired
If the delay is longer than necessary then the animal may move further from the trigger area by the time the flash fires. Finding the most appropriate delay time will take a Camtraptions PIR Motion Sensor v3 - Stills Mode Manual Page 8... -
Page 9: Time Dial In Bulb Mode
This means that as it gets brighter, there is less chance of blowing out the background. In Program 2 and 4, the Luminosity Dial sets the timing of the wireless signal as explained above. Camtraptions PIR Motion Sensor v3 - Stills Mode Manual Page 9... -
Page 10: Quick Start Pir & Camera Settings
“camera” socket on the side of a Camtraptions Wireless Receiver. • If using a Camtraptions Wireless Receiver, set it to Channel 1 as this is the default PIR Channel. Configure the camera as follows: •...
