Hissmekano LO-30 Installation Instructions

Doorlock LO-30/ LO-30S
Reference: Installation instructions LO-30
The LO-30 is a maintenance-free door lock for swing doors.
It is supplied with (LO-30S) or without (LO-30) mechanical
device for proving the locked and closed condition of the
door according to EN81-20 5.3.10. Activation by locking arm.
Lock can be ordered with 10mm longer bolt. See Figure 1
for dimensions.
Content of packaging
1. Doorlock
2. Door leaf Magnet (LO-30S)
3. Locking roller with shaft
Recommended tools
Screwdriver - Torx 20 and Allen key 6mm
Required material
4 screws M6x12mm and Epoxy glue or Pop rivet for the
door leaf magnet. Shims are ordered separately. Article
no. 2109020. Thickness 1mm.

1. Mounting of lock in the doorframe

The lock is mounted in the frame with screws in the moun-
ting holes. The holes are drilled and threaded according
1
to fig. 1. We recommend that you use one of our adapter
plates when replacing a lock with different hole pattern.

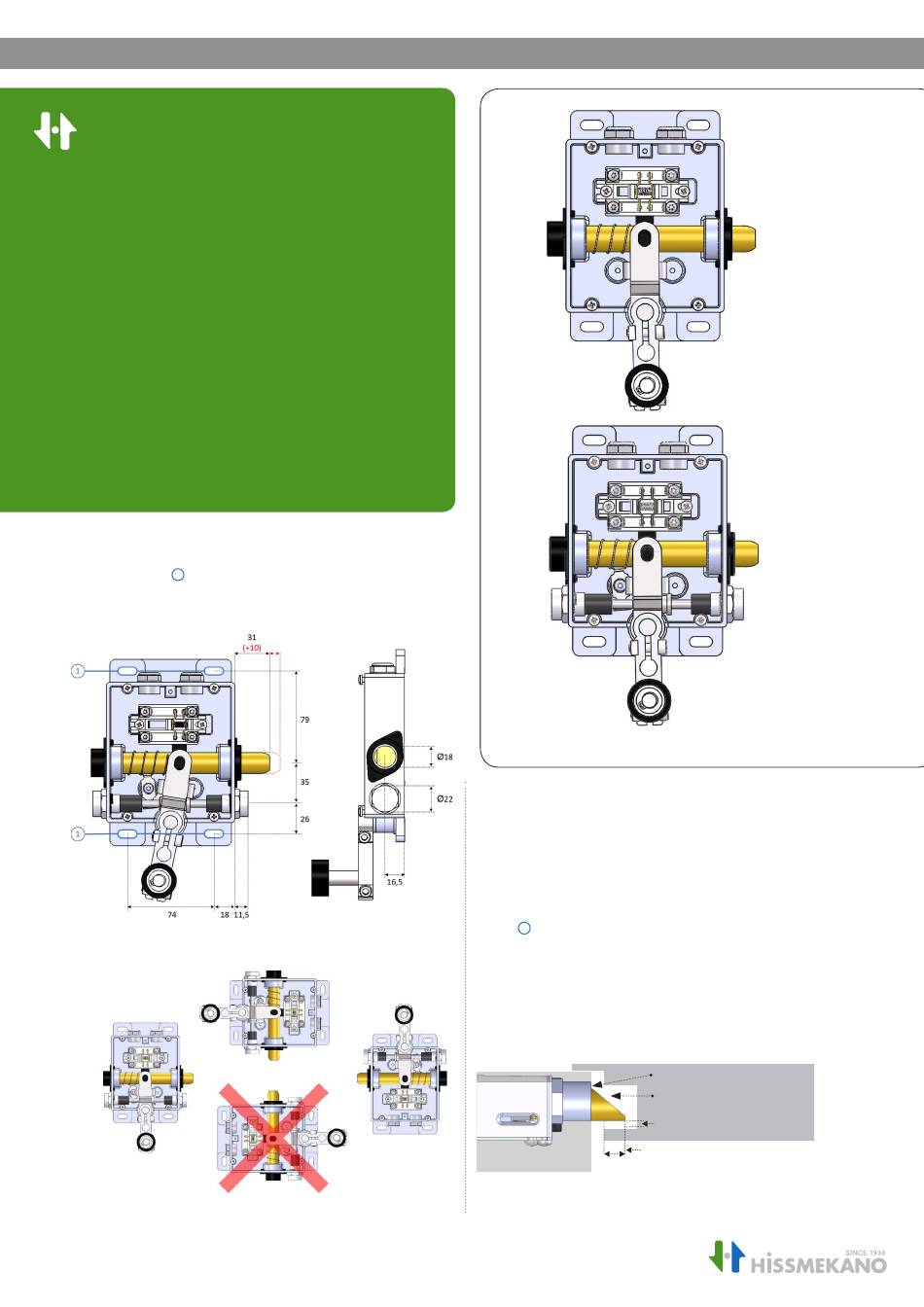

Figure 1 Distance between mounting holes
Figure 2 Approved positions
Hissmekano AB Reprovägen 7 SE-183 77 Täby Phone: +46-(0)8-586 272 00 Fa x: +46-(0)8-732 51 26 E-mail: info@hissmekano.se
I N S T A L L A T I O N I N S T R U C T I O N S
The pictures shows left hand locks

2. Adjustment of lock engagement and clearance

The door lock shall be adjusted so that the latching bolt
engagement is minimum 7mm + the closed-contact mo-
vement (about 2mm) in conformity to EN81-20. The front
surface of the magnet cap should align with the outside
of the door frame (applies to the LO-30S). The locking
engagement is adjusted by moving the lock in the oblong
holes (see figure 1).
1
The lock is adjusted so there is a clearance between the
latch bolt and the door leaf in locked position. We recom-
mend a clearance between 1-2mm. If necessary, shims
can be placed between the lock and the frame if the
clearance is too large.
Latching bolt engagement mini-
Door frame
mum 7 mm with closed contact
Figure 3 Locking engagement and clearance viewed from the
bottom of the lock.
LO-30
LO-30S
Magnet cap Door leaf
Latching bolt
Clearence latching bolt/
door leaf 1-2mm
1 OF 2
