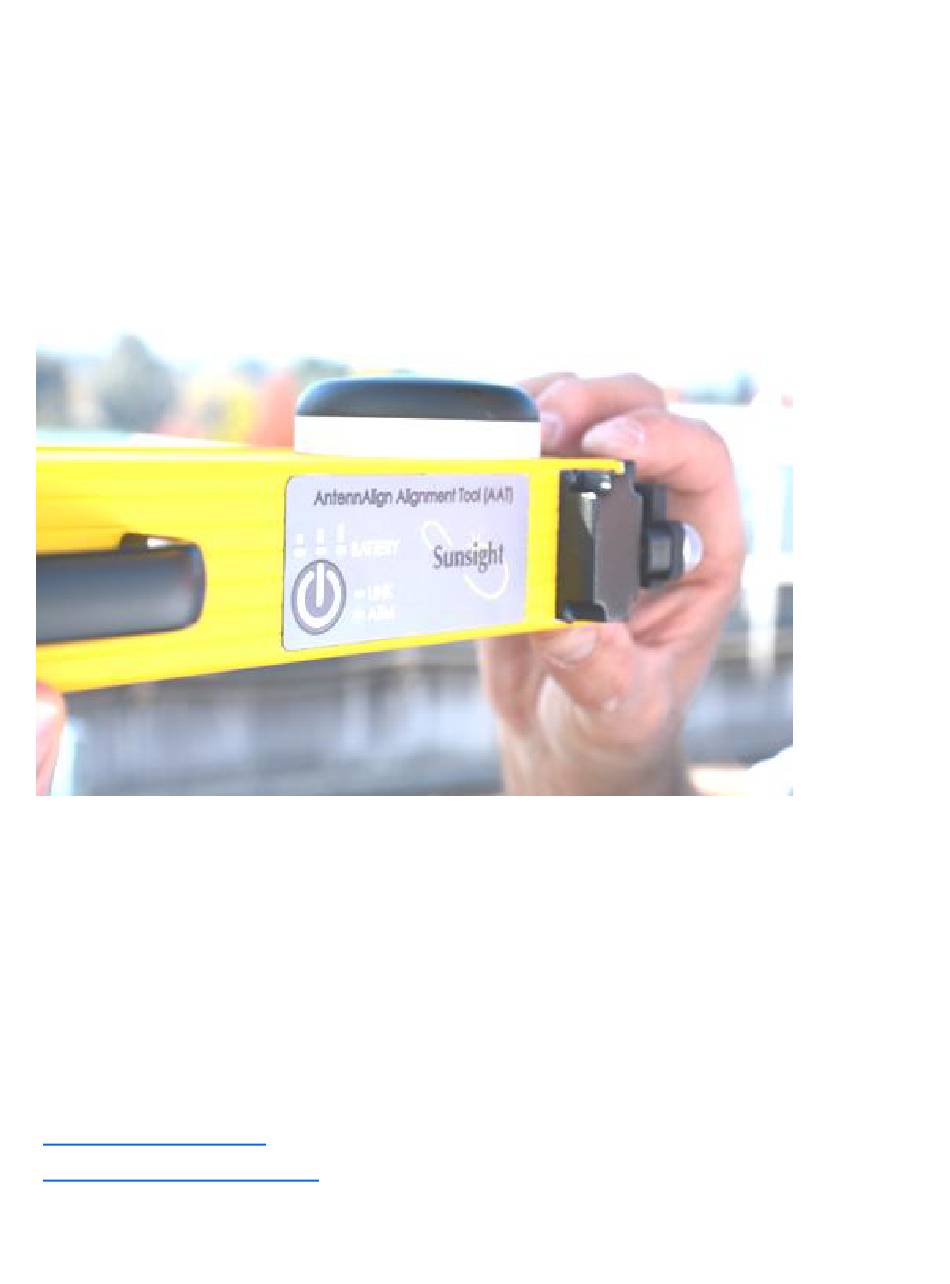

- Page 1 Quick Start Guide Models AAT30 & AAT15 Sunsight RF Panel Antenna Alignment System Issue 7 June 2019 www.sunsight.com support@sunsight.com +1-321-244-9443 x2...
- Page 2 The AATxx RF Panel Alignment System Components (Optional Accessories Not Shown) The AATxx RF Panel Antenna Side Mount...
- Page 3 AAT Front AAT Back AAT Connectors Important — use only Sunsight supplied charger. Other chargers will not charge the battery fully...
- Page 4 Refer to the AAT RF Panel Antenna Alignment System operator’s manual for details. Read and understand all safety precautions as outlined in the manual. Operator’s manual is available for download: https://www.sunsight.com/support/aat-xx-support/ REVIEW THE FREE TRAINING VIDEOS: https://www.sunsight.com/index.php/training Important: Mount the AAT properly Mount the AAT as high as possible to allow the GPS antennas on top of the AAT to have an unrestricted view of the sky.
-
Page 5: Getting Started
Getting Started The AAT is a battery operated tool that measures azimuth, tilt, roll and height. Typical use of the AAT is for aligning RF cellular panel antennas. The AAT kit comes with all the basic items needed to perform most antenna alignment tasks. To begin using the AAT, it is helpful to understand how the AAT functions. - Page 7 Using the AAT 1) Secure the RF panel side mount high as possible Position RF panel side mount as on the antenna to be measured. UNDER mount crossbar Loop mount strap around antenna, then Feed strap end into ratchet buckle, and pull slack from strap. ...
- Page 8 3. Power on and connect to the AAT The AAT can be accessed in two ways, 1) using the Sunsight Android app on a handheld device (smartphone) or 2) directly in a web browser. The Android app includes more AAT features (including the ability to capture photos to include in alignment reports).
- Page 9 NOTE: If the Wi-Fi device is taken out of range of the AAT Wi-Fi broadcast, the device may automatically attempt to connect to another Wi-Fi network or the cell network. This feature may be disabled by the user, if desired. See device owner’s manual for more information.
- Page 10 4. Using “Quick Capture” mode Click or tap Menu, then select Measure Only. Verify the Orientation is correct. Click or tap the Apply button to save any change to Orientation. Orientation is referenced from behind the antenna. The AAT carrying handle represents the front of the AAT.
- Page 11 5. Using “Profile” mode Click or tap the Menu button, then select Profiles/Capture/Report Click or tap the New Profile button. Input Site, Sector and Antenna Position. Input target data provided in the RFDS for the job site. ...
- Page 12 Choosing your site...
-
Page 13: Generate Reports
Aligning to Target Data 7. Generate reports *Note: Reports may be generated and emailed directly from the field prior to departure from the jobsite* Power on and connect to the AAT (see Section 3. for details) Click or tap Menu, then select Profiles/Capture/Report. Locate the site name for the report to be generated. - Page 14 Individual antenna reports can be accessed by clicking the Site Name, scrolling to the correct antenna profile and then selecting the desired report option.
- Page 15 Definitions AAT – The Sunsight Instruments AntennAlign Alignment Tool is a self-contained measuring device that can be used to measure azimuth, tilt, roll, latitude, longitude, and height of the device it is attached to. The primary use of the AAT is to provide and record the necessary measurements to allow a user to align cellular panel antennas.
- Page 16 Live technical support is available Monday—Friday 9:00 AM to 6:00 PM Eastern Time. After-hours calls and emails will receive a response as quickly as possible, often the same day, but no later than the following business day. Sunsight Technical Support www.sunsight.com support@sunsight.com +1-321-244-9443 x2...
