Summary of Contents for Labwit ZWYC-290A

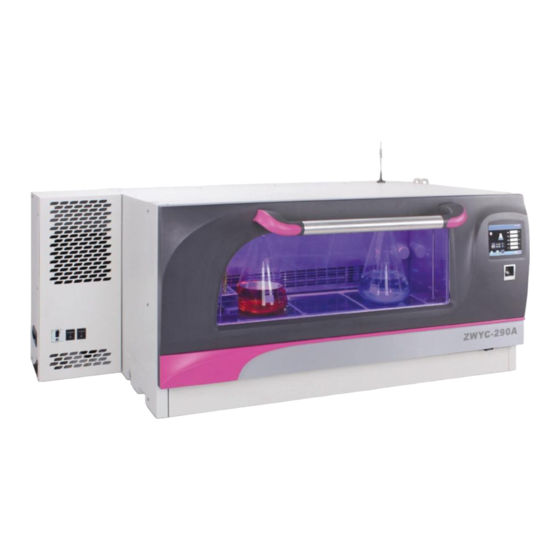

- Page 1 User’s Manual Ultimate-Cell Stackable Shaking Incubator Orbital Model This Manual applies to: Modes: ZWYC-290A ZWYC-290A...
-
Page 2: Table Of Contents
Ultimate-cell Stackable Shaking Incubator V2017.2 TABLE OF CONTENTS 1. INTRODUCTION 2. SAFETY PRECAUTIONS 3. ENVIRONMENTAL REQUIREMENTS 4. TECHNICAL DATA 4.1 Dimensions 4.2 Standard Functions 4.2.1 Main Unit 4.2.2 Door 4.2.3 Inner Working Chamber 4.2.4 Shaking Control 4.2.5 Temperature Control 4.2.6 Control Electronics 4.2.7 Front Door &... - Page 3 Ultimate-cell Stackable Shaking Incubator V2017.2 6.4 Operating Temperature and Speed System 6.4.1 Operating Under Fixed Value Control Mode 6.4.2 Operating Under Programmable Control Mode 6.5 Operating Photosynthetic Lighting System 6.5.1 Operating Under Fixed Value Control Mode 6.5.2 Operating Under Programmable Control Mode 6.6 Operating the Humidity System 6.7 Operating the CO2 System 6.8 Setting Defrosting Cycle...
-
Page 4: Introduction
European, American and East Asian markets. The spaces in the labs are spacious and expensive. The ZWYC-290A can be stacked up to 2-3 units high to offer multiplied incubation capacity on a single unit footprint. Stacking also can be easily managed at a later time. -
Page 5: Safety Precautions
The machine can be only operated by the trained and authorized person. The maintenance can be only conducted by trained person, LABWIT or its authorized agency. The maintenance spare parts shall be provided by the manufacturer and LABWIT, and users are not allowed to replace them without authorization. - Page 6 Ultimate-cell Stackable Shaking Incubator V2017.2 temperature is above 50° C。 Don't open the front door while the equipment is in operation. Make sure that all parts/shaking tray have stopped moving before opening front door. Always keep the work place clean and tidy to avoid possible health hazards.
-
Page 7: Environmental Requirements
There shall be no inflammable, explosive, corrosive, toxic or harmful gas that may cause sharp temperature change in the vicinity of the equipment. LABWIT only commits that the incubator can operate normally in the place where the elevation is less than 2000m. ... -
Page 8: Technical Data
Ultimate-cell Stackable Shaking Incubator V2017.2 4. TECHNICAL DATA Dimensions: Side view of 3 units stacked with low base with doors closed Picture. 1 (in mm) - Page 9 Ultimate-cell Stackable Shaking Incubator V2017.2 Side view of 3 units stacked with low base with doors open Picture. 2 (in mm)
-
Page 10: Standard Functions
Ultimate-cell Stackable Shaking Incubator V2017.2 Standard Functions 4.2.1 Main Unit Picture. 3 Main Trip Switch Control Panel Illumination Light Switch WiseKonect Plus Antenna (Option) UV Light Switch Door Handle Drain Outlet 10 Ventilation Holes Door 11 USB Interface Finger Printer Sensor (Option) 4.2.2 Door The elements on the door include... -
Page 11: Shaking Control
Ultimate-cell Stackable Shaking Incubator V2017.2 Ventilation Grilles (with cross flow fans behind the back wall) PT100 Temperature Sensor (behind the back wall) UV Sterilization Light (behind the back wall) 4.2.4 Shaking Control Quin drive shaking system ensures smooth and reliable orbital shaking movement with a speed range between 30-300rpm. -
Page 12: Specifications
Ultimate-cell Stackable Shaking Incubator V2017.2 4.2.8 Shaking Speed and Shaking Diameter The recommended speed range for different shaking diameters for multi stacking units are as below, DANGER! In case excessive vibration occurs during operation, stop the operation immediately, leveling the unit/s and reduce the shaking speed or shaking diameter. -
Page 13: Preparation And Start-Up
Ultimate-cell Stackable Shaking Incubator V2017.2 5. PREPARATION AND START-UP Unpacking At delivery, examine the exterior for physical damage while the carrier’s representative is present. If exterior damage is present, carefully unpack and inspect the equipment and all accessories for damage. If there is no exterior damage, unpack and inspect the equipment within five days of delivery. -
Page 14: Leveling The Units
Each new equipment was thoroughly cleaned prior to leaving the factory. It is recommended; however, before installation, LABWIT recommends decontaminate all surfaces within the interior chamber, outer door and gasket. They can be wiped down with a disinfectant of 70... -
Page 15: Electrical
For Erlenmeyer Flasks only. Flask dimensions may reduce max. capacity Installation of Sticky Mat (Applies P6023 plain tray) The tray is specially designed for use with Labwit Sticky Mats. The Sticky Mat is used for attaching vessels, such as flasks, bottles, dishes etc onto the shaking platforms for all shaking equipments, for example, shakers, rockers as well as shaking incubators. -
Page 16: Set Of Capillary Thermostat
Ultimate-cell Stackable Shaking Incubator V2017.2 Wait for 12 hours and peel off the top sheet cover. The Sticky Mat is now ready for loading. Maximum loading capacity with P6023 plain tray with Sticky Mats Flask 50ml 100ml 250ml 500ml 1000ml... - Page 17 Ultimate-cell Stackable Shaking Incubator V2017.2 5.10.1 Tools needed: 17*19 spanner, 8*10 spanner, Allen key 6mm, Allen key 5.10.2 Turn off the unit, open the glass door, pull out and remove the shaking tray, 5.10.3 Use 6mm Allen key to remove the four Allen screws from the base tray. 5.10.4 Lift the base tray and support it with a long object, until seeing the center of the shaking mechanism (as illustrated)
- Page 18 Ultimate-cell Stackable Shaking Incubator V2017.2 5.10.6 Loosen the (C) safety nut with 17*19 spanner 5.10.7 Use the 8*10 spanner to rotate the (B) adjusting bolt clockwise to decrease the shaking diameter, but anti-clockwise to increase. 5.10.8 When adjustment is done, tighten the (B) adjusting bolt and (A) central Allen screw.
-
Page 19: Extra For Refrigerated Units
Ultimate-cell Stackable Shaking Incubator V2017.2 5.11 Extra For Refrigerated Units ATTENTION: The nominal cooling capacity can only be reached if the ambient tempera- ture at the cooling aggregate is below 30 ° C. After transport or moving –DO NOT USE this unit for at least 24 Hours, unless you are a 100% sure that the unit has been moved in an upright position only. -
Page 20: Operating The Unit
Ultimate-cell Stackable Shaking Incubator V2017.2 6. OPERATING THE UNIT Once the equipment is properly installed with all utilities connected, turn on the power switch on the left of the equipment. When power is applied, the incubator will first display the "welcome page" and then LCD will display the "home page"... -
Page 21: Home
Ultimate-cell Stackable Shaking Incubator V2017.2 Home Page Summary “Stop” button: Press this to stop the operation. When the incubator is in operation, press this button to pause. Press it again, to stop the current operation. “Run” button: Press this button to start the operation. When the unit is paused, this will twinkle;... - Page 22 Ultimate-cell Stackable Shaking Incubator V2017.2 “Shaking Flask” Status: The illustration of “flask” indicates the status of the unit; the flask remains still when unit is stopped; or keeps swinging when it’s shaking. Photosynthetic Lighting Switch Press it to enable or disable the photosynthetic LED lighting function. Red Light Indicator The indicator lit when the red light is on, with display of current lighting output value in percentage.
-
Page 23: Set Menu
Ultimate-cell Stackable Shaking Incubator V2017.2 Set Menu Page Summary The Set Menu page is the key gateway for accessing the collection of functions for the incubator operations. The Set Menu page are accessible by pressing the “Set” icon in the home page. Related Key Name Functions... -
Page 24: Func
Ultimate-cell Stackable Shaking Incubator V2017.2 Related Key Name Functions Chapter Settings of deviations for all operating parameters for alarm ALARM conditions CALIB Calibrating Temperature, Speed, Humidity and CO CLOCK Settings of the real clock time Switch of door lock system, password setting, communication 6.10 LOCK/COM address setting. -
Page 25: Switch Of Control Mode - Temperature & Speed
Ultimate-cell Stackable Shaking Incubator V2017.2 6.3.1 Switch of Control Mode - Temperature & Speed The incubator can be set to run with fixed functional parameters settings, or with program up to 9 different segments, each with their own Ramp Time, Ramp End Temperature, Hold Time and Speed. -
Page 26: Option Switch Of Photosynthetic Lighting Control Function
Ultimate-cell Stackable Shaking Incubator V2017.2 6.3.5 Option Switch of Photosynthetic Lighting Control Function This function will enable or disable the photosynthetic lighting control system. To switch this function, follow the below steps, Press "Stop" button in the home page to stop the current operation. ... - Page 27 Ultimate-cell Stackable Shaking Incubator V2017.2 Press "Stop" button in the home page to stop the current operation. Switch the "TEMP MODE" in the "SET" page to "FIXED" mode. Press "SET" in the home page. Press "Fixed" in the "SET" page to start setting the general parameters (Ex- cluding Photosynthetic Lighting) SPEED—Speed Set button Press it and use the keyboard to enter the speed set value, and press “OK”...
-
Page 28: Operating Under Programmable Control Mode
Ultimate-cell Stackable Shaking Incubator V2017.2 switched off. However, if the "KEEP" in the "FUNC" page is switched on, these functions will remain under control at their setpoints even when the operation is stopped. Special Remind! If the entered value exceeds the maximum limit, then the max value will be set at its maximum value. - Page 29 Ultimate-cell Stackable Shaking Incubator V2017.2 To set the general parameters under "Programmable" control mode, follow the below steps, Press "Stop" button in the home page to stop the current operation. Switch the "TEMP MODE" in the "SET" page to "PROG" mode. Press "SET" in the home page ...
- Page 30 Ultimate-cell Stackable Shaking Incubator V2017.2 By Setting as "Cycle (Step)", the program will keep running according to the "Cycle times" setting (See below) Once the termination point is set, keep pressing “NEXT”, until the following page appears. HOLD DEV—Hold Deviation This function indicates the temperature deviation that the incubator may have at the end of each”...
-
Page 31: Operating Photosynthetic Lighting System
Ultimate-cell Stackable Shaking Incubator V2017.2 Once the program settings are saved, the unit is ready for "Programmable" control mode. Start the operation: Press the "RUN" button in the home page to start the pro- grammable operation , the "Control Mode" status shows the "Pxx/Lxx", the "Shaking Flask"... -
Page 32: Operating Under Programmable Control Mode
Ultimate-cell Stackable Shaking Incubator V2017.2 To set the lighting outputs of under "Fixed Value" control mode, Press "SET" in the home page Press "LIGHTS" in the "SET" page to start setting the photosynthetic lighting system Press the switch to switch the control mode to "FIXED" LIGHT-RED —... - Page 33 Ultimate-cell Stackable Shaking Incubator V2017.2 To set the lighting outputs of under "Programmable" control mode, Press "SET" in the home page Press "LIGHTS" in the "SET" page to start setting the photosynthetic lighting system Switch the control mode to "PROG" SEG—Segment No.
-
Page 34: Operating The Humidity System
Ultimate-cell Stackable Shaking Incubator V2017.2 This function indicates the ideal red light output for the system to reach for the segment. Use the keyboard to enter the ramp end red light output from 0-100%. Blue—Ramp End Blue Light Output button This function indicates the ideal red light output for the system to reach for the segment. -
Page 35: Operating The Co2 System
Ultimate-cell Stackable Shaking Incubator V2017.2 a maximum of 80%RH can be achieved. The setpoint of humidity must be reduced to avoid further formation of condensation. The occurrence of condensation is indicating that the maximum humidity is reached, the relative humidity setpoint must be reduced. The water tank is supplied with the equipment. - Page 36 Ultimate-cell Stackable Shaking Incubator V2017.2 To set the automatic defrosting cycle, Press "SET" in the home page Press "DEFROST" in the "SET" page to start setting the auto defrosting cycle parameters, DEF.TIMER—Defrosting Frequency This function indicates the time interval between two defrosting cycles. Use the keyboard to enter the set value between “1-240”...
-
Page 37: Setting Clock Time
Ultimate-cell Stackable Shaking Incubator V2017.2 for specified ambient condition. Attention: It is considered as normal, that the actual temperature slightly devi- ates during defrosting, and will be stabilized shortly after defrosting cycle finishes. Setting Clock Time There is real clock time display in the right below corner of the homepage. To set the clock time, ... -
Page 38: Setting Door Password And Communications
Ultimate-cell Stackable Shaking Incubator V2017.2 6.10 Setting Door Password and Communications 6.10.1 Door Locking Password Setting The incubator is equipped with digital door locking system, protecting the samples from unauthorized access. It is password encrypted and can be ena- bled/disabled as per user's discretions. To set this function, including changing the password, ... -
Page 39: Rs485 Communication Address Setting Option
Ultimate-cell Stackable Shaking Incubator V2017.2 LOCK FUNC —Door Lock Switch Once the page setting is activated, press this button to switch on/off the door locking system. NEW PW —New password Setting Once the page setting is activated, press this button to enter the new door locking password. -
Page 40: Using Sticky Mat
Ultimate-cell Stackable Shaking Incubator V2017.2 6.13 Using Sticky Mat The Sticky Mat is used for attaching vessels, such as flaks, bottles, dishes etc onto the shaking platforms for all shaking equipments, for example, shakers, rockers as well as shaking incubators. It is as standard 20 x 20 cm in size and can be used to cover the shaking platforms replacing the traditional flask clamps. -
Page 41: Safety
Ultimate-cell Stackable Shaking Incubator V2017.2 6.13.4 Safety To ensure the safety of use of Sticky Mat, only use flasks and vessels of high quality, for example, Schott Duran® Borosilicate glass, Corning® Polycarbonate vessels. The use of all other materials or quality levels is in the responsibility of the user. It is recommended that test the Sticky Mat with each type of vessels to be used, under the same condition (Speed, temperature, etc ) for a short time period. -
Page 42: Calibrating The Unit
Ultimate-cell Stackable Shaking Incubator V2017.2 7. CALIBRATING THE UNIT After the incubator has stabilized at the user selected setpoints, the control systems can be calibrated. When in calibration, the temperature display, humidity display, CO2 display, and can all be adjusted to match a reference standard. Before any system is calibrated it is critical that the incubator has been allowed to stabilize properly. -
Page 43: Calib Humi-Calibrating The Relative Humidity Display
Ultimate-cell Stackable Shaking Incubator V2017.2 Press "CALIB" in the "SET" page to enter the page of calibrations. In the “CALIB” page, press “Password” icon, enter “7724”, and press “OK” to confirm. Press the “CALIB TEMP” button, which is showing the current displayed tem- perature value. -
Page 44: Restoring Factory Default Settings
Ultimate-cell Stackable Shaking Incubator V2017.2 Restoring Factory Default Settings To restore the factory default setting, Press "SET" in the home page Press "CALIB" in the "SET" page to enter the page of calibrations. In the “CALIB” page, press “Password” icon, enter “9408”, and press “OK” to confirm. -
Page 45: Alarms
Ultimate-cell Stackable Shaking Incubator V2017.2 8. ALARMS A sophisticated alarm system monitors all system parameters for any fault condition. At the same time, built in alarm delays protect the user from nuisance alarms created by routine use such as door openings. A list of alarm descriptions, the conditions they look for, and how they are delayed and displayed are in the table below: Alarm Description Condition Detected... -
Page 46: Maintaining The Unit
Ultimate-cell Stackable Shaking Incubator V2017.2 9. MAINTAINING THE UNIT Your LABWIT incubator is nicely designed to minimize performance problems. However, regular maintenance is very important for continuous trouble free operation. Other than regular cleaning, a full set of maintenance checks should be conducted on a regular basis, Wear personal safety kits, e.g. -
Page 47: Cleaning Cooling Condensers
Ultimate-cell Stackable Shaking Incubator V2017.2 Cleaning Cooling Condensers The surface of the condenser fins of the cooling system must be kept clean and free of dust to ensure optimum heat dissipation To clean the fins and copper tubing of the condenser, use vacum cleaner or feather duster for gentle cleaning. -
Page 48: Electronic Control System
Ultimate-cell Stackable Shaking Incubator V2017.2 10. ELECTRONIC CONTROL SYSTEM... -
Page 49: Trouble Shootings
Ultimate-cell Stackable Shaking Incubator V2017.2 11. TROUBLE SHOOTING. Error Indicator Possible cause Corrections Check the power supply system to Power supply is not connected see if there is voltage on the line Plug has no access to socket Plug in firmly The power switch has not been Turn on the power switch on the side Power on, No display... - Page 50 Ultimate-cell Stackable Shaking Incubator V2017.2 The platform keeps The door switch has short Notify the distributor to replace the shaking after the door circuited door switch is opened door closed ,the platform Refer to Users Guide and press the starts shaking but the Improper operating method Start/Stop button to operate again speed...
-
Page 51: After-Sale Service
Any part found defective will be either repaired or replaced at LABWIT's discretion, free of charge, by LABWIT in Shanghai, China, or by its authorized dealers in where LABWIT has its distributors. Parts that are replaced will become the property of LABWIT. - Page 52 Ultimate-cell Stackable Shaking Incubator V2017.2...
- Page 53 Ultimate-cell Stackable Shaking Incubator V2017.2 After-sal e service Labwit Scientific Pty Ltd Website: www.labwit.com.au E-mail: info@labwit.com.au...
