Aqua Ultraviolet

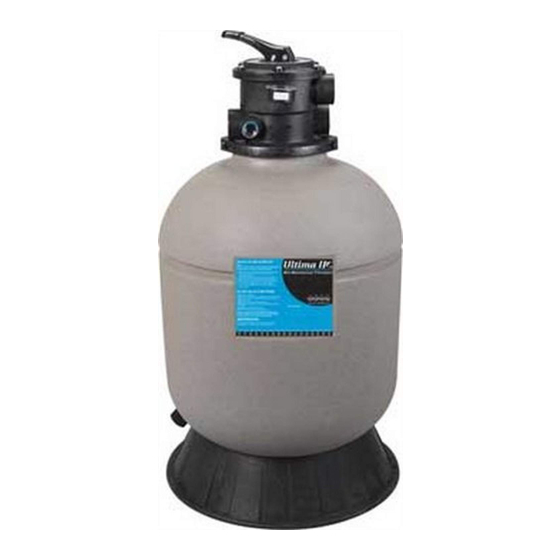

Ultima II Filter Instruction Manual
Visit our website at aquauv.com to see the Ultima II operation video
Follow us on Facebook
Find us on Facebook
www.facebook.com/aquauv
www.facebook.com/AquaUltraviolet
Register your Ultima II Filter by using the attached warranty card
(For Units Up To 30,000 Gallons)
SEE INSIDE FOR COMPLETE LINE OF FILTERS
Follow us on Twitter
Follow us on Twitter
www.twitter.com/aquaultraviolet
www.twitter.com/aquaultraviolet
go online to aquauv.com
42371 Avenida Alvarado
Temecula, CA 92590
TOLL FREE (800) 454-2725
TEL (951) 296-3480
FAX (951) 296-3490
www.aquauv.com
or
See us on YouTube
Follow us on You Tube
www.facebook.com/aquaultraviolet
www.youtube.com/AquaUltraviolet
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aqua Ultraviolet Ultima II Series
Summary of Contents for Aqua Ultraviolet Ultima II Series
- Page 1 TOLL FREE (800) 454-2725 TEL (951) 296-3480 FAX (951) 296-3490 www.aquauv.com Aqua Ultraviolet Ultima II Filter Instruction Manual (For Units Up To 30,000 Gallons) SEE INSIDE FOR COMPLETE LINE OF FILTERS Visit our website at aquauv.com to see the Ultima II operation video...
- Page 2 AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490...
-
Page 3: Table Of Contents
Frequently Asked Questions ...…………………………………………………………………………… Aqua Ultraviolet Product Line ......……………………………………………………………. Parts List .....……………………………………………………………………………………. Trouble Shooting ...………………………………………………………………………………………… Important Info / Warranty ..…………………………………………………………………………… Warranty Continued ..…………………………………………………………………………………… THIS SECTION CAN BE USED FOR NOTES: AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490... - Page 4 30 1/2" Dia. x 48" Tall Ultima II 4,000 20 1/2" Dia. x 38" Tall Ultima II 6,000 Ultima II 30,000 22 1/2" Dia. x 42-3/4" Tall 32 1/2" Dia. x 53" Tall AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490...
-
Page 5: Introduction
INTRODUCTION We at Aqua Ultraviolet would like to take the time to thank you for purchasing the finest filtration system on the market. For over twenty years, Aqua Ultraviolet has manufactured filtration systems which are in use in many different fields and industries such as aquariums, aquaculture, public and commercial aquariums, educational institutions, government agencies, commercial and research organizations throughout the world. -
Page 6: Sizing Chart
On these Ultima ll filter 2" Models the pump must be rated at 7,500 gallons per hour at ten feet of head pressure. If you have any questions please call technical support toll free 1-800-454-2725 or 1-951-296-3480 email support@aquauv.com AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490... -
Page 7: Recommended Pond And Aquarium Layout
Pickup on the bottom of one side of the tank and return to top of the opposite side of the tank. Pick Up Waste Aqua UV Sterilizer Ultima II Filter AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490... -
Page 8: Ultima Ll Installation Instructions
CAUTION: Do not lubricate any part of the Rim, Seals, or O-Ring A. Loosely pre-assemble the clamp with one screw and one nut, turning the nut 2 or 3 turns. (See 2A) AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490... - Page 9 PUMP. (See 3B) C. Glue return line to pond to slip fitted side of union leading to valve port marked RETURN. (See 3C) AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490...
- Page 10 Do not install filter on a pond with heavy algae content (i.e. pea soup). We recommend a water change if the pond is really dirty. Once that is complete let filter establish for 4 to 6 weeks before backwashing. AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490...
-
Page 11: Valve Settings
For by-passing filter, but circulating water in pond - use when medicating fish Closed Shuts off flow from pump - Never use this setting with the pump running Winter Leave on this setting throughout winter if not in use. AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490... -
Page 12: Maintenance
Backwash then rinse. Repeat until water runs clear. PLEASE REALIZE… Pure clean pond water is a combination of many factors, one is the proper Aqua Ultraviolet UV system, and another is ade- quate filtration and proper water flow. - Page 13 (Backwash and Rinse at least 3 times) 10. Turn pump off. 11. Depress valve handle and turn back to filter this is the normal operating position. 12. Turn pump on. Filter cleaning is complete. AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490...
- Page 14 4. Turn pump off. 5. Switch handle to filter setting. Filter Setting 6. Turn pump on. Check if leak has stopped. (If leak continues go to step 7) Check Area AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490...
-
Page 15: Maintenance
10. Reattach key handle assembly. 11. Turn pump on. Check if leak has stopped. (If leak continues call customer In Filter Mode service 1-800-454-2725 for further assistance) Wasteline AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490... -
Page 16: Correct Installation
CORRECT INSTALLATION Filter is installed less than 3 feet away from the pump and no more than 6 feet above pond level. Pump line is plumbed into the top union on the valve. The return line to the pond is plumbed into the lower union on the valve. The waste line is plumbed into the union on the opposite side. -
Page 17: Frequently Asked Questions
Do I need to run my filter 24 hours a day? Yes, the filter converts ammonia from fish waste into harmless compounds creating a safe environment for your fish. AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490... -
Page 18: Aqua Ultraviolet Product Line
AQUA ULTRAVIOLET PRODUCT LINE For Easy Care Pond Maintenance Use Aqua Ultraviolet Sterilizers and Ultima ll Filters CLEAR QUARTZ CAP Glow T ells You Your Lamp Is On EZ TWIST CAP Quick And Easy Quartz Sleeve Maintenance QUICK RELEASE TEE... -
Page 19: Parts List
PARTS LIST... -
Page 20: Troubleshooting
• Open filter and check for holes in waste port • Media may be lodged in standpipe laterals and basket • Please call Tech Support for further assistance 1-800-454-2725 AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490... -
Page 21: Important Info / Warranty
The warranty and remedies set forth herein are conditional upon proper storage, installa- tion, use, maintenance and conformance with the applicable use. It will be based upon Aqua Ultraviolet’s discretion as to whether the defects are of manufacturing origin. Any damages due to shipping and handling, packing, or installation are not covered by this warranty. -
Page 22: Warranty Continued
All warranty returns or repair returns must come freight prepaid with an RMA number outside clearly marked on the box. All other returns will be refused. Aqua Ultraviolet will not be liable for any shipping cost to return warranty or repair items. - Page 23 AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490...
