weintek cMT-iV6 series Installation Instruction

cMT-iV6 series

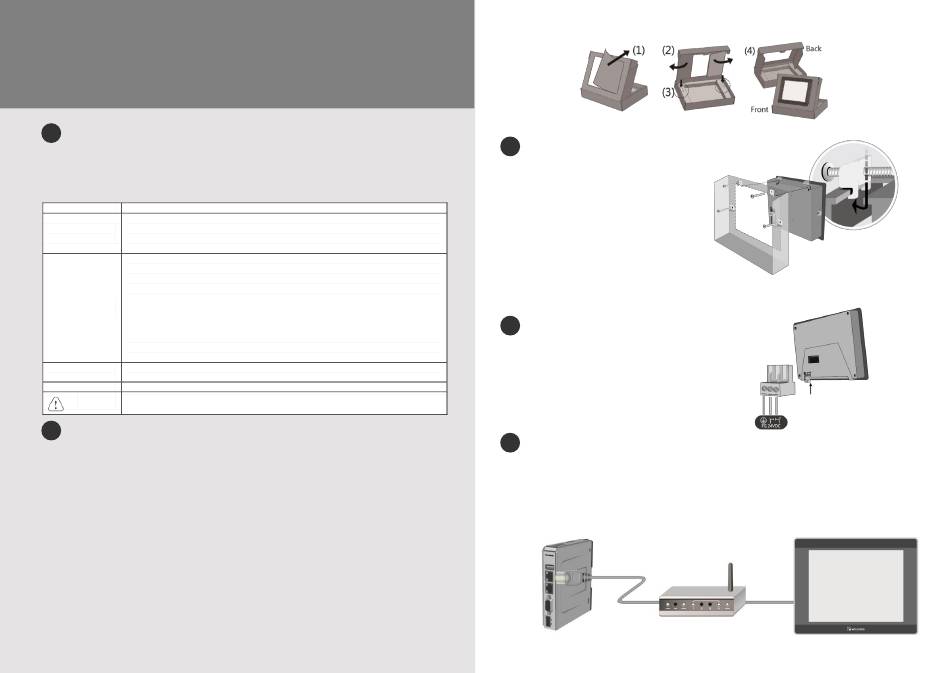

1 Installation and Startup Guide
This document covers the installation of cMT-iV6 Series HMI, for the detailed specifications and
operation, please refer to Datasheet, Brochure and EasyBuilder Pro User Manual. Please read all
warnings, precautions, and instructions on the device carefully before use.
Install Environment:
NEMA Rating The HMI product is NEMA 4 rated (Indoor Only).
The HMI product has been tested to conform to European CE requirements. This
Electrical means that the circuitry is designed to resist the effects of electrical noise. This
Environment does not guarantee noise immunity in severe cases. Proper wire routing and
grounding will insure proper operation.
(1) Make sure that the displays are installed correctly and that the operating
limits are followed. Avoid installing units in environments where severe
mechanical vibration or shocks are present.
(2) Do not operate the unit in areas subject to explosion hazards due to
flammable gases, vapors or dusts.
Environmental
(3) Do not install the unit where acid gas, such as SO2 exists.
Considerations
(4) This device should be mounted in the vertical position and for use on the flat
surface enclosure.
(5) Conform to UL 61010-2-201 safety requirement for use in Pollution Degree
2 Environment.
(6) Relative Humidity: 10% ~ 90% (non-condensing)
Cleaning Clean the device using dry cloths. Do not use liquid or spray detergents for
Considerations cleaning.
IP rating IP 65
Protection impairment if used in a manner not specified by the manufacturer.
Warning
Déficit de protection si utilisé d'une manière non spécifiée par le fabricant.
Unpacking the Unit
2
Unpack and check the delivery. If damage is found, please contact the supplier.
NOTE: Place the operator panel on a stable surface during installation. Dropping it or letting it
fall may cause damage.
The package includes:
(1) Installation Instruction, 2-sided A4 *1 (2) Human Machine Interface *1 (3) Power Connector *1
(4) Brackets & Screws *1 pack (5) Fuse 1.25A/250V 5*20mm *1
The packing box can be transformed into an HMI stand. Please follow the steps to make the stand.
1. Remove the center of the box cover along the perforated line.
2. Pull the two inner flaps.
3. Press down along the perforated line inside the box.
4. Complete the stand as shown.
Installation Instruction
3
Installation Instructions
Use a control box that provides enough stiffness.
Cutout Dimension: 250 mm x 192 mm. Secure the
operator panel in position, using all the fastening
holes and the provided brackets and screws.
Screw Torque: 2.6 ~ 3.9 lbf.in. (For reaching
waterproof effect and preventing the panel from
being deformed.)
Plan for adequate space around the unit and inside
the enclosure, for ventilation and cables. Consider
the heat from other devices inside the enclosure.
The ambient temperature around the unit must be
0 ~ 50°C
Minimum required clearances (along the overlay): Top / Bottom / Sides 15 mm
Maximum panel thickness: 4.5 mm
4 Power Connections
Power Connector Specifications:
Wire AWG: 28~12
Operating Temperature: -40°C ~105°C
Screw Torque: 3.47 lbf-in (max.)
NOTE:
1. Connect positive DC line to the '+' terminal and
the DC ground to the '-' terminal.
System Settings
5
Connect cMT-SVR, router, and cMT-iV6 via RJ-45 Ethernet cable. Launch cMT Viewer on cMT-iV6,
find the cMT-SVR and use the default password "111111" to log in and configure.
cMT-SVR Ethernet Ports:
Ethernet 1: DHCP
Ethernet 2: 192.168.100.1
