QUICK START GUIDE FOR STARTING UP
TCG with machines.cloud

Advertisement

loading
Need help?

Need help?

Do you have a question about the TCGi and is the answer not in the manual?

Questions and answers

Related Manuals for STW TCGi

Summary of Contents for STW TCGi

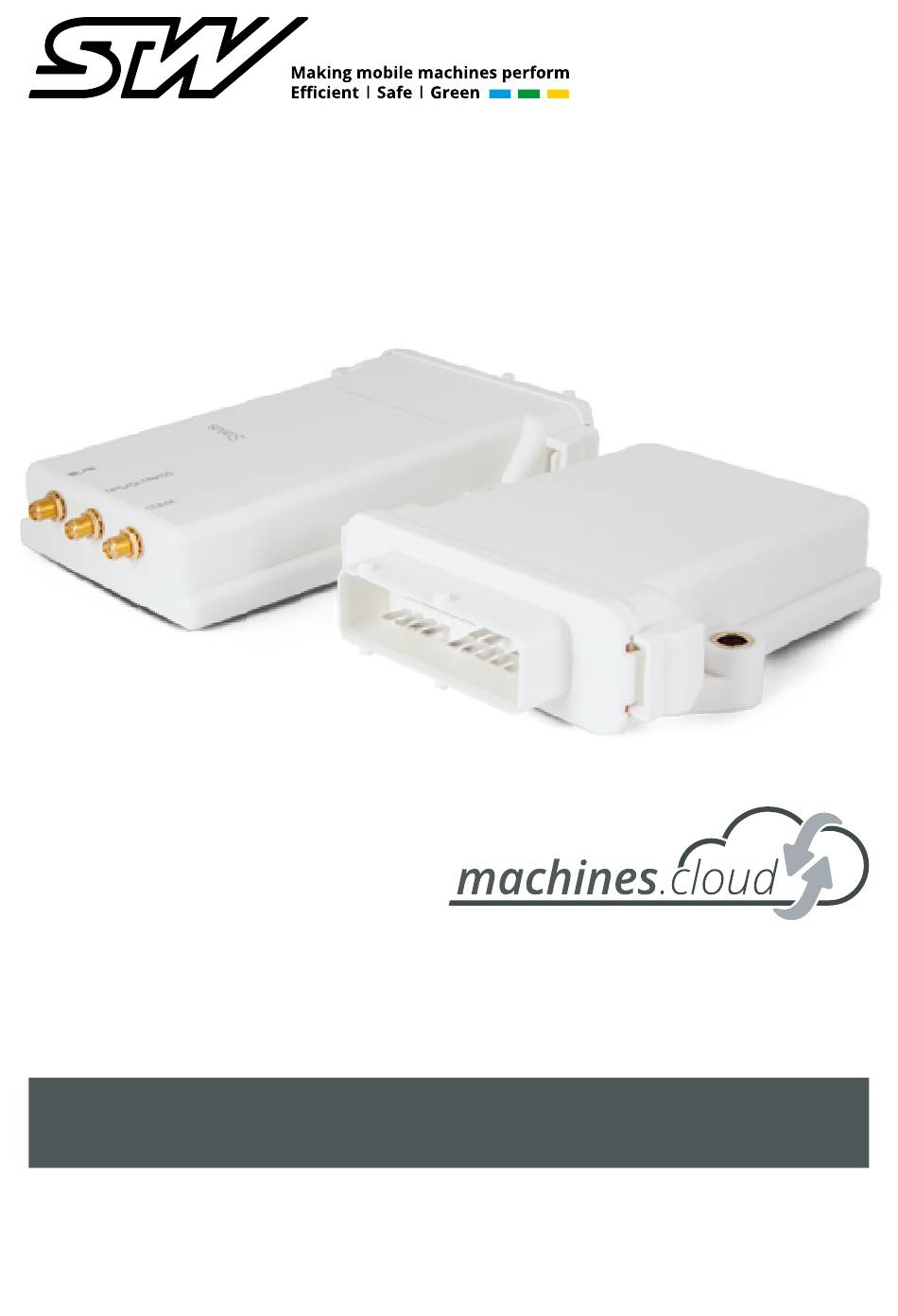

  • Page 1 QUICK START GUIDE FOR STARTING UP TCG with machines.cloud...

  • Page 2: Check The Scope Of Delivery

    Check the scope of delivery* Cable harness TCGi Breakout cables adapter Power supply Optional: TCGe 2G/3G/4G Wi-Fi/Bluetooth GPS/GLONASS Connect the antennas to the SMA plugs. Configuring the SIM card 1. Press the yellow button beside the card tray 2. Remove the SIM card holder...
  • Page 3 Starting up TCG 1. Supply the TCG with power: a. Set the power supply to 12 V b. Connect the TCG to the breakout cables c. Connect the breakout cables to the cable harness adapter d. Connect the power supply unit to the cable harness adapter e.
  • Page 4 Status detection by LED light Ready for use  no Internet The TCG lights up yellow Yellow access; GPS not active after switching on or no GPS reception No Internet access; Blue GPS active After booting the TCG, it Internet access available; may take a few minutes Pink GPS not active or no...
  • Page 5 Configuring machines.insight 1. Select "System" in the left menu bar 2. Switch to Wi-Fi within "Network Configuration“ 3. Select the "Access Point" window on the right 4. Change the password for Wi-Fi access 5. Click on "Save" 6. Switch to " machines . cloud" within the "...
  • Page 6 Configuring a M2M SIM card (only necessary for M2M SIM cards) 1. Login as "admin" in machines.insight 2. Navigate to "System"  "Network Configuration"  "GSM" 3. Select the "Custom Configuration" field on the right 4. Enter M2M parameters (source: SIM card provider) 5.
  • Page 7 Registration in machines.cloud and first steps 1. Open the e-mail from no-reply@machines.cloud with the link to the cloud 2. Click on the link and change your password on the web page 3. Log in with the new access data  User name: tenantname_admin 4.

  • Page 8: Further Information

    English: All Manuals and Tutorials here: stw-digitalization.com Password: connectivity T.O.N.I. Tours:  Available in machines.cloud and machines.access  Top right click on „<<“ Sensor-Technik Wiedemann GmbH (STW) Am Bärenwald 6 87600 Kaufbeuren Telephone: +49 8341 9505-0 Telefax: +49 8341 9505-55 info@sensor-technik.de...
