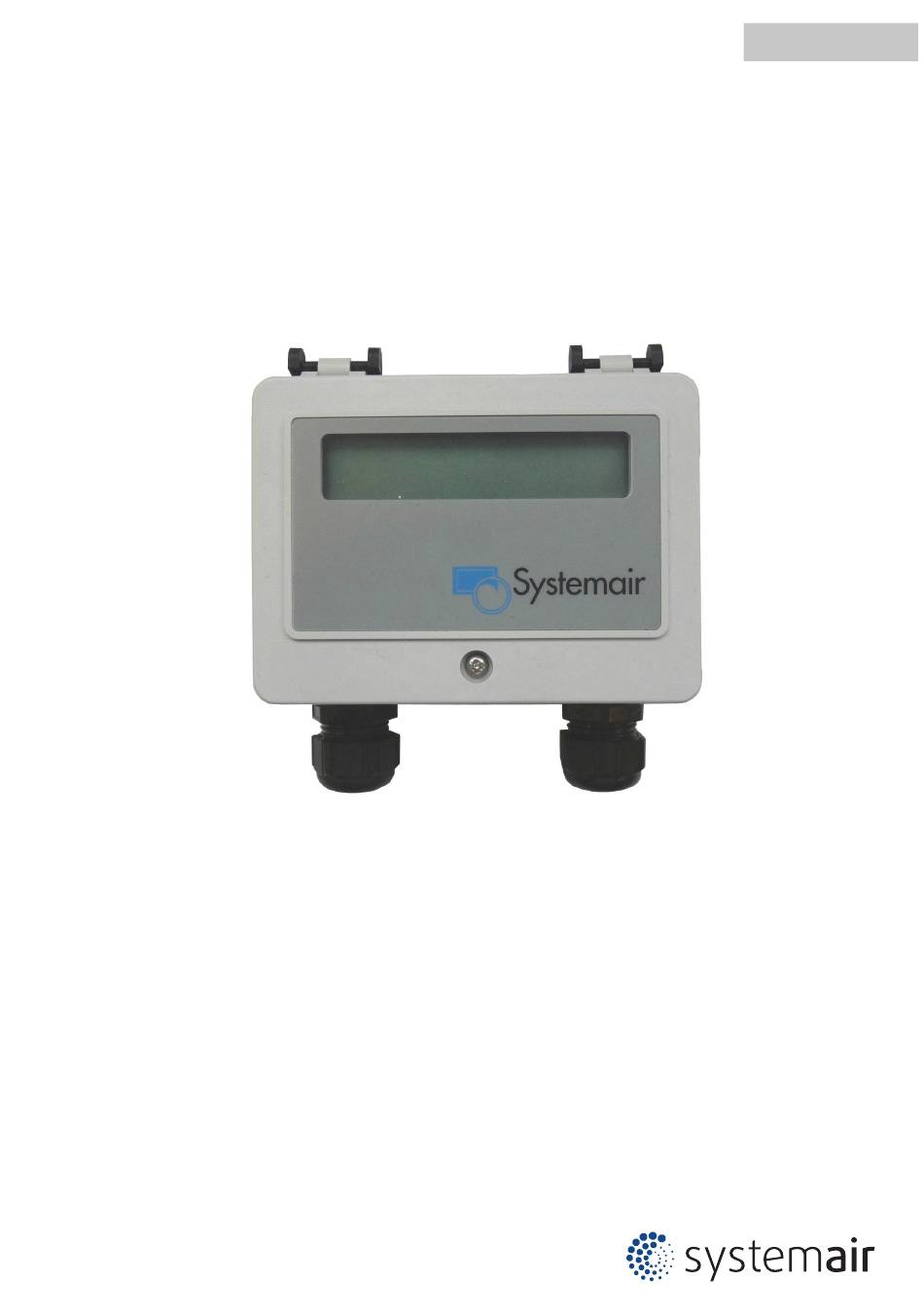

- Page 1 TCA 150D part. no. 32186 Control module for temperature Operating Instructions Software version: D2033A from Version 1.00 L-BAL-E119-GB 1318 Index 002 Part.-No. 00163357-GB...
-
Page 2: Table Of Contents
Operating Instructions TCA 150D Content General notes .......... - Page 3 Operating Instructions TCA 150D Enclosure ..........
-
Page 4: General Notes
Operating Instructions TCA 150D General notes 1 General notes 1.1 Structure of the operating instructions Before installation and start-up, read this manual carefully to ensure correct use! We emphasize that these operating instructions apply to specific units only, and are in no way valid for the complete system! Use these operating instructions to work safely with and on the device. -
Page 5: Product Overview
Operating Instructions TCA 150D Product overview • The equipment is to be used solely for the purposes specified and confirmed in the order. Other uses which do not coincide with, or which exceed those specified will be deemed unauthorised unless contractually agreed. Damages resulting from such unauthorised uses will not be the liability of the manufacturer. -
Page 6: Mounting
Operating Instructions TCA 150D Mounting 4 Mounting 4.1 General notes Attention! The following points must be complied with during the mechanical installation to avoid causing a defect in the device due to assembly errors or environmental influences: • Before installation remove the device from the packing and check for any possible shipping damage! •... -
Page 7: Electrical Installation
Operating Instructions TCA 150D Electrical installation 5 Electrical installation 5.1 Safety precautions Danger due to electric current • Work on electric components may only be carried out by trained electricians or by persons instructed in electricity under the supervision of an electrician in accord- ance with electrical engineering regulations. -
Page 8: Output Voltage 0
Operating Instructions TCA 150D Device construction 5.5 Output voltage 0 - 10 V Connection to Terminals “A” - “GND” (I Technical data). It is not permissible to connect outputs of several devices to each other! 5.6 Input for switch over Setpoint 1 / Setpoint 2 Via voltage at terminals “1”... -
Page 9: Programming
Operating Instructions TCA 150D Programming 7 Programming 7.1 Select operation mode Information Simple installation is possible through the selection of the preprogrammed mode of operation. This determines the basic function of the device, factory set 2.01 Mode Function Temperature sensor: output 0...10 V proportional to measuring range 2.00... -
Page 10: Menues Of Operating Modes
Operating Instructions TCA 150D Programming You can go to the menu items in the menu groups (e.g. mode) by using the P key. Use the arrow keys to move up and down within the menu group. To make adjustments, press the P key after selecting the menu item. If the previously set value starts to flash, it can be adjusted with the ▼... - Page 11 Operating Instructions TCA 150D Programming Parameter Factory setting User Set- Function ting BASE SETUP Mode 2.00 2.01 Mode selection Setting type of sensor: KTY81-210 or Sensortype KTY81-210 KTY81-210 PT1000 Setting measuring range, minimum temper- ature value Range min. Tem- -50 °C Setting range: -50...150 °C...
-
Page 12: Characteristic Curve Temperature Sensor
Operating Instructions TCA 150D Programming 7.4 Characteristic curve temperature sensor 2.00 Uout Range min. value -50 °C Range max. value 150 °C Range min. value 0 °C Range max. value 100 °C Actual Value [°C] 05.05.2010 v_kennnl_ctg_temp_sens.vsd 7.5 Temperature controller 2.01... -
Page 13: Start-Up
Operating Instructions TCA 150D Start-up Minimum speed cut off Uout Min. Uout = 3.5 V Max. Uout = 10.0 V Msco. = OFF Msco. = -2.0 K Actual Value [°C] 20 °C 27 °C Pband 06.05.2010 Setpoint v_min_luft_abschalt_ctg.vsd 8 Start-up 8.1 Procedure... -
Page 14: Enclosure
Operating Instructions TCA 150D Enclosure 9 Enclosure 9.1 Technical data Type TCA 150 D Part-No. 32168 (320048-42) -50...150 °C (external sensor KTY81-210 or Measuring range PT1000) Voltage supply U 10 V...24 V DC Protected against reverse polarity 10 V DC 13...24 V DC... -
Page 15: Connection Diagram
Operating Instructions TCA 150D Enclosure 9.2 Connection diagram TCA 150D = 4 kΩ GND A GND TF.. KTY 81-210 Eingang PT 1000 Input 10...24 V DC = 6 mA) Ausgang Output 10...24 V DC 0...10 V = 0.3 mA) 0 = Setpoint 1... -
Page 16: Dimensions [Mm]
Operating Instructions TCA 150D Enclosure 9.3 Dimensions [mm] GM00009A 12.05.2010 L-BAL-E119-GB 1318 Index 002 Part.-No. 00163357-GB 16/17... -
Page 17: Manufacturer Reference
Operating Instructions TCA 150D Enclosure 9.4 Manufacturer reference Our products are manufactured in accordance with the relevant international regulations. If you have any questions concerning the use of our products or plan special uses, please contact: Systemair Industrievägen 3 73930 Skinnskatteberg...
