Summary of Contents for Gin CAN-Rx-Repeater

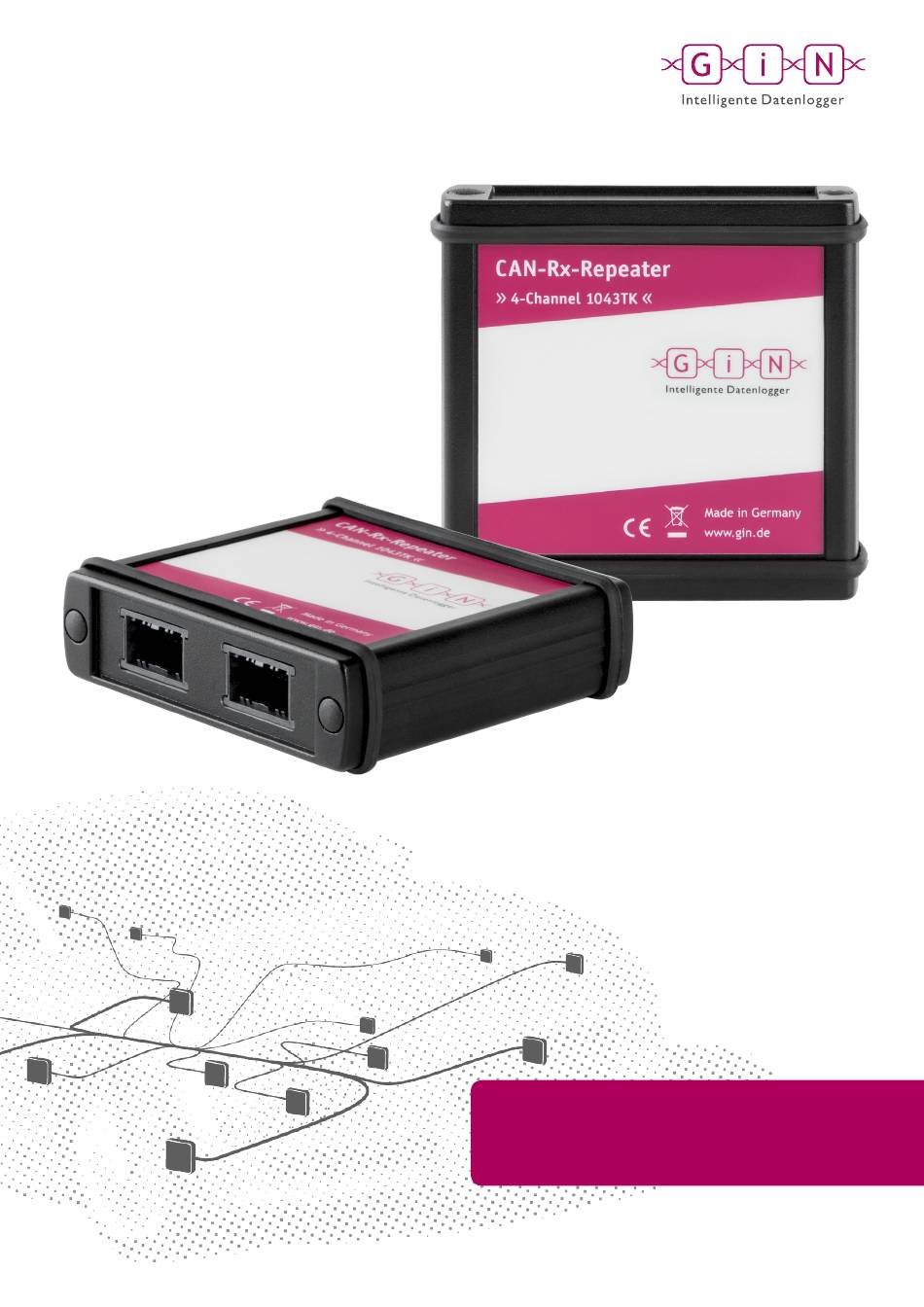

- Page 1 English CAN-Rx-Repeater User Manual...
-
Page 3: Legal Notice
Intelligente Datenlogger CAN-Rx-Repeater Manual Version 05-2018 Legal Notice We reserve the right for substantive changes in this documentation without notice. Although this documentation has been prepared to the best of our knowledge and with the greatest care, errors cannot be totally ruled out. -
Page 4: Table Of Contents
Intelligente Datenlogger CAN-Rx-Repeater Manual Table of Contents Properties ........................5 Scope of Delivery ..................... 6 General ........................7 Ports .......................... 8 X1-Input (Power Supply, CAN FD Input Channels) ............8 X2-Output (CAN FD Output Channels) ................9 Wakeup/Sleep-Mode ....................9 Connection Plan ..................... -
Page 5: Properties
Intelligente Datenlogger CAN-Rx-Repeater Manual 1 Properties » 4x CAN FD channels for data logger » 4x CAN FD channels for vehicle bus » System starts after max. 5 ms » Voltage range: 7V … 30V » Temperature range: -40 °C ... +70 °C »... -
Page 6: Scope Of Delivery
Intelligente Datenlogger CAN-Rx-Repeater Manual 2 Scope of Delivery Before starting your first application, please check if everything listed here is included in the delivery. If any item is missing, please contact us. » CAN-Rx-Repeater » Connector kit X1-Input (power supply, CAN FD input for vehicle bus) with contacts »... -
Page 7: General
The CAN-Rx-Repeater is an accessory for the data logger series GL53xxx with CAN FD. It is used to extend the CAN FD bus from the entry point in the front of the vehicle (installation point of the CAN-Rx-Repeater) to e.g. the boot (installation point of the data logger). -
Page 8: Ports
Intelligente Datenlogger CAN-Rx-Repeater Manual 4 Ports Figure 1 X1-Input (Power Supply, CAN FD Input Channels) Figure 2 The X1-Input connector (male) has 12 contacts in two rows. The contact numbers are stamped onto the housing of the connector. Description Terminal 30 (V... -
Page 9: X2-Output (Can Fd Output Channels)
Table 2 5 Wakeup/Sleep-Mode The CAN-Rx-Repeater starts after turning it on (power on). It wakes up from sleep mode after receiving a message and enters to sleep mode if no messages were received for over 20 seconds. © G.i.N. GmbH, 2018... -
Page 10: Connection Plan
Intelligente Datenlogger CAN-Rx-Repeater Manual 6 Connection Plan Figure 4 - 10 - © G.i.N. GmbH, 2018... -
Page 11: Technical Data
CAN-Rx-Repeater Manual 7 Technical Data The data specified in this section must be adhered to at all times. Damage to the CAN-Rx-Repeater can otherwise occur, and this in turn can create conditions on the connected wires that are outside specified ranges (e.g. -
Page 12: Change History
Intelligente Datenlogger CAN-Rx-Repeater Manual 8 Change History Version Reference Description 05.2018 First version - 12 - © G.i.N. GmbH, 2018... -
Page 13: Declaration Of Conformity
Intelligente Datenlogger CAN-Rx-Repeater Manual 9 Declaration of Conformity © G.i.N. GmbH, 2018 - 13 -...
