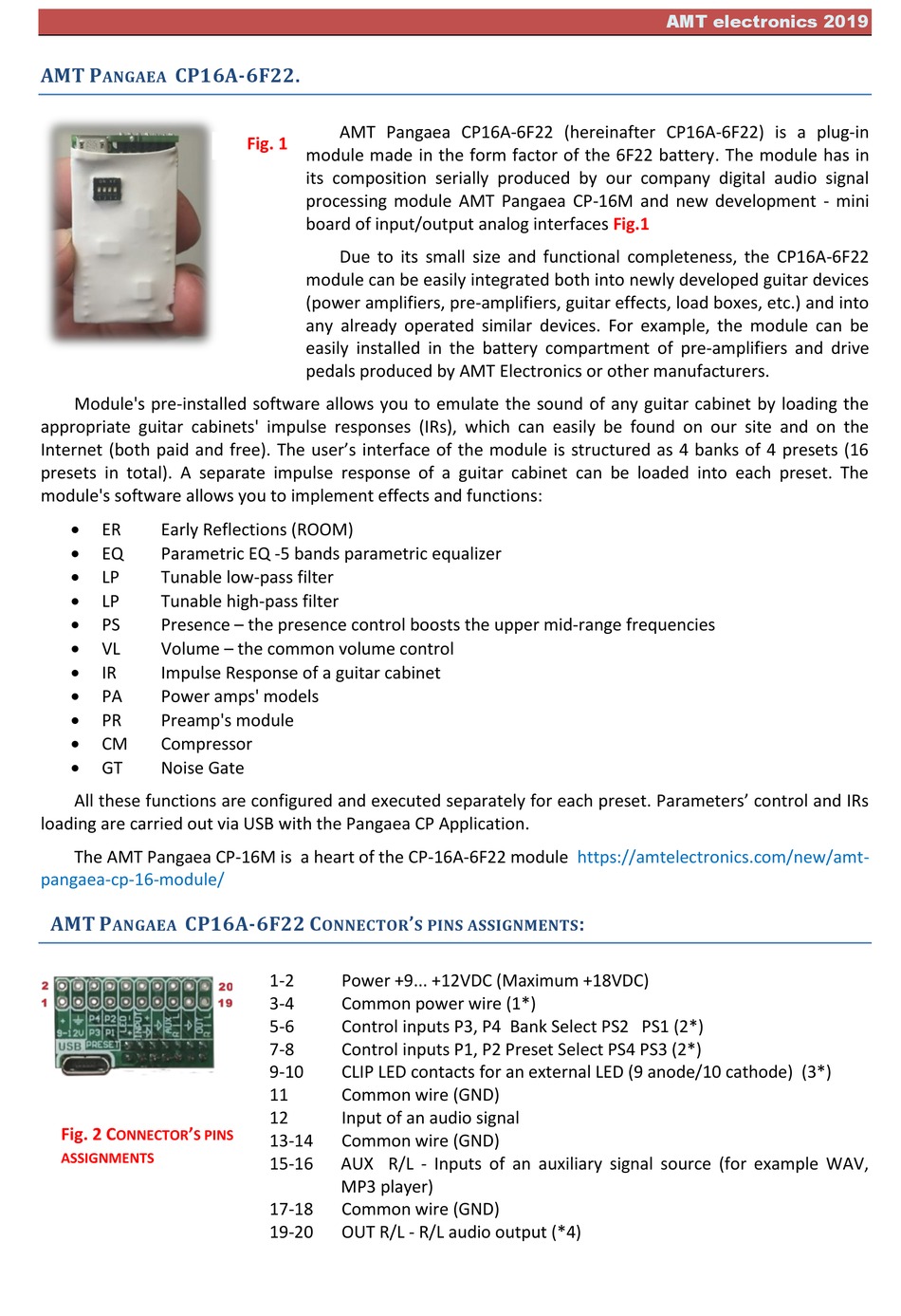

AMT Pangaea CP16A-6F22 Manual

AMT P CP16A-6F22.
ANGAEA
Module's pre-installed software allows you to emulate the sound of any guitar cabinet by loading the
appropriate guitar cabinets' impulse responses (IRs), which can easily be found on our site and on the
Internet (both paid and free). The user's interface of the module is structured as 4 banks of 4 presets (16
presets in total). A separate impulse response of a guitar cabinet can be loaded into each preset. The
module's software allows you to implement effects and functions:

ER Early Reflections (ROOM)

EQ Parametric EQ -5 bands parametric equalizer

LP Tunable low-pass filter

LP Tunable high-pass filter

PS Presence – the presence control boosts the upper mid-range frequencies

VL Volume – the common volume control

IR Impulse Response of a guitar cabinet

PA Power amps' models

PR Preamp's module

CM Compressor

GT Noise Gate
All these functions are configured and executed separately for each preset. Parameters' control and IRs
loading are carried out via USB with the Pangaea CP Application.
The AMT Pangaea CP-16M is a heart of the CP-16A-6F22 module
pangaea-cp-16-module/
AMT P CP16A-6F22 C
ANGAEA
Fig. 2 C '
ONNECTOR S PINS
ASSIGNMENTS
AMT Pangaea CP16A-6F22 (hereinafter CP16A-6F22) is a plug-in
Fig. 1
module made in the form factor of the 6F22 battery. The module has in
its composition serially produced by our company digital audio signal
processing module AMT Pangaea CP-16M and new development - mini
board of input/output analog interfaces
Due to its small size and functional completeness, the CP16A-6F22
module can be easily integrated both into newly developed guitar devices
(power amplifiers, pre-amplifiers, guitar effects, load boxes, etc.) and into
any already operated similar devices. For example, the module can be
easily installed in the battery compartment of pre-amplifiers and drive
pedals produced by AMT Electronics or other manufacturers.
'
ONNECTOR S PINS ASSIGNMENTS
1-2 Power +9... +12VDC (Maximum +18VDC)
3-4 Common power wire (1*)
5-6 Control inputs P3, P4 Bank Select PS2 PS1 (2*)
7-8 Control inputs P1, P2 Preset Select PS4 PS3 (2*)
9-10 CLIP LED contacts for an external LED (9 anode/10 cathode) (3*)
11 Common wire (GND)
12 Input of an audio signal
13-14 Common wire (GND)
15-16 AUX R/L - Inputs of an auxiliary signal source (for example WAV,
MP3 player)
17-18 Common wire (GND)
19-20 OUT R/L - R/L audio output (*4)
AMT electronics 2019
Fig.1
https://amtelectronics.com/new/amt-
:
