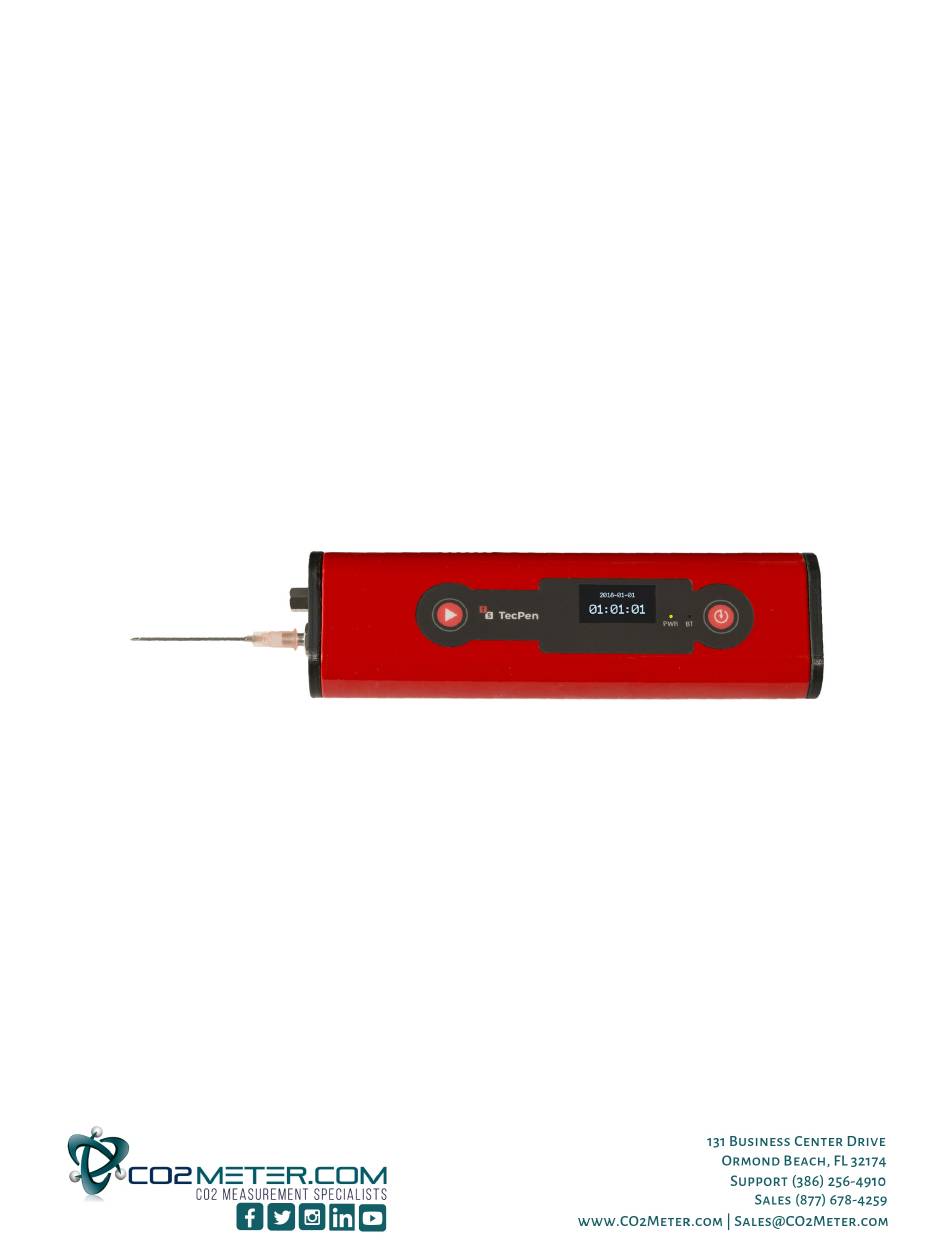

- Page 1 TecPen Handheld Oxygen Sensor User Manual...
-
Page 2: Table Of Contents
CONTENTS Safety and Security ...............................2 General Safety Instructions ..........................2 Warning Symbols ............................3 Introduction ................................4 Package Contents ..............................4 Layout & Controls ..............................5 Operation ................................6 Operating Principle ............................6 Before You Begin ............................6 Turning the TecPen On ..........................6 Taking a Measurement ..........................6 Turning the TecPen Off ..........................6 Saving Data ................................7 Default Operation ............................7 Customizing the Output Data File (Recipes) ....................7 Exporting Saved Data ...........................7 Menu Options ...............................8 Change Data File Format (Recipes) ......................8 Set Date and Time ............................8 View Measurement Data Display .........................8 View Device Status ............................8 Calibration ................................8 Display ..................................9 ... -
Page 3: Safety And Security
Check the device and cable regularly for damage. Do not put a damaged device into operation. Do not repair the device yourself, but visit an authorized specialist company. In order to avoid hazards, only have the defective device or power supply replaced or exchanged by the manufacturer or our customer service. Only use original accessories. The device must not be opened during operation. Never immerse the device in water or other liquids. The device must be kept out of the reach of children. Do not fill with solvents, alcohol or cleaning agents, you may damage the device. If the device is brought into a room with a large temperature difference to the environment, an acclimatization period of 1‐2 hours should be observed. Protect the device from dirt. Never store the cannula without protection. Be careful when using the cannula. Risk of injury! Never drop the appliance from a great height. The device is designed for the invasive measurement of closed containers. The object to be measured is subsequently damaged and must not be reused. This device may not be modified, neither in terms of its construction nor with regard to the safety devices without the express written consent of the manufacturer. CO2Meter is not liable for damage resulting from unauthorized modifications. The operator must obtain the opinion of the manufacturer in order to make any modifications. As manufacturers, they have the legal responsibility for all these measures. Accordingly, the original manufacturer is released from his liability for any modifications made without express written consent. 2 ... -
Page 4: Warning Symbols
Warning Symbols Warnings used throughout this document can be classified according to the extent of a hazardous situation. The classification is based on an assumption as to how probable the occurrence of a hazardous situation is and what consequences are associated with it. There are four classes of warnings. DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor injury. CAUTION indicates a situation which, if not avoided, may result in machinery damage. This symbol draws your attention to important, useful and helpful information. 3 ... -
Page 5: Introduction
Introduction The TecPen Handheld 0‐5% Oxygen Sensor is designed to provide fast, accurate measurements of oxygen content in closed or pierceable containers. It uses an optical gas sensor with LED display as well as Bluetooth and USB connectivity. This makes it an excellent tool for: Food packaging in protective gas atmosphere (MAP packaging) Headspace of vials, cell breeding vessels, infusion containers, syringes Micro‐bioreactor systems Package Contents Quantity Item Part number 1 TecPen 1 Belt Bag 2 Particulate Filters Ts R1 Hh 001 2 Cannula 25/0.8 TS R1 HH 008 1 USB Cable TS R1 HH 003 1 USB Protection Cover TS R1 HH 004 1 USB Flash Drive 1 Instruction Manual 12 Septum ... -
Page 6: Layout & Controls
Layout & Controls Start Button OLED Display PWR (Power) LED BT (Bluetooth) LED Memory Button On/Off Button USB Port Sampling Gas Inlet (Cannula) Gas Outlet 5 ... -
Page 7: Operation
Operation Operating Principle The principle of opto‐chemical oxygen detection using TecPen is based on the change in emission of fluorescent radiation from the fluorescent dye depending on the oxygen concentration. The dye is excited and the resulting fluorescence event is absorbed. The duration of this fluorescence event ‐ the so‐called lifetime ‐ depends on the amount of adsorbed oxygen in the sensor layer and can therefore be used to determine the oxygen concentration. Before You Begin Before taking a measurement, the hose and filter must be attached to the instrument to prevent contamination of the gas chamber. To do this, place the hose on the gas inlet (8) and fasten the filter on the other side of the hose. The cannula is then placed on the front of the filter. Watch Your Step! The back of the filter has a luer lock closure. This must be turned into the intended connection of the hose for proper installation. Mount the cannula with the protective cap on to avoid risk of injury. Turning the TecPen On Press the On/Off button to turn on the unit. The TecPen shows the battery status and an oxygen value of 0.00%. This is a placeholder and not an actual measurement result. The unit can be switched off by pressing the On/Off button for at least two seconds. Taking a Measurement The cannula is used to puncture the packaging to be measured. After inserting the cannula briefly press the start button to to take a measurement. The measurement is automatically terminated after 10 seconds. If the measuring time needs to be extended after the first measurement has been completed press the start button again. Watch your After the final measurement is completed put the protective cap on the cannula to avoid injury. Turning the TecPen Off The unit can be switched off by pressing the On/Off button for at least two seconds. 6 ... -
Page 8: Saving Data
1. Press the On/Off button to turn on the unit. 2. Hold the memory button for 2 seconds to access the menu. 3. Press the memory button to switch to the date and time screen. 4. Tap the memory button to scroll down or the start button to scroll up to select a recipe. 5. Press the memory button for 2 seconds to confirm and save the setting. 6. The screen automatically switches to the desired measuring mode. You can now press the start button to to take a measurement and the memory key to save a data point as normal. Exporting Saved Data All data files can be exported via USB: 1. Connect the TecPen to a PC using the supplied USB cable. 2. Copy the files from the TecPen using your PC’s file manager. 3. Remove the TecPen USB device following the operating system instructions. Watch Your S tep! Before unplugging the USB cable the TecPen must be ejected properly like any other standard USB device to avoid damaging the TecPen’s internal file system. If the TecPen is unplugged from the USB port without first selecting the “Safely Remove Hardware and Eject Media” option all data still on the device will be irretrievably lost. 7 ... -
Page 9: Menu Options
for 2 seconds to access the menu. 2. Press the memory button to switch to the View Data Display screen. 3. Press the memory button for 2 seconds to confirm and save the setting. View Device Status 1. Hold the memory button for 2 seconds to access the menu. 2. Press the memory button to switch to the View Device Status screen. 3. Press the memory button for 2 seconds to confirm and save the setting. Calibration The TecPen uses pure nitrogen gas for zero point calibration. 1. In order to adjust the zero point, a gas volume with overflow must be pierced and the TecPen purged with nitrogen. 2. Press and hold the start button and the memory button are alternately until the pump is activated 3. A screen will appear with the text "Recalibration 0%?" followed by "NO". 4. Briefly press the start button to switch between "YES" and "NO". 5. If "NO" is selected, the operation is aborted by pressing and holding the memory key . 6. If "YES" is selected, let the unit calibrate for at least 5 minutes. 7. Press and hold the memory key to confirm. ... -
Page 10: Display
Watch your step! Calibration may only be carried out with class 5.0 or purer nitrogen or the quality of the oxygen measurement results cannot be g uaranteed. Watch your step! After zero‐point calibration the original calibration values are overwritten. If the calibration has not been carried out correctly, the original values can only be restored by CO2Meter support. While calibration can be carried out by the user, adjusting the zero‐point may only be carried out by CO2Meter Service. Display Screen 1 battery level main screen measured value Temporary: Memory/Log Indicator Indicator for current measurement Screen 2 Consecutive / internal number product name, EAN recipe administration code Screen 3 date time Date & Time Screen 4 amplitude life temperature measurement data display Screen 5 serial number info screen device status code Additional screen Zero point Selection option YES / NO adjustment 9 ... -
Page 11: Maintenance
Maintenance Cleaning The unit can be cleaned externally with isopropanol and a fine, soft cloth. Never immerse the device in water or other liquids. Do not clean the unit with ultrasonic cleaner. Do not fill with solvents, alcohol or cleaning agents, they may damage the device. ISO Certification The instrument must be returned annually to the manufacturer for recalibration in accordance with ISO:9000 certification. Fault Diagnosis Codes 0. normal operation 1. UART buffer overrun 2. Temperature sensor error 3. Not specified 4. SD card not recognized Watch your s tep! If the TecPen displays one of the error codes above during operation turn off the device and contact the manufacturer immediately. 10 ... -
Page 12: Specifications
Specifications TS System TecPen Measuring range 0.0‐5.0% Precision Range 0.0‐0.5% +/‐ 0.01% Range 0.5‐1.0% +/‐0.03% +/‐0.05% <150ms 10 bar ‐10°C / +50°C Gaseous, no solvents Battery, charged via USB USB and BT4.0 via Android < 5ml Yes, 10 to 30°C N/A On request No organic solvents70% ethanol Needle stainless steel St.1.4404 IP54 Support The quickest way to obtain technical support is via email. Please include a clear, concise definition of the problem and any relevant troubleshooting information or steps taken so far, so we can duplicate the ...
