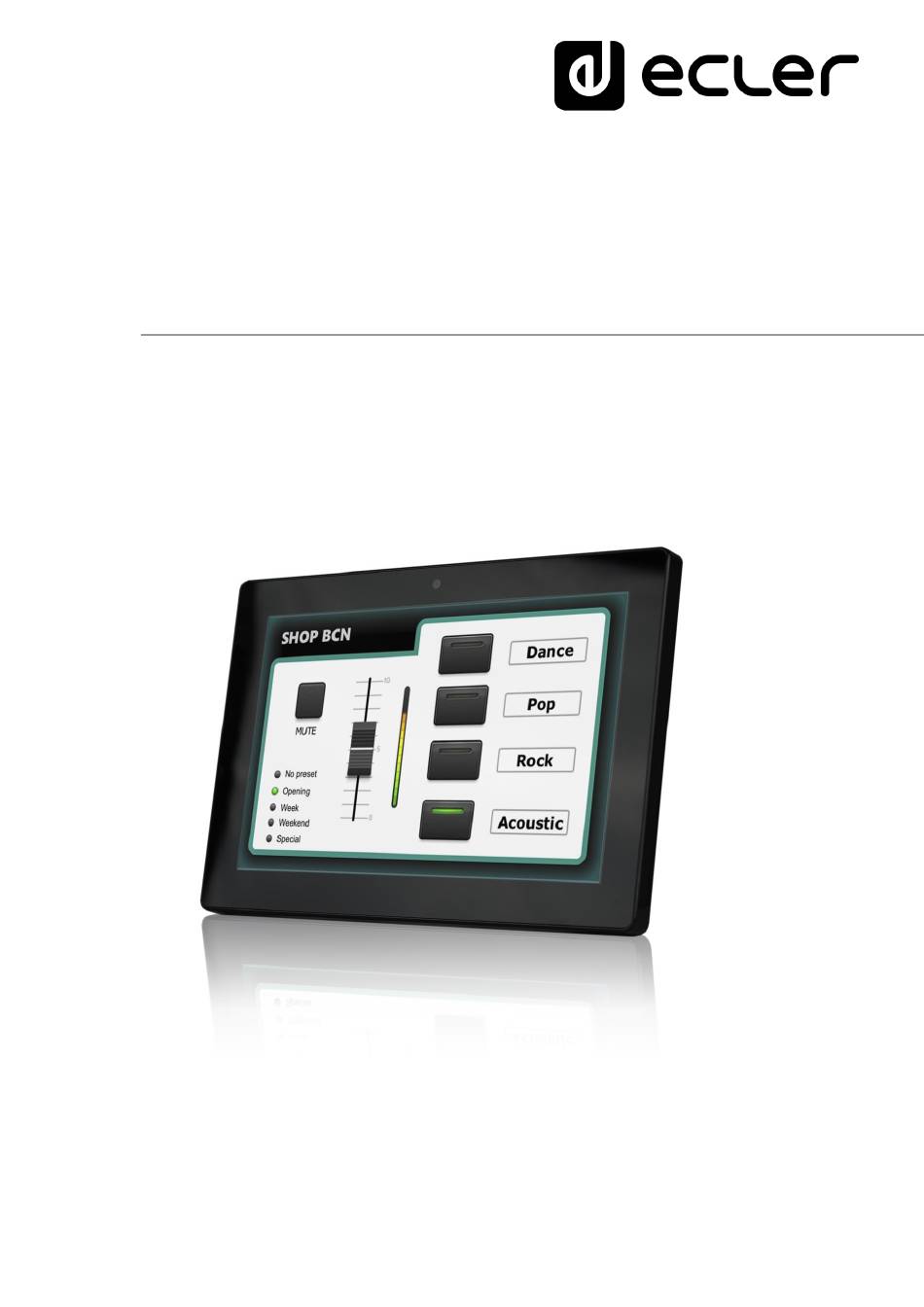

  • Page 1 WPNETTOUCH DIGITAL CONTROL EclerNet Control Touch-Screen USER MANUAL...

  • Page 2: Table Of Contents

    INDEX IMPORTANT REMARK ......................3 IMPORTANT SAFETY INSTRUCTIONS ................3 IMPORTANT NOTE ........................ 5 INTRODUCTION ........................5 4.1. Main features ..........................5 INSTALLATION AND CONNECTIONS ................6 5.1. Installation ............................ 6 5.2. Connections ..........................7 OPERATION ..........................7 LOCAL CONFIGURATION OF THE UNIT ................9 7.1.

  • Page 3: Important Remark

    1. IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
  • Page 4 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong.

  • Page 5: Important Note

    Refer to the EclerNet Manager Application manual for more information. The EclerNet Manager application is available for download at www.ecler.com. The WPNETTOUCH is suitable for wall mount installation using the included VESA 75 bracket, or any other VESA75 compatible bracket or stand.

  • Page 6: Installation And Connections

    5. INSTALLATION AND CONNECTIONS 5.1. Installation WPNETTOUCH is suitable for surface and desktop mount:  Surface mount: a VESA75 wall mount bracket is included with the product. It is composed of two parts: the metal plate that must be assembled to the back panel of the WPNETOTUCH unit, with the 4 included screws, and the metal plate that must be assembled to the wall or surface.

  • Page 7: Connections

    5.2. Connections WPNETTOUCH has 2 connectors available for the EclerNet operation. Both are located behind the rear panel connections plastic cover, fixed to the WPNETTOUCH unit back panel with 2 screws: DC Power: round jack for connection to the universal power supply provided ...
  • Page 8 Devices with Android operating system (tablets, smartphones), running Ecler UCP v2 app Devices with Apple iOS (iPad, iPhone, etc.), running Ecler UCP v2 app  Any of them can recover and operate UCPs pointing to the web server's IP address.

  • Page 9: Local Configuration Of The Unit

    7. LOCAL CONFIGURATION OF THE UNIT WPNETTOUCH settings and configuration menus can be accessed locally. from the touch screen of the device itself. The same settings are remotely accessible when the screen is under the control of a remote computer running the EclerNet Manager application.

  • Page 10: Screen Configuration Menu

    7.1. Screen Configuration menu This menu allows setting different parameters affecting the displayed items and controls on the screen of the unit:  Display mode: behavior of the screen dimming in sleep state, after 10 seconds of user inactivity on the touch screen. The available modes are: ON (always lit), DIMMED and OFF (unlit) ...
  • Page 11  Show Panel OSD Buttons: enables/disables the superimposed display of the navigation buttons in the corners of the displayed UCPs. The top corner buttons can scroll the panel pages (left and right) and the bottom corner buttons access the icon bar: Note: even when the buttons are not displayed, they can still be active, so that pressing the top corners activates the horizontal scrolling between the panel...

  • Page 12: Device Configuration Menu

    7.2. Device Configuration menu This menu allows adjusting the following parameters of the unit:  Device Name: name of the device, as seen from other WPNETTOUCH / WPmSCREEN devices, as well as from the EclerNet Manager application Device Password: password for the protection of the device against the editing ...

  • Page 13: Network Configuration Menu

    From EclerNet Manager, you can release the devices controlled by  the computer through the creation of a new project (File -> New Project), or by disconnecting them from the network one by one (right mouse button -> Disconnect) From a WPNETTOUCH / WPmSCREEN, you can release the ...

  • Page 14: Information / Tools Menu

    7.4. Information / Tools menu This menu displays the following information:  Server IP Address: IP address of the UCP server device that the unit is connected to, as a UCP client. When the unit is connected to itself as a client, it will show its own IP address (= Local IP Address) ...
  • Page 15 And the following restore / reboot options: Project Defaults: clears the project in memory, replacing it with a blank project,  after warning that the process is irreversible:  Factory Defaults: clears the entire configuration and all data in the unit, restoring the factory default settings, after warning that the process is irreversible: ...

  • Page 16: Connection To A Ucp Server

    8. CONNECTION TO A UCP SERVER From the home screen of the unit, the connection icon on the upper side of the screen will give access to the Connection page: This page allows deciding the UCP server the unit will connect to as a client. The UCP server may be a computer, a MIMO4040DN matrix (yes, it has an embedded UCP server in its engine!) another WPNETTOUCH / WPmSCREEN unit or even the same WPNETTOUCH unit.
  • Page 17 It is possible to directly enter the IP address of the server device, using the touch keyboard displayed on the screen, or to select a device from a list of automatically detected server devices, which is accessed by clicking on the grey button with the list icon to the right of the "Connect"...

  • Page 18: Package Contents

    9. PACKAGE CONTENTS  WPNETTOUCH  External PSU, universal, multi AC plug  Wall mount VESA75 bracket + screws set + security screw + tool Desktop mount stick-shape support   Quick User Guide and Warranty Card 10. FUNCTION LIST 1.

  • Page 19: Function Diagram

    11. FUNCTION DIAGRAM...

  • Page 20: Technical Features

    12. TECHNICAL FEATURES System RK3128 quad core processor, clocked 1.6G Screen Size 10,1” IPS Resolution 1280x800 Contrast ratio 1300 Brightness 300cdm2 Screen scale / Display area 16:9 / 218x135mm Backlight Touch-panel Capacitive multi-touch Network & Connectivity Ethernet Supports PoE Ethernet port Ethernet Base-Tx 10/100Mb / 1GB CAT5e or better up to 100m.
