PDQ Smart Quick Start Manual

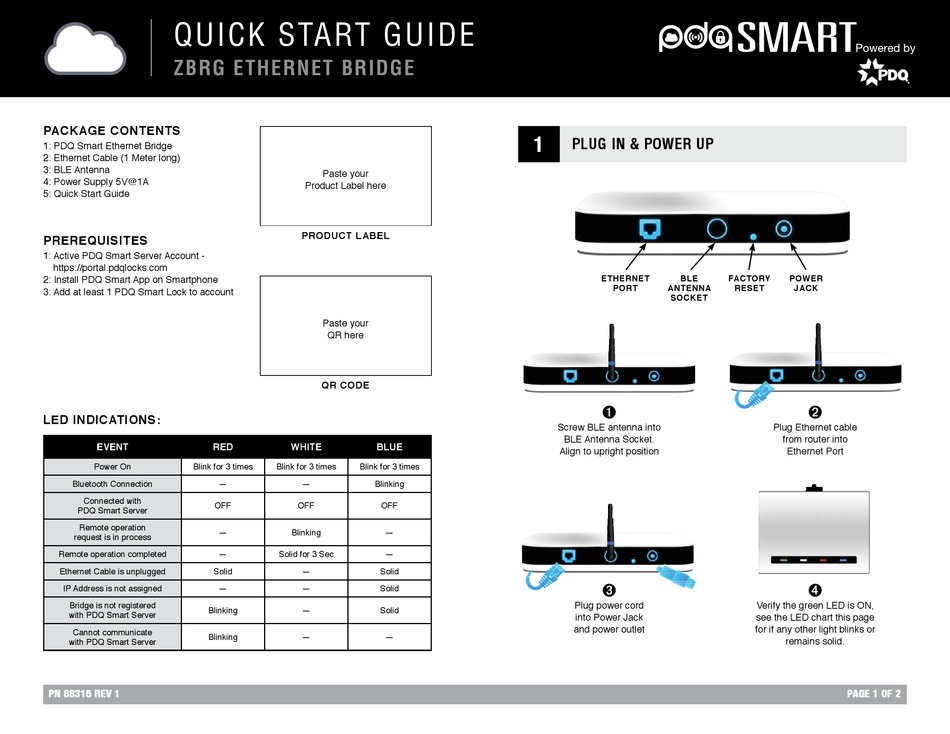

QUICK START GUIDE
ZBRG ETHERNET BRIDGE
PACKAGE CONTENTS
1: PDQ Smart Ethernet Bridge
2: Ethernet Cable (1 Meter long)
3: BLE Antenna
4: Power Supply 5V@1A
5: Quick Start Guide
PREREQUISITES
1: Active PDQ Smart Server Account -
https://portal.pdqlocks.com
2: Install PDQ Smart App on Smartphone
3: Add at least 1 PDQ Smart Lock to account
LED INDICATIONS:
EVENT RED
Power On Blink for 3 times
Bluetooth Connection —
Connected with
OFF
PDQ Smart Server
Remote operation
—
request is in process
Remote operation completed —
Ethernet Cable is unplugged Solid
IP Address is not assigned —
Bridge is not registered
Blinking
with PDQ Smart Server
Cannot communicate
Blinking
with PDQ Smart Server
PN 88315 REV 1
Paste your
Product Label here
PRODUCT LABEL
Paste your
QR here
QR CODE
WHITE BLUE
Blink for 3 times Blink for 3 times
— Blinking
OFF OFF
Blinking —
Solid for 3 Sec —
— Solid
— Solid
— Solid
— —
1
PLUG IN & POWER UP
ETHERNET BLE
PORT ANTENNA
SOCKET
1
Screw BLE antenna into
BLE Antenna Socket.
Align to upright position
3
Plug power cord
into Power Jack
and power outlet
FACTORY POWER
RESET JACK
2
Plug Ethernet cable
from router into
Ethernet Port
4
Verify the green LED is ON,
see the LED chart this page
for if any other light blinks or
remains solid.
PAGE 1 OF 2
